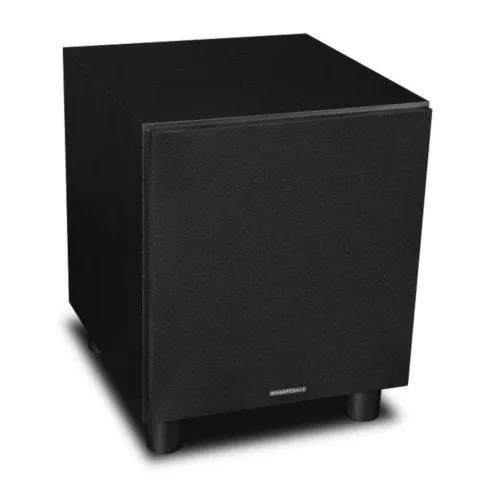

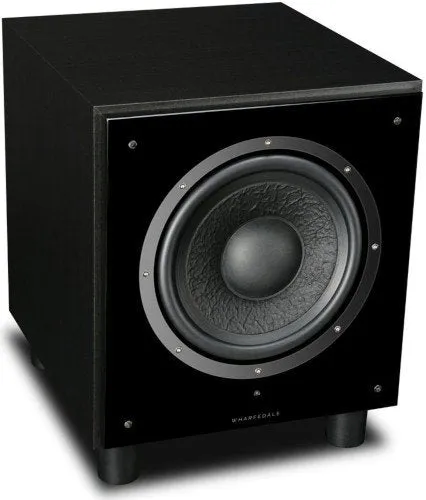

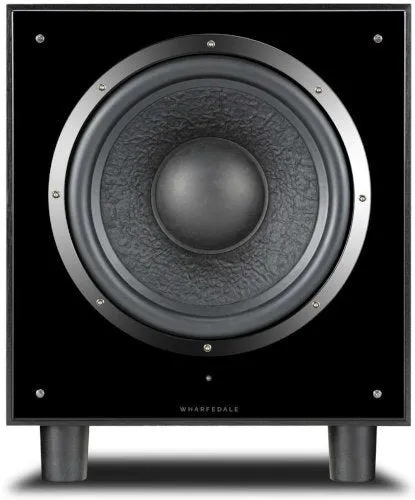

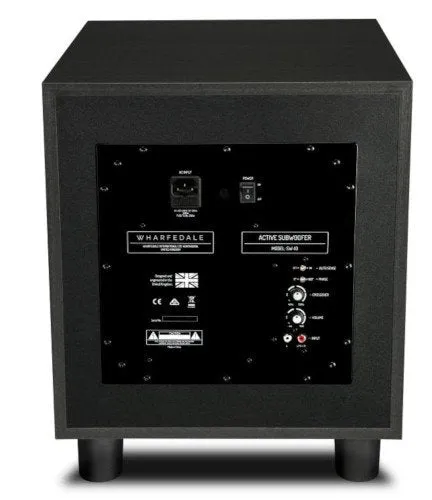

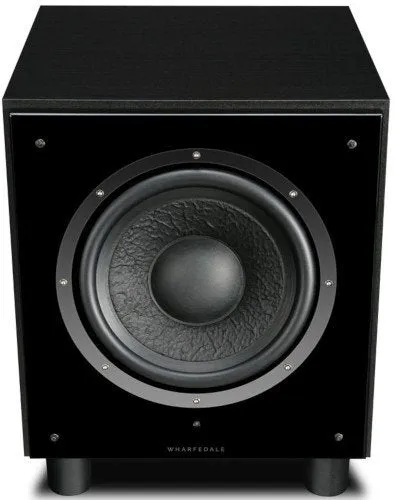

Wharfedale SW10 Subwoofer, part of the subwoofer series, they offer a level of performance that is previously unheard of. With revolutionary drive units, filter stages and amplifier modules which are featured on every model. They strike the perfect balance between power and sound quality. They offer a remarkable sound pressure to all levels. Making sure that they are retaining enough control to be considered a quality audiophile.

The SW Subwoofer brings new features. They come with non-pressed paper cones for increasing the self-damping, improved transient impact and intern increased the structural, rigidity of the cone itself. The centre vents are copper lined to reduce the magnetic distortion and improve the heat dissipation.

Audiophile Quality

The perfect balance between power and sound, it brings control to the quality that an audiophile can bring.

Non-pressed Paper Cone

These paper cones increase the self-damping, giving it an improved impact and structural rigidity of the cone. The Center vents are copper lined to reduce the magnetic distortion and improve the heat dissipation.

Great Aesthetics

With well-engineered power amplifiers, the SW subwoofers are optimised for high impact at low frequencies and give an ideal for movies or music.

Specifications

Drive Units       1 x (10") 250mm cone long-throw

Frequency Response   40 - 120Hz ±3dB

Amplifier Power Output            200W

Peak Power Output       350W

Line Input Sensitivity   200mv for maximum output

Crossover Range          30 - 150Hz

Inputs  Stereo Line In (2 x RCA Phono)

Mono (LFE) Line In (RCA Phono)

Input Impedance         Line Input 10kΩ

LFE 5kΩ

Signal-to-noise ratio (S/N)        ≥85dB

Avg. Max Output @1m 110dB

Features          Phase inversion, Auto on-off

Dimensions      Height: (358 58)mm(with feet)

Width: 336mm

Depth: (366 15)mm

Net weight       15kg

Accessories     IEC power cord
