Universal POE Ethernet Switch IP Phone Home Router 4 2 Ports RJ45 250M Wireless AP Enterprise Networking CCTV Security IP camera
The 4 2 port desktop Ethernet switch provides non-blocking, wire-speed switching for your 10/100 megabit network.

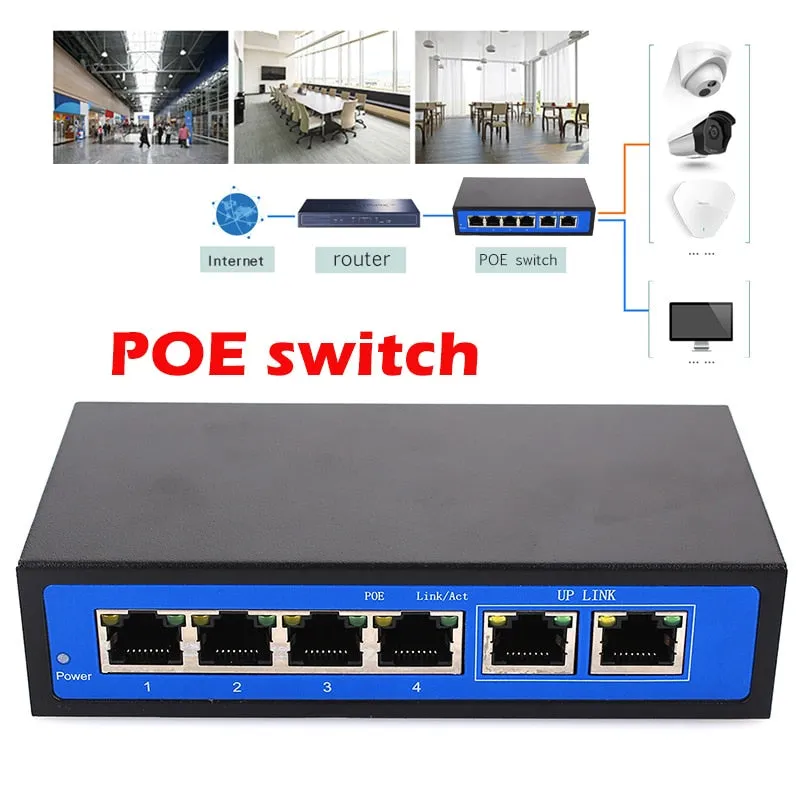

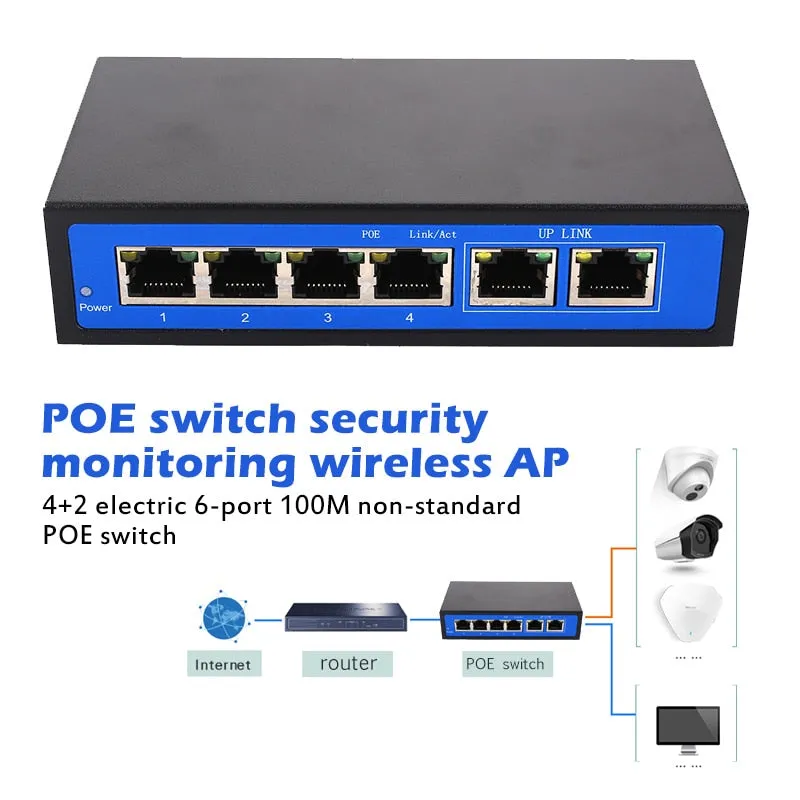

Widely used in wireless AP, IP phone, camera, wireless bridge, alarm, network hard disk player, monitor display, wireless router, network print server, etc.
The Ethernet Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of users increase continuously.
Applicable for: small and medium-sized office networks, Every port has independent bandwidth.
It not only can realize the data transmission function of common switches but also can supply power to network terminals at the same time.
Colour: Black
Transmission rate: 10Mbps, 100Mbps
POE port: 1-4 ports support IEEE 802.3af (15.4W) network power supply
POE port output power: 15.4W/30W IEEE802.3af/at
POE transmission wire core: 4/5 , 7/8- pairs

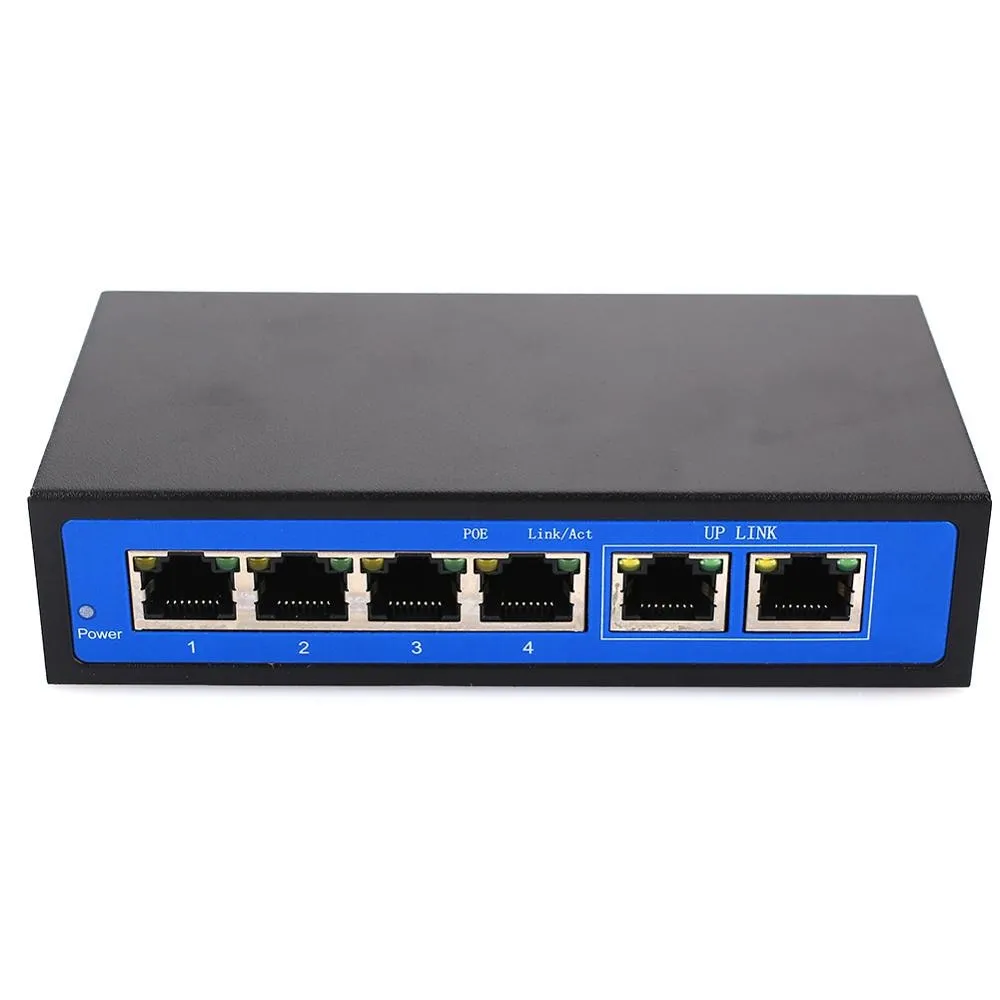

Port description: 4 x Fast Ethernet ports; 2 Fast Ethernet ports
POE connection standard: IEEE802.3af/IEEE802.3at
Backplane bandwidth: 1.2Gbps
POE power transmission distance: ≤ 250 meters
POE type: end bridging method
Network standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
Network Media: Category 5 and above unshielded twisted pair
Network signal distance transmission: ≤ 120 meters
Forwarding method: store and forward
Forwarding rate: 10Base-T: 14880PPS/port, 100Base-TX: 14880PPS/port
MAC address: 2KMAC
Port functions: power supply priority mechanism, fast and forward, MAC automatic learning and aging, IEEE802.3X full-duplex flow control, and Backpressure half-duplex flow control
Indicators: 1 x Link/Act and POE per port, 1 x Power indicator per device
Total power consumption: 70W

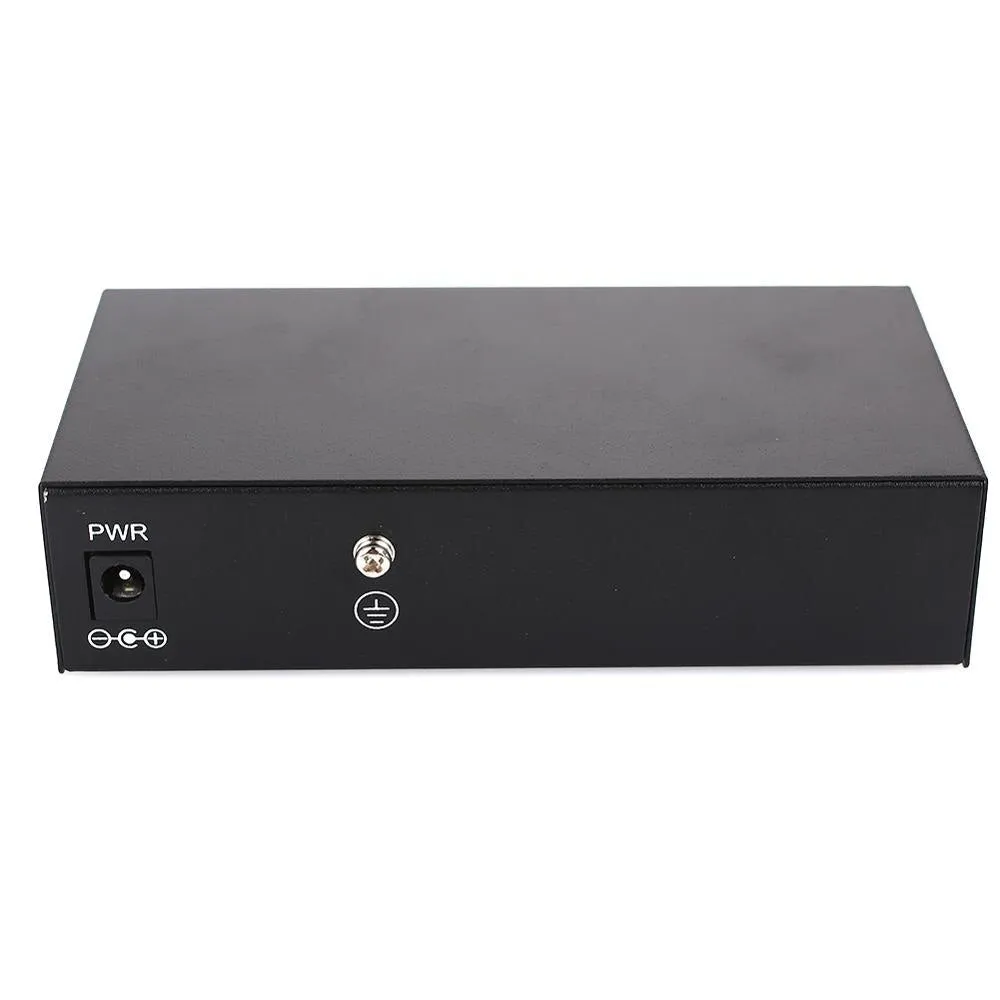

Applicable: Can adapt to 12V, 15V, 18V, 24V, 36V, 48V power supply
Uses: Used for wireless AP, IP phone, camera, wireless bridge, alarm, network hard disk player, monitor display, wireless router, network print server, etc.
Working temperature: 0 °C ~ 40 °C
Storage temperature: -40°C～70°C
Operating Humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 90% RH (non-condensing)

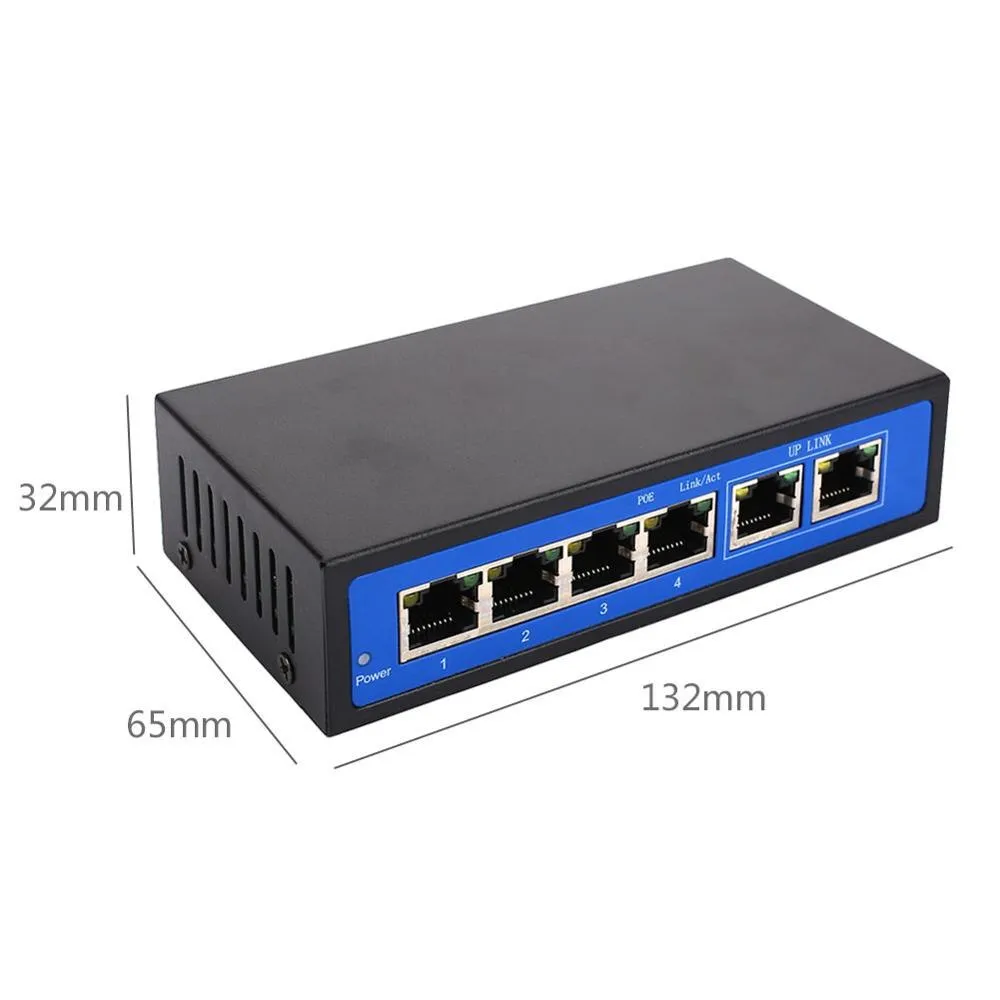

Size: 132*65*32mm
Packing list:
1 X 4 2 POE Switch Video Surveillance Switch
