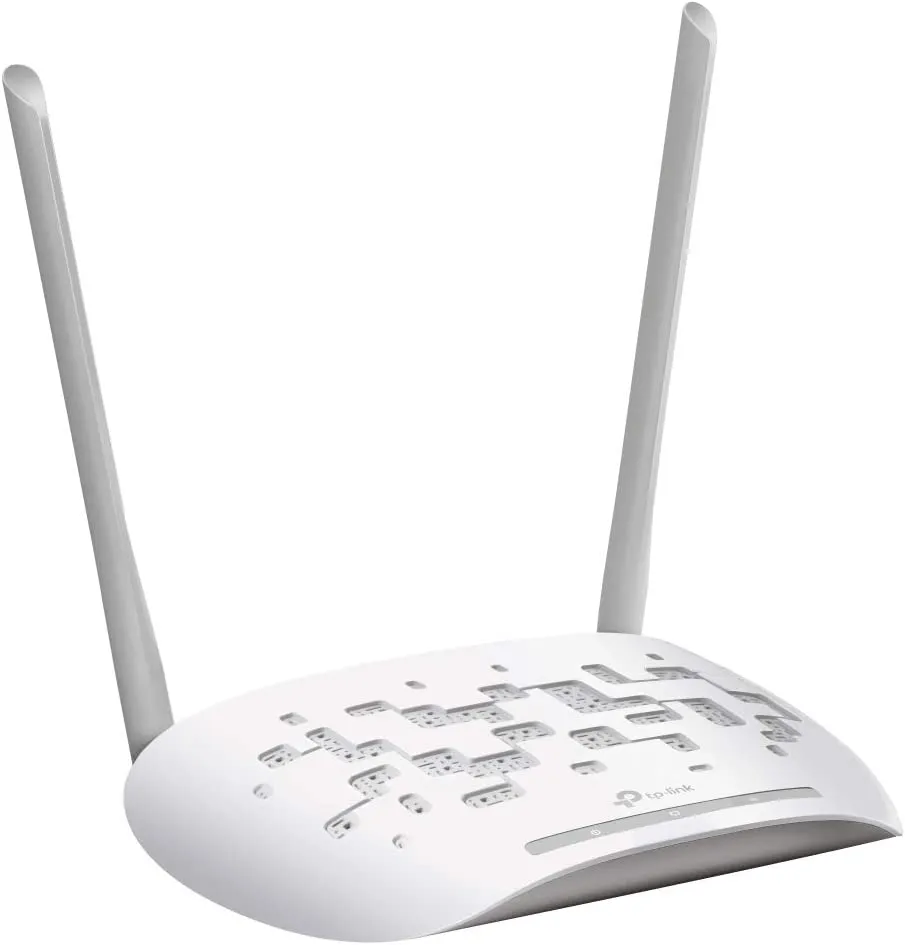

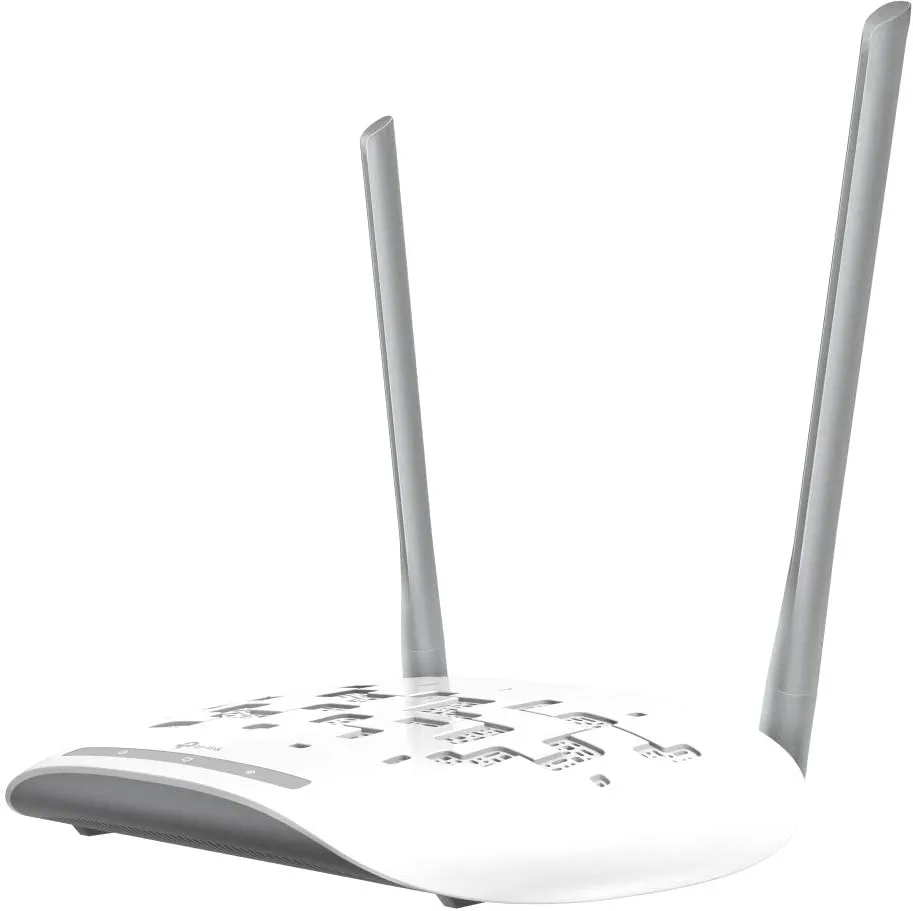

The TP-Link TL-WA801N is a top-of-the-line Wireless N Access Point with a speed of 2.4 GHz 300Mbps and fixed antennas. It supports multi-mode, repeater, multi-SSID, client, and bridge with AP, making it a suitable solution for large-scale enterprise networking.
- 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
- Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
- Protects your home network with WPA2 encryption and makes quick connection with the push of a button
- Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector
Specifications
Primary Function: Access Point
Bands: N/A
Max Wireless Transfer Rate: 300 Mbps
Max Wired Transfer Rate: 10/100 Mbps
Interface(s)
1 x 10/100M Ethernet Port(RJ45)
Support Passive PoE
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna: 2 Fixed Omni-Directional Antennas

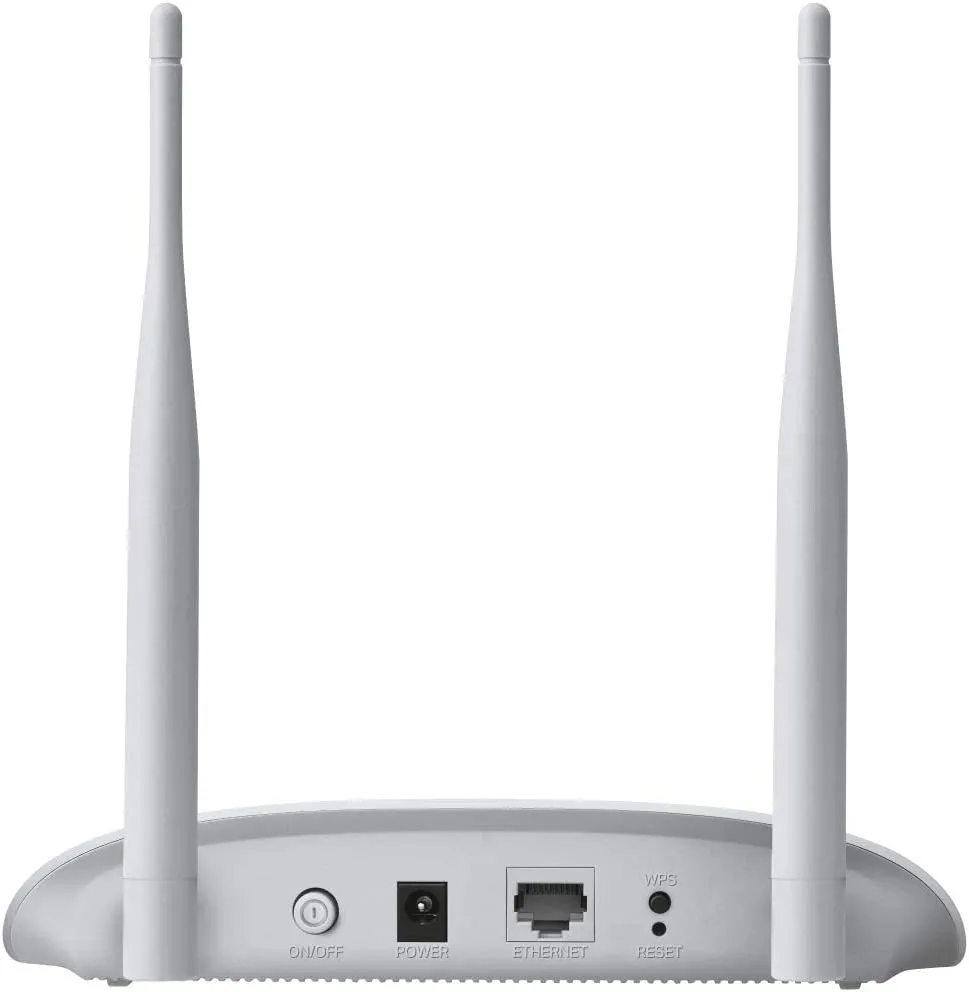

Button(s): Power On/Off, WPS, Reset
Power Supply: 9VDC / 0.6A
Dimensions: 181.6 x 129.5 x 36.2 mm
Weatherproof: No
Frequency: 2.4 GHz
Reception Sensitivity
11g 6Mbps: -90dBm
11g 54Mbps: -77dBm
11n HT20 MC7: -73dBm
11n HT40 MC7: -70dBm
Wireless Modes
AP Mode
Multi-SSID Mode
Client Mode
Range Extender Mode
Wireless Functions
Enable/Disable Wireless Radio, WMM, Short GI, AP
Isolation, Wireless Statistics, Throughput Monitor
Wireless Security: WEP, WPA/WPA2, WPA/WPA2-PSK encryptions
Quality of Service: WMM
Management: SNMP
Advanced Functions: Up to 30 meters Passive PoE is supported
Environment (°C)
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
Package Contents
Wireless Access Point TL-WA801N
Power Adapter
Passive PoE Power Injector
RJ45 Ethernet Cable
Quick Installation Guide
