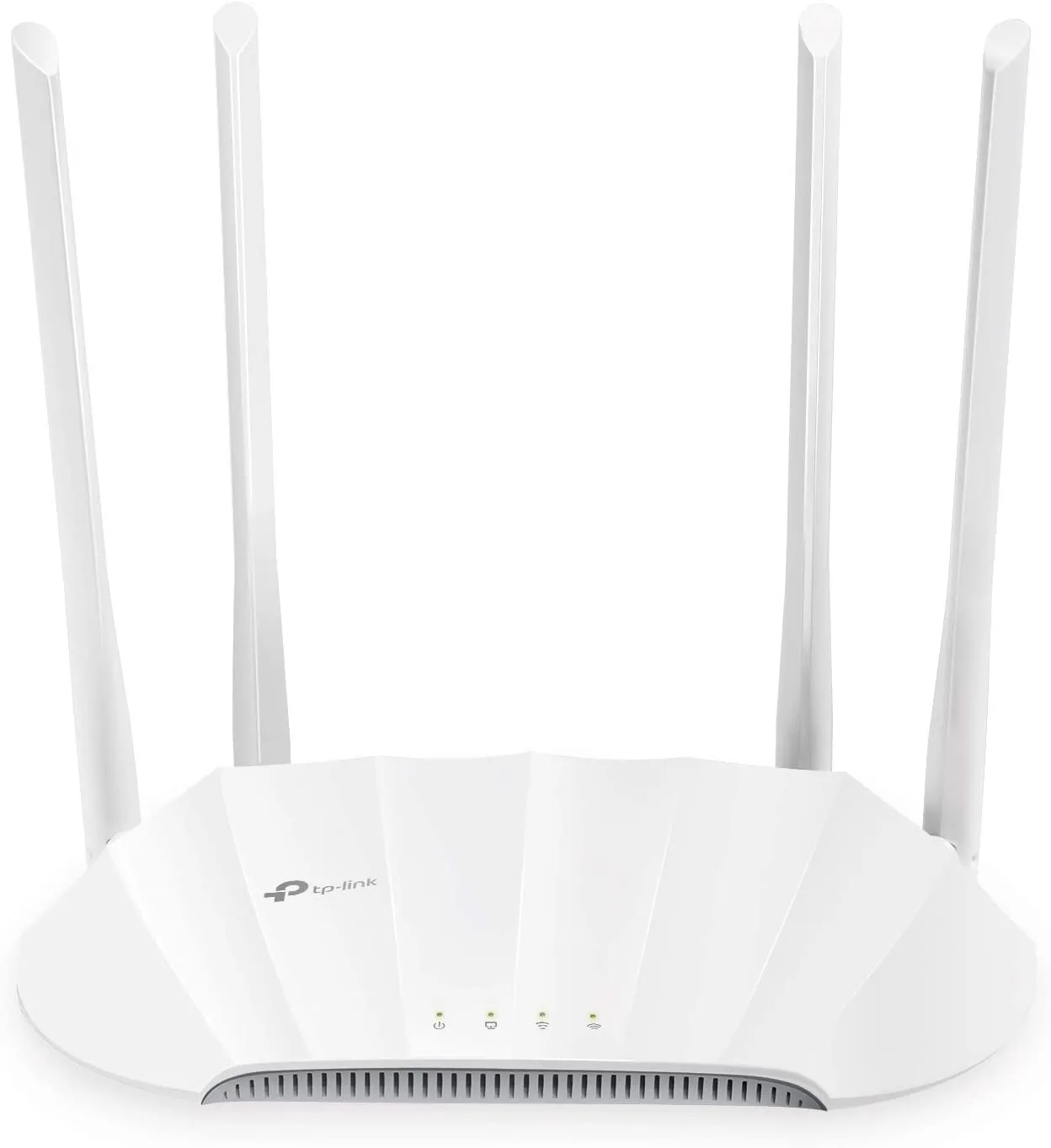

The TP-LINK TL-WA1201 AC1200 delivers high-speed dual-band connectivity with 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz. MU-MIMO technology and Gigabit Ethernet port ensure smooth streaming and reliable connection, while the range extender and Multi-SSID modes allow for flexible network setup. Perfect for small businesses.

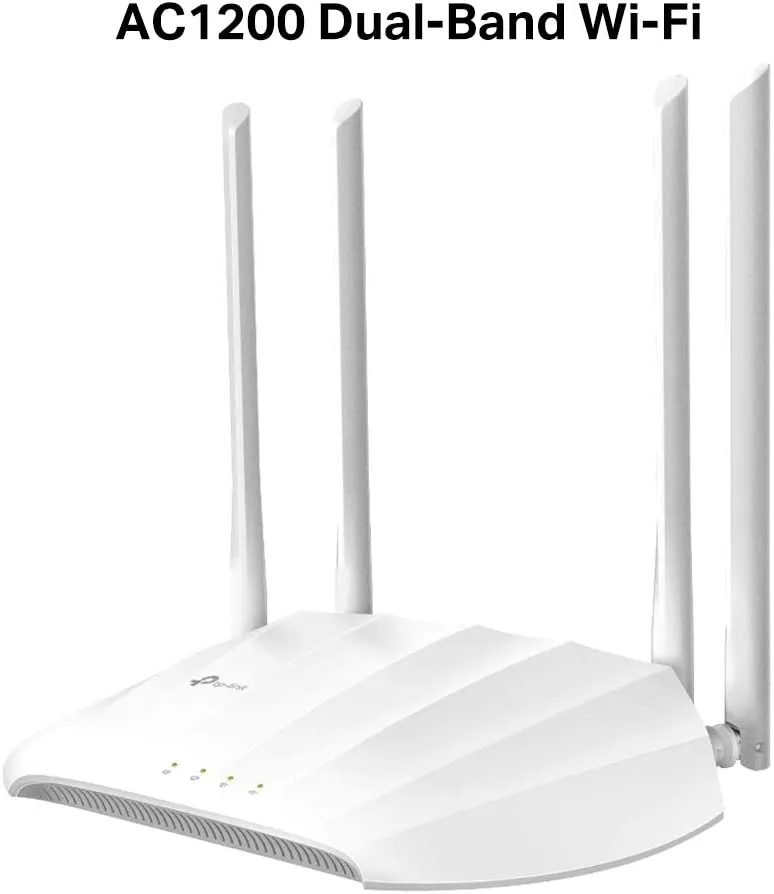

• AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.

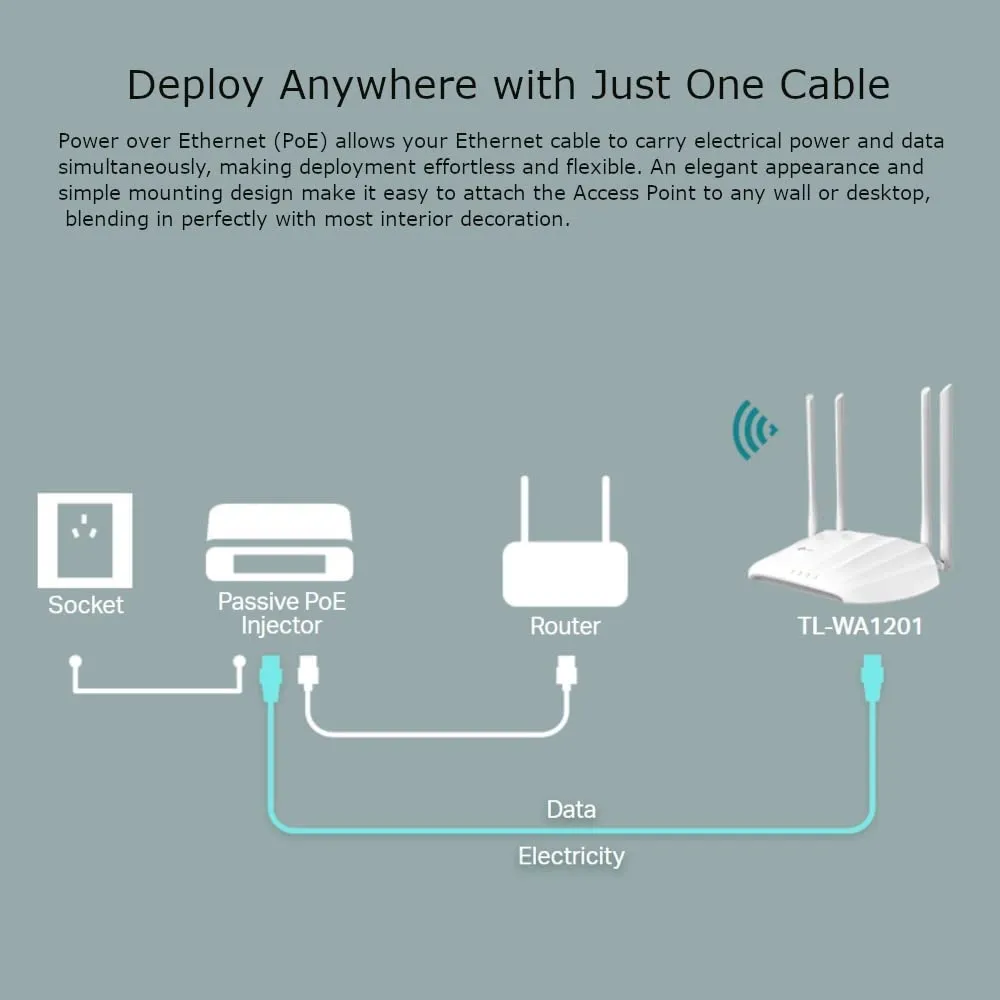

• Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
• Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
• MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
• Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
• Captive Portal – Offers a designed portal page for heightened security and marketing.

Specifications

Primary Function: Access Point

Bands: Dual Band

Max Wireless Transfer Rate: 867 Mbps

Max Wired Transfer Rate: 10/100/1000 Mbps

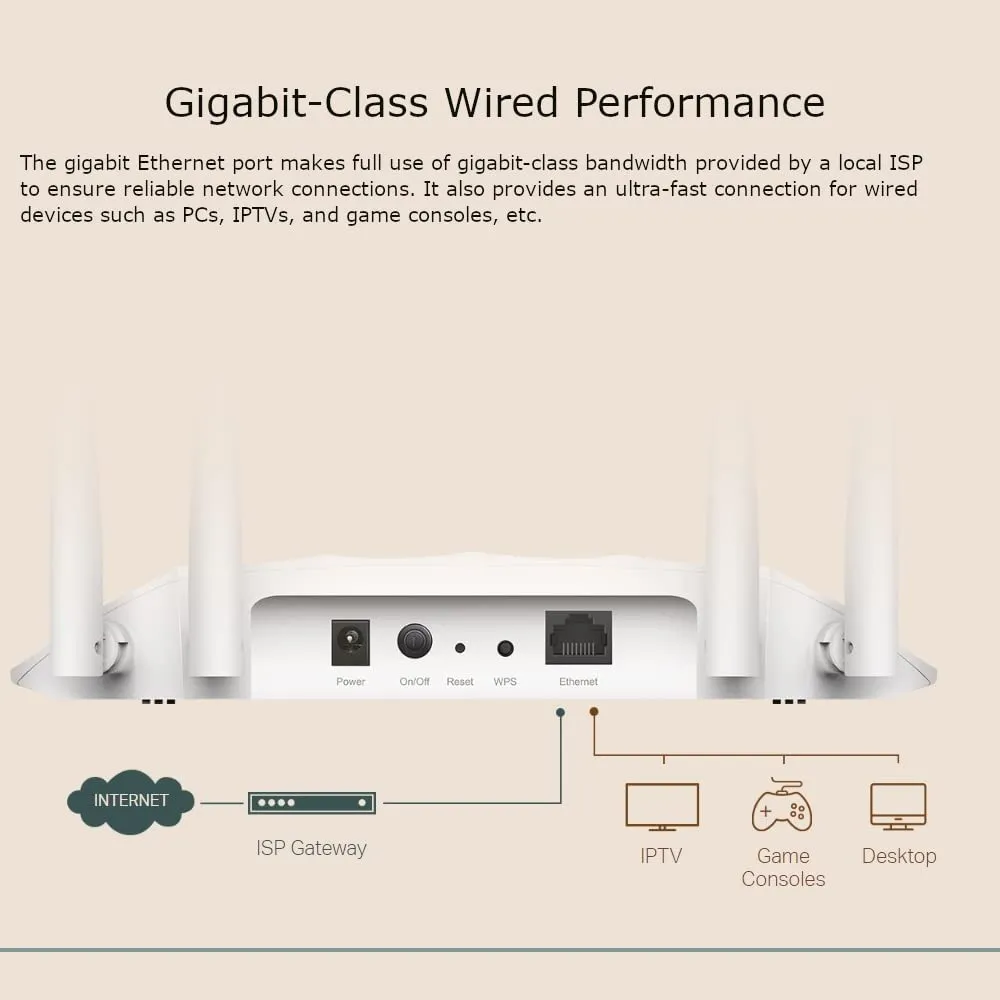

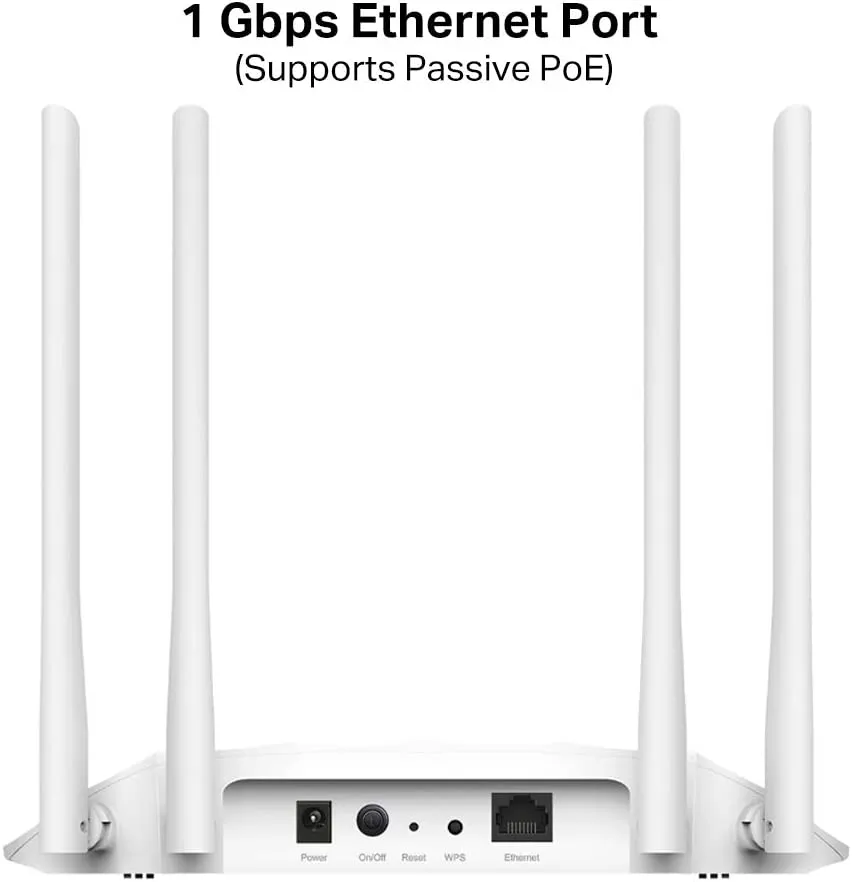

Interface(s): 1 x 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)

Wireless Standards: IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz

Antenna: 4 x Fixed High Performance Antennas

Button(s): Power On/Off Button, WPS Button, Reset Button

Power Supply: 12V/1.5A

Dimensions: 400 x 255 x 72 mm

Weatherproof: No

Frequency: 2.4 GHz and 5 GHz

Reception Sensitivity
5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Wireless Modes: Access Point, Range Extender, Client, Multi-SSID

Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

DHCP: Yes

Quality of Service: WMM

Advanced Functions: Captive Portal

Environment (°C)
Operating Temperature: 0°C~40°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents
Wireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
