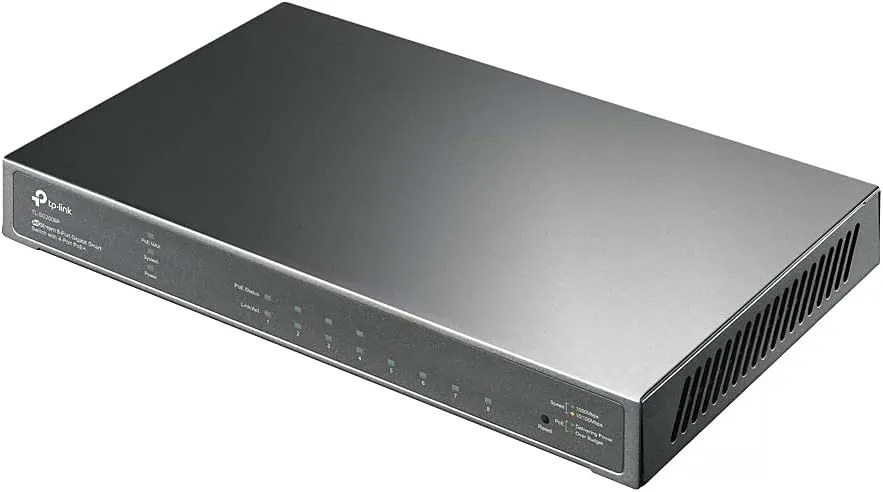

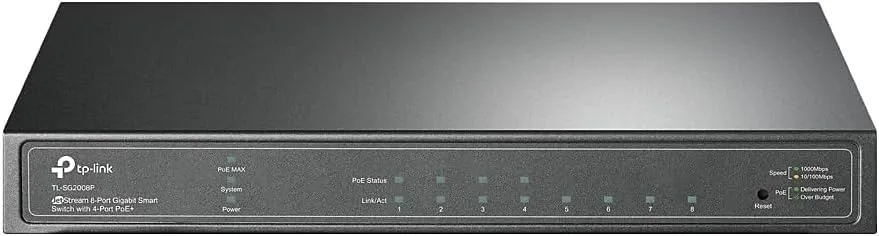

TL-SG2008P JetStream 8-port Gigabit Switch (4-port PoE )
- 62 W PoE Budget : 4 802.3at/af compliant PoE ports for a total power supply of 62 W*.
- Full Gigabit Ports : 4 Gigabit PoE ports and 4 Gigabit non-PoE ports provide high-speed connectivity.
- Integrated into Omada SDN : zero-touch provisioning**, centralized cloud management and smart monitoring.
- Centralized Management : Cloud access and Omada app provide super convenience and easy management.
- Powerful security policies : IP-MAC-port binding, ACL, port security, DoS defense, storm control, DHCP snooping, 802.1X, Radius authentication, etc.
- Optimized voice and video applications : L2/L3/L4 QoS and IGMP snooping.
| HARDWARE SPECIFICATIONS | |
|---|---|
| standards and protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1 x |
| Connection interface |

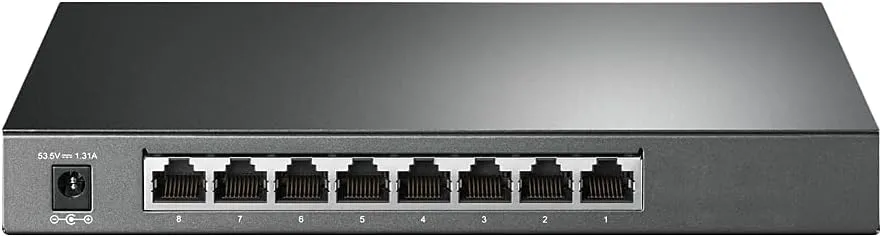

• 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE ) • Auto-Negotiation/Auto MDI/MDIX |
| Network cable |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Number of fans | Fanless |
| power supply | • External Power Adapter (Output: 53.5 VDC/ 1.31 A) |
| PoE port (RJ45) |
• Standard: 802.3af/at compliant • PoE Ports: 4 Ports • Power Supply: 62 W* |
| Dimensions (length x width x height) | 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
| Maximum power consumption |
• V1: 69.7 W (220 V/50 Hz) (with 62 W PD connected); 7.9 W (220 V/50 Hz) (no PD connected) • V2: 73.8 W (220 V/50 Hz) (with 62 W PD connected) • V3: 77.3 W (110 V/60 Hz) (with 62 W PD connected) |
| Maximum heat dissipation |
• V1: 237.82 BTU/hr (220 V/50 Hz) (with 62 W PD connected); 26.95 BTU/hr (220 V/50 Hz) (no PD connected) • V2: 251.84 BTU/hr (220 V/50 Hz) (with 62 W PD connected) • V3: 263.6 BTU/hr (110 V/60 Hz) (with 62 W PD connected) |
| PRODUCT PERFORMANCE | |
|---|---|
| Bandwidth/Backplane | 16 Gbps |
| MAC address table | 8k |
| packet buffer memory | 4.1 Mbit |
| jumbo frame | 9 KB |
| SOFTWARE SPECIFICATIONS | |
|---|---|
| Traffic management (QoS) |
• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow-based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2 functions |
• DHCP Relay - DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| L2 multicast |
• 511 IPv4, IPv6 shared multicast groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config • Multicast VLAN Registration (MVR) • Multicast Filtering • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config • Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced functions |
• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| Support IPv6 |
• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| VLAN |
• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List (ACL) |
• Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| safety |
• AAA • 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/ Port/MAC-based access control |
| MIBs |
• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP -Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT FUNCTIONS | |
|---|---|
| Omada App |
Yes, through • Omada Cloud-Based Controller (Not Supported by TL-SG2008P v2) • OC300 • OC200 • Omada Software Controller |
| Centralized management |
• Omada Cloud-Based Controller (Not Supported by TL-SG2008P v2) • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud access |
Yes, through • Omada Cloud-Based Controller (Not Supported by TL-SG2008P v2) • OC300 • OC200 • Omada Software Controller |
| Zero contact supervision | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2008P v1, v3 and above, while is not supported by TL-SG2008P v2) |
| Management functions |
• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHER SPECIFICATIONS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents |
• TL-SG2008P • Power Adapter • Installation Guide • Rubber Feet |
| system requirement | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90 %RH non-condensing |
