Product Details
＋

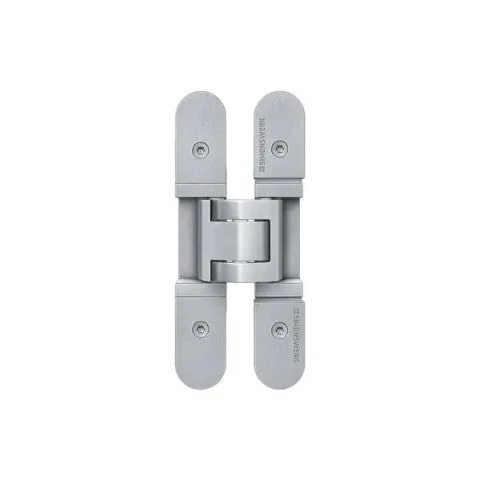

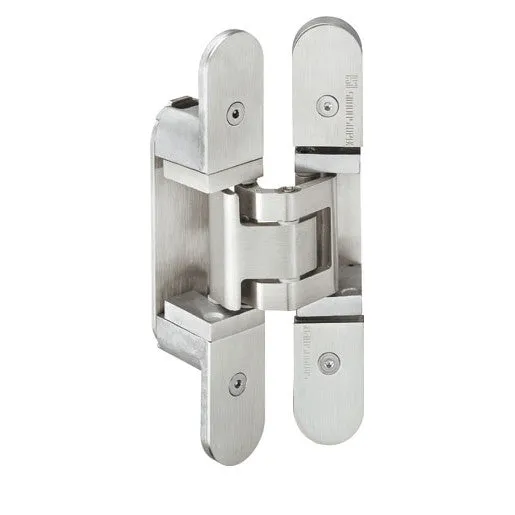

TECTUS TE 526 3D Concealed Hinge
The SIMONSWERK TECTUS TE 526 3D concealed hinge is UL listed for 3 hours with a high corrosion resistance, the TE 526 is ideal for wood, steel or aluminum doors, and frames exposed to the elements.
Features
- 180° opening angle without pinching or damage during opening and closing
- For doors up to 264 lbs with 2 hinges installed
- EASILY adjustable in 3-Dimensions
- Maintenance-free slide bearings
- UL Listed for 3 hour fire door
- For wood, metal, or casing frame installation
- Fire Resistance, Smoke Resistance, Soundproof, Forced Entry Resistance, High Corrosion Resistance
Specifications
- Minimum door thickness:1-3/8"
-

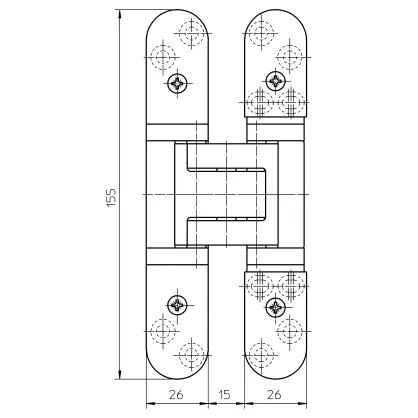

Height: 6.1" [155mm]
-
Width: Frame & Leaf: 1.02" [26mm]
-

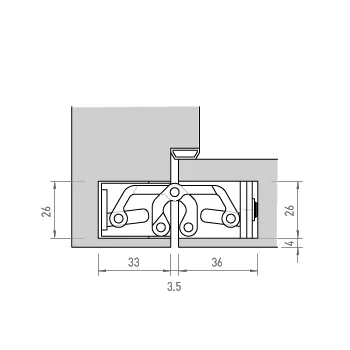

Depth: Frame: 1.3" [33mm] & Leaf: 1.48" [37.5mm]
Material
- This is a made to order, non-stock item. Orders are non-cancellable and non-returnable. Please review the details to ensure you are ordering the correct hardware.
Finish:
- Polished Stainless Steel finish has a lead time of 8 weeks
- Rustic Umber finish has a lead time of 12 weeks
More Information
*Use with routing template
*UL Listed: 3-HOURS. For more, go to
Use hinge to provide power and data to door leaf
For a thorough step-by-step installation of these hinges, check out this article on This Is Carpentry :
-

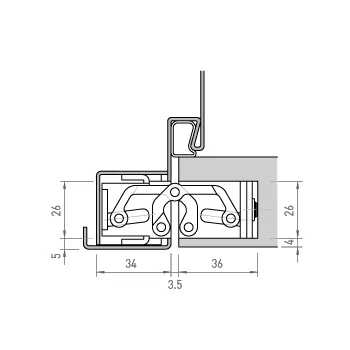

For TE 526 3D installation in steel frames you will need:
One (1) Receiver per hinge

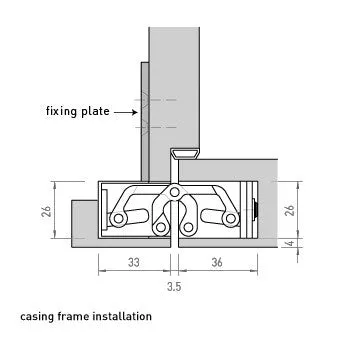

- For TE 526 3D installation in casing frames you will need:
One (1) Fixing Plate per hinge
