TECTUS® TE 240 3D Concealed Hinge

TECTUS enables the optimal integration of flush doors in straight line and flush surfaces for contemporary clean designs.

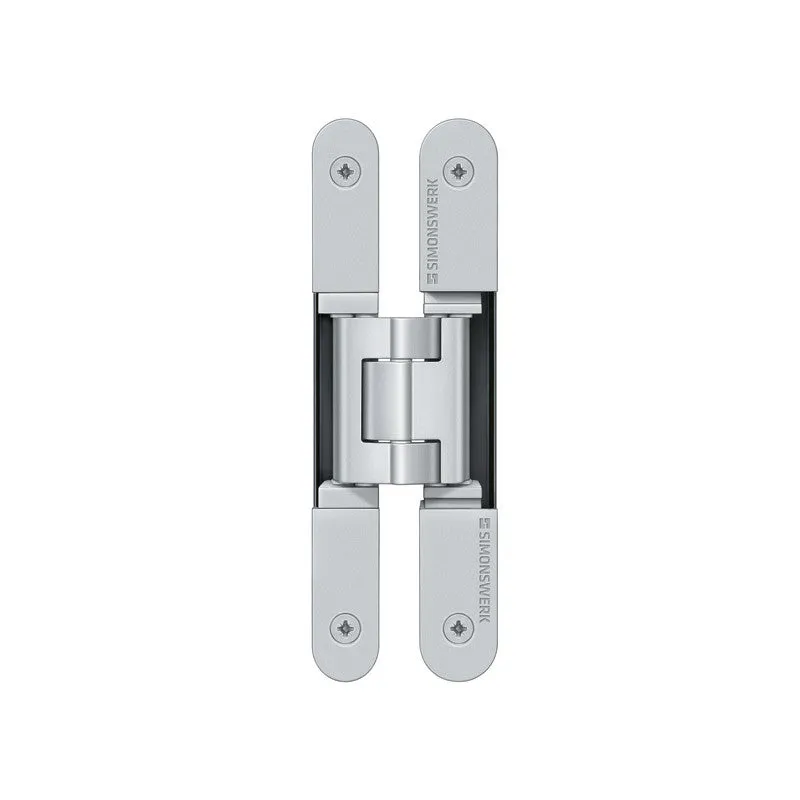

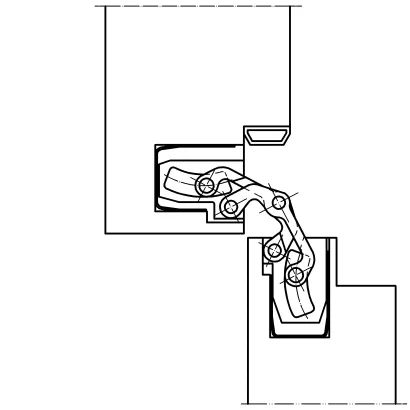

The SIMONSWERK TECTUS TE 240 3D concealed hinge is completely hidden for flush doors with wood, steel or aluminum doors and frames.

The three-dimensional adjustability and maintenance-free slide bearing technology of the TE 240 3D hinge system is for use with high-quality residential doors.

Features

For flush residential doors
180° opening angle without pinching or damage during opening and closing
For doors up to 132 lbs with 2 hinges installed
EASILY adjustable in 3-Dimensions
Maintenance-free slide bearings
For wood, metal, or casing frame installation

Specifications

Minimum door thickness: 1"

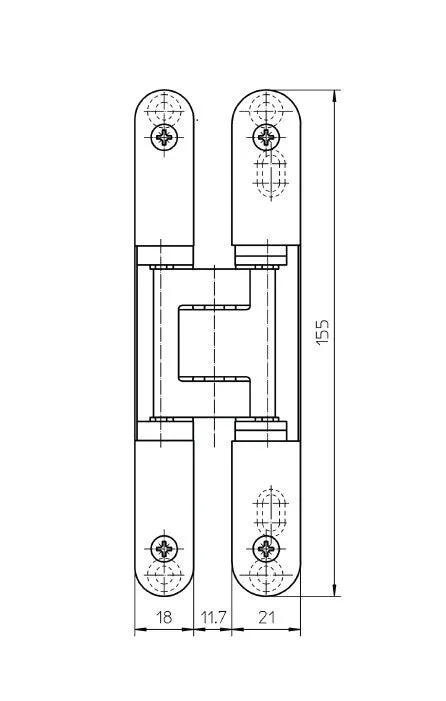

Height: 6.1" [155mm]
Width: Frame: .827" [21mm] & Leaf: .709" [18mm]

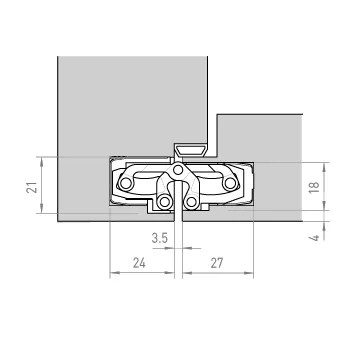

Depth: Frame: .945" [24mm] & Leaf: 1.06" [27mm]

Lead Time

We strive to keep a healthy inventory of this model, please call to check on current stock levels if you require this product quickly. Standard lead time is approximately 2-3 weeks.

Special Order Finishes

Expect additional lead time of 3-6 weeks for: Bronze, Light Bronze, Dark Bronze.

**The following finishes are non-cancellable and non-returnable: Satin Brass, Polished Chrome, Polished Brass and Specialized Bronze Finishes. Please review the details to ensure you are ordering the correct hardware.

1-888-636-1627

More Information

*Need Installation Tools? Find it here: , , with routing templates

().

Available with power and data transfer, see

For a thorough step-by-step installation of these hinges, check out this article on This Is Carpentry:

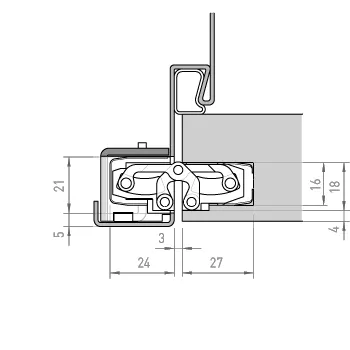

For TE 240 3D installation in steel frames you will need:
One (1) Receiver per hinge

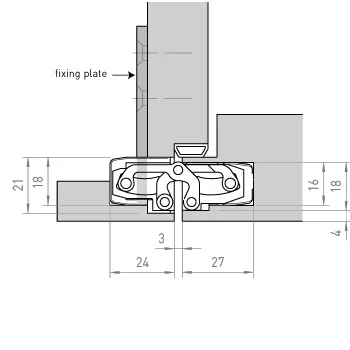

For TE 240 3D installation in casing frames you will need:
One (1) Fixing Plate per hinge

Don't need a concealed hinge and tired of butt hinges? Take a look at these ! Be sure to learn more about .

Also referred to as: Hafele 924.18.904, 924.18.921, , 924.18.922
