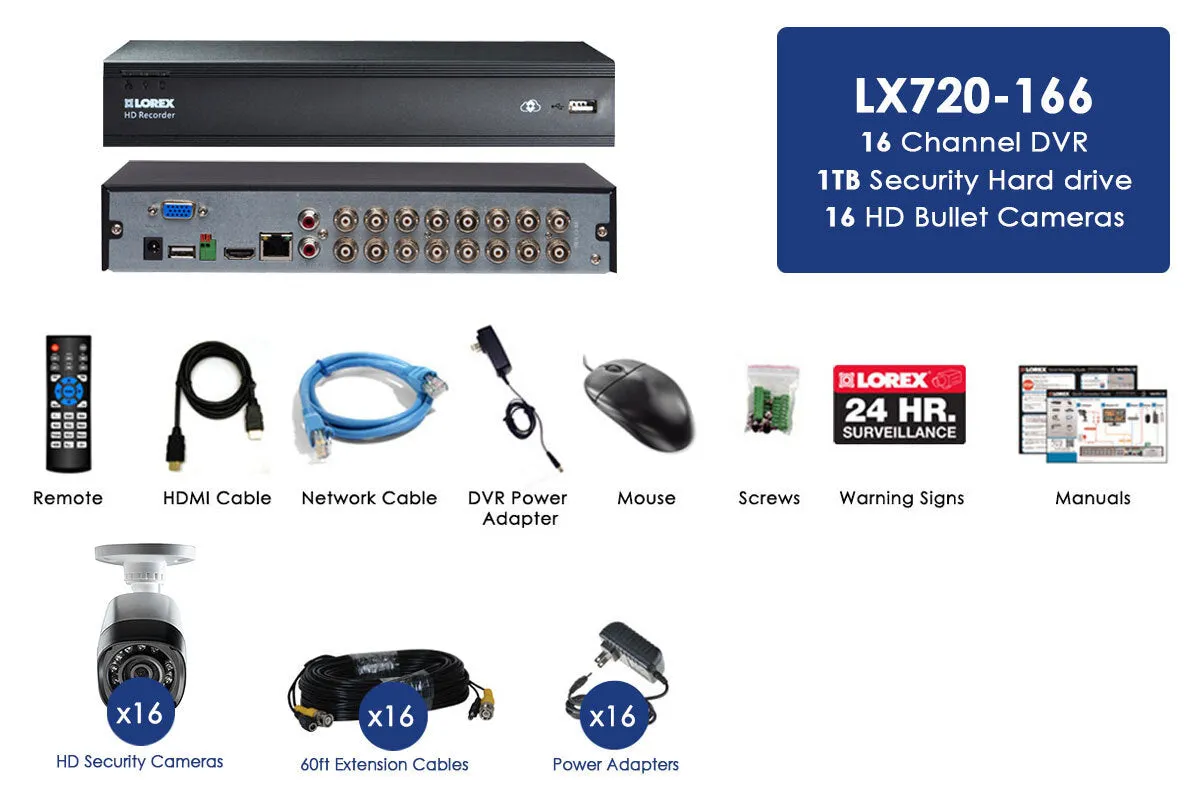

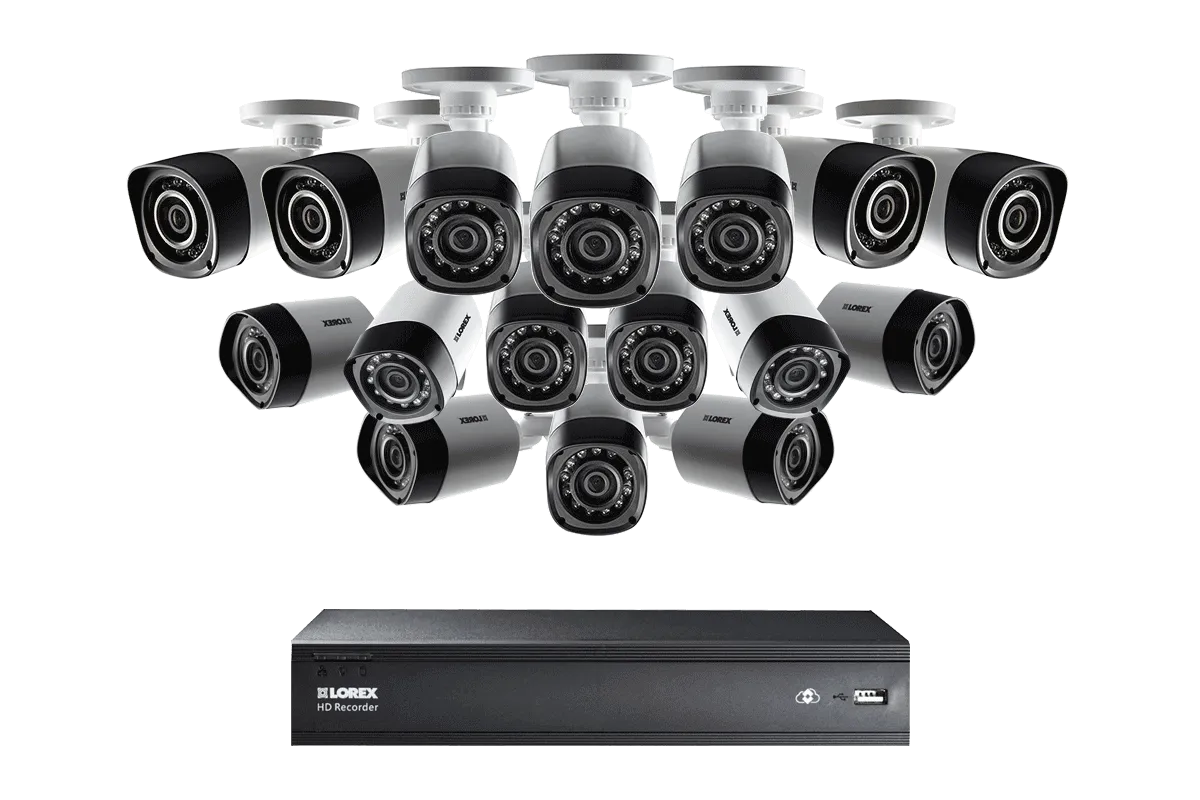

Experience the gold standard in 720p HD analog surveillance monitoring with this exclusive Lorex security system. Featuring our renowned sixteen-channel LHV0000 HD digital video recorder (DVR) and sixteen 720p high definition security cameras, the LX720-166 security system has what it takes to protect the things that matter most.
LX720-166
SPECIFICATIONS
16
CHANNELS
720P DVR can support up to 16 cameras
16
CAMERAS
16 HD 720p security cameras
130FT
NIGHT VISION
Maximum night vision
1TB
HARD DRIVE
Maximum capacity 1 x 4TB hard drive
720p HD security monitoring

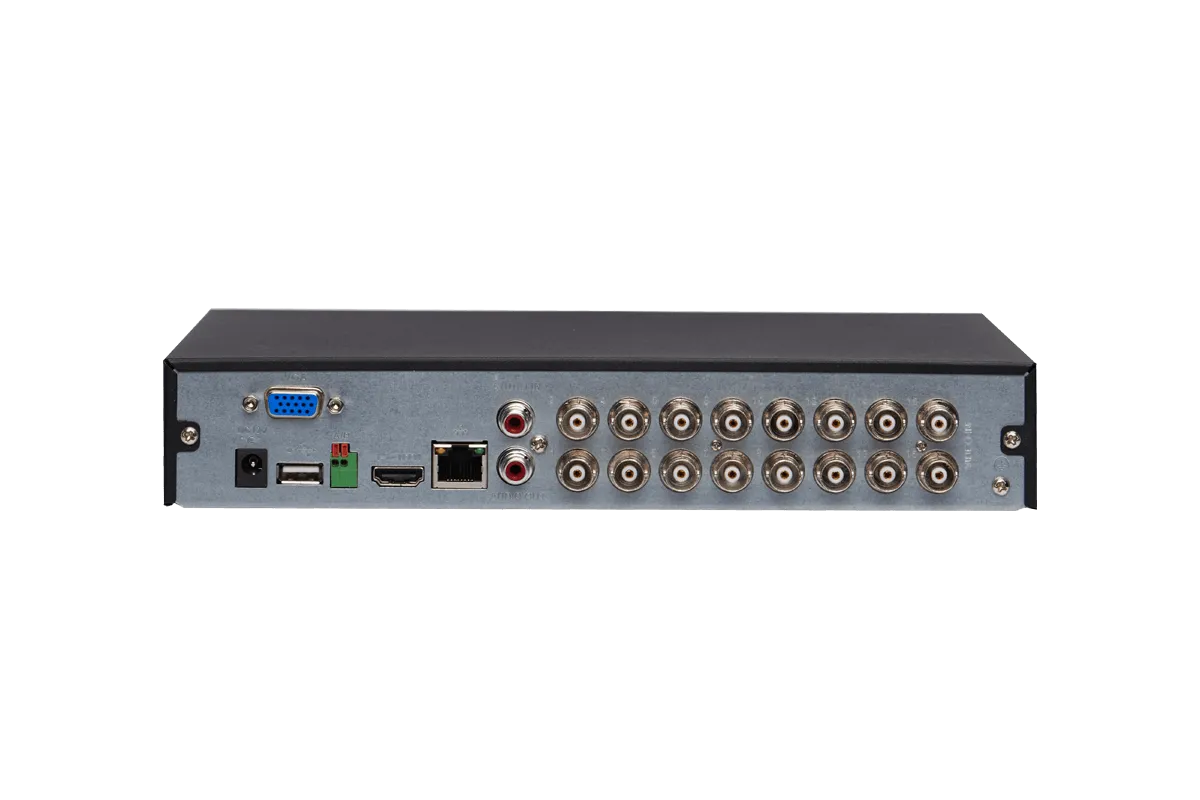

Leave nothing to the imagination when you combine our high definition LHV0000 Series DVR and sixteen high definition LBV1521 security cameras. This system uses standard BNC cabling to transmit crisp HD images, resulting in 720p recordings that feature a true-to-life aspect ratio. Extend video signals up to 800ft (242m) with a single run of RG59 coaxial cable for flexible installation.
HDIP or MPX?
Choosing the right security system
View security cameras on smart devices with FLIR Secure
Introducing , Lorex's innovative and hassle-free cloud connection service that connects you to your entire security system using a smartphone, tablet or desktop computer. Simply download our free app, scan the QR code on your DVR and start viewing your world securely. This app is full of cutting-edge features. Watch live views or recorded footage, create RapidRecap ® videos, and customize settings to send your mobile device push notifications for motion events - all from the palm of your hand.
Works With
A security system that monitors your home around the clock

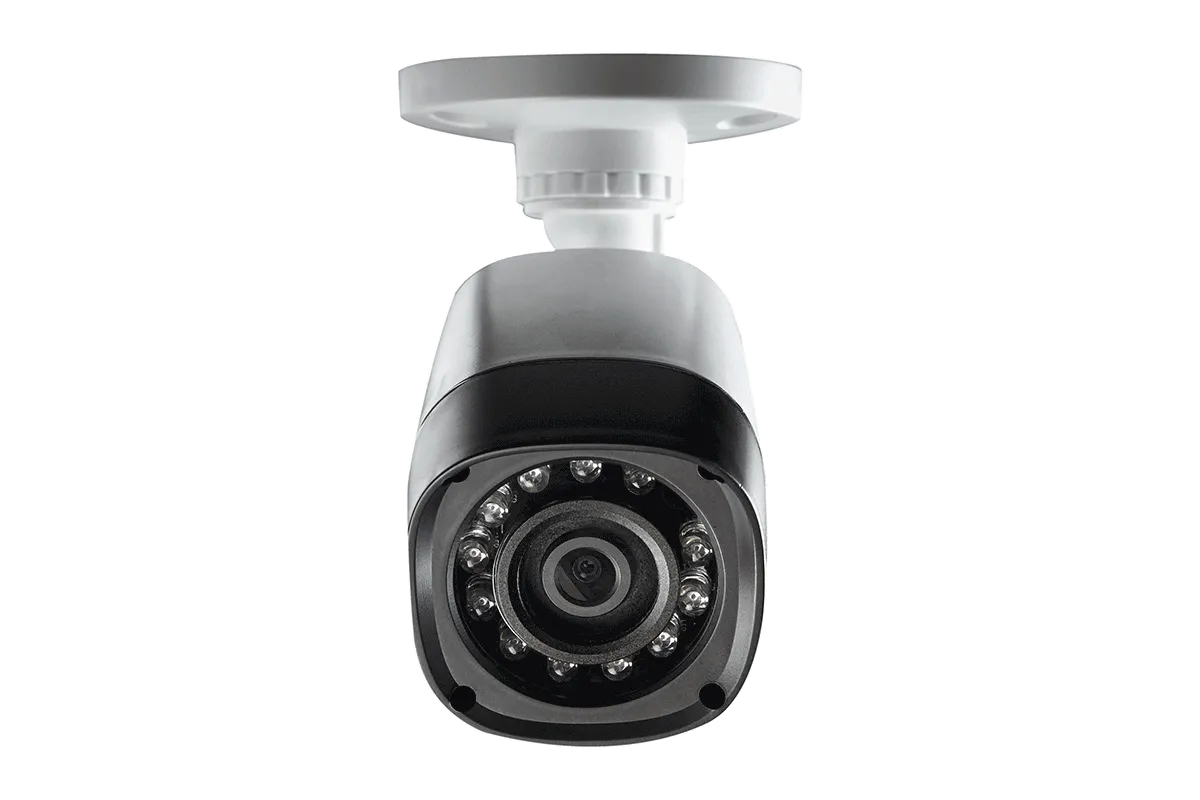

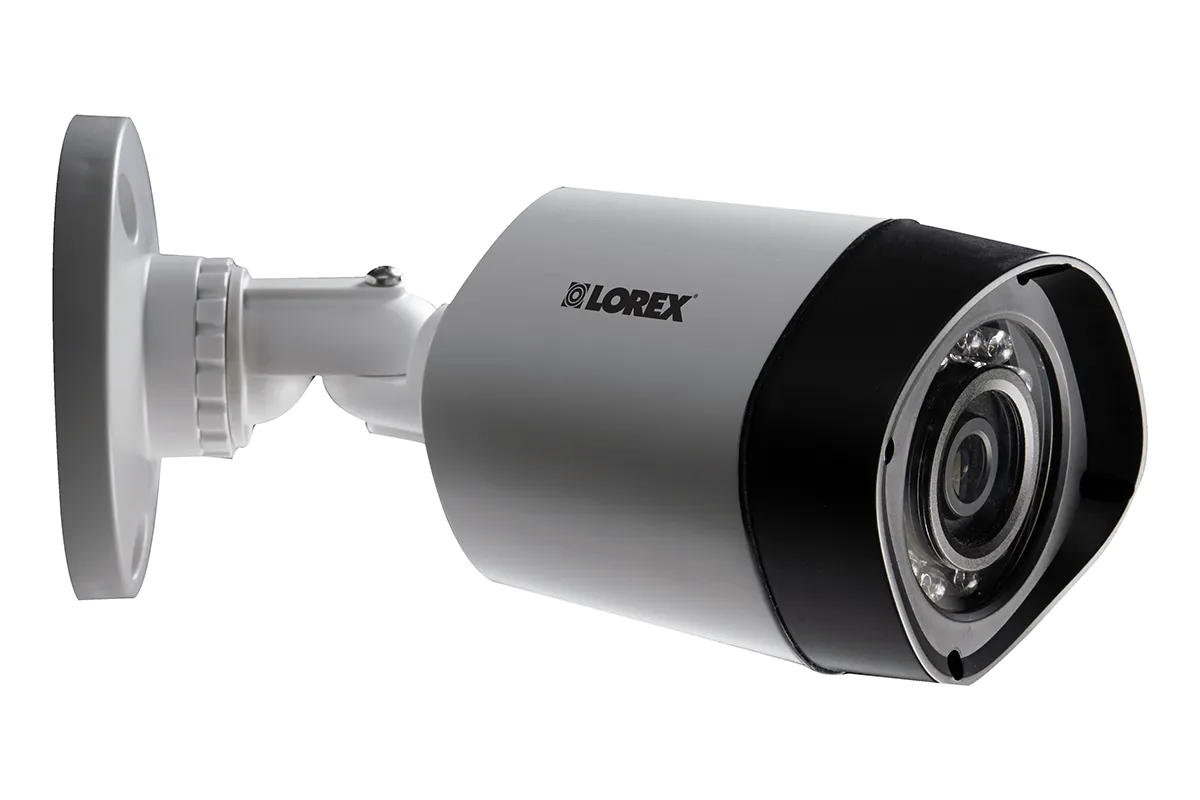

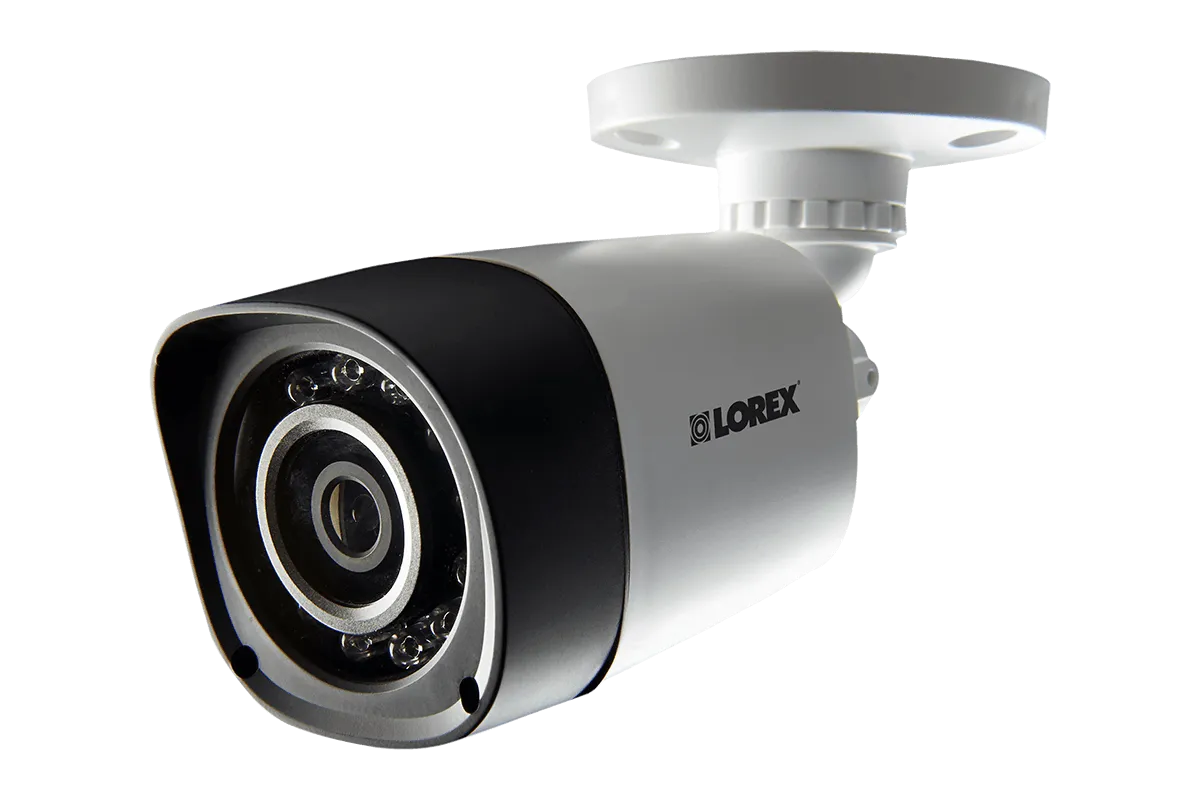

Lorex?s LBV1521B weatherproof security cameras provide high-quality recordings that customers have come to expect from their Lorex security solution throughout the day (and night). These cameras feature a night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness. With the ability to see through the dark you can rest assured that your security cameras will be hard at work, at all hours of the day.
Easy installation
This security system features a simplified plug-and-play setup that will have you monitoring your property in minutes. Each camera only requires a single run of BNC cable to connect it to the DVR. This all-in-one siamese RG59 coaxial cable carries both video transmission and power up to 300ft. A single run of RG59 coaxial cable can extend the video signal up to 800ft / 242m for larger properties (see documentation for complete details).
Weatherproof security cameras
Suitable for both indoor and outdoor applications, the LX720-166 features sixteen LBV1521 HD security cameras that are all rated. IP66 certifies that a security camera is suitable for outdoor installation. On top of that, LBV1521 will operate in temperatures as low as -22°F (-30°C). The cable pass-through bracket design and durable polycarbonate housing create a vandal resistant exterior. Enjoy year-round surveillance knowing you have sixteen rugged HD security cameras keeping watch.
LBV1521
122°F | 50°C
Heat Rating
-22°F | -30°C
Cold Rating
High capacity, high-efficiency hard drive
Security footage is recorded to a designed for surveillance monitoring. With 1 terabytes on board, your LHV0000 HD DVR can store weeks of recorded footage. Recording settings can be adjusted to fit your monitoring needs. Program scheduled recording times or change the settings to a lower resolution to save space.
Image resolution comparison
| Recording | Full 1080p HD (1920x1080) | 720p HD (1280x720) | Analog 1080p HD (1920x1080) | 720p HD (1280x720) |
| Platform | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
| Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
| Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
| Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
