Reliable Performance. ETL / UL Certified. Made in the USA

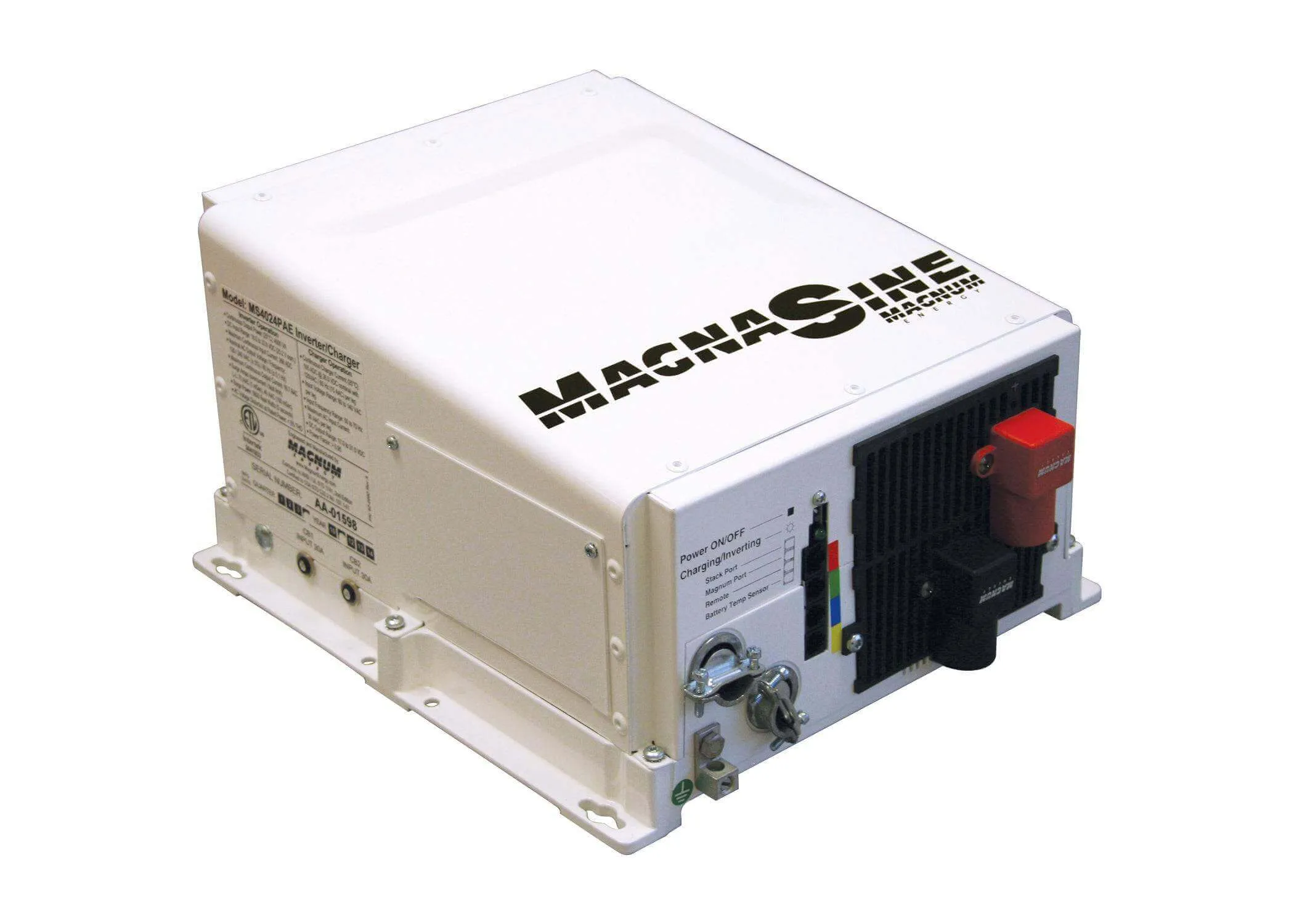

The MS-PAE split-phase 120/240V Series Inverter / Charger from Magnum Energy is a pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PAE Series is powerful, easy-to-use, and best of all, cost effective.

Certifications: ETL Listed to UL 1741, UL / cUL458 and CSA 22.2 #107.1-01

Specifications

• Output Power: 4,400W
• Peak Watts: 8,500W
• Charger Type: 5-Stage Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver™
• Warranty: Three years parts and labor (five years when installed on MMP or MP system)
• Input Current: 17.5 AAC per leg
• Output Voltage: 120/240 VAC split phase (± 5%)
• Output Current: 36.7 amps
• Output Waveform: Pure Sine
• Output Frequency: 60 Hz
• Input Voltage: 48
• Operating Temp: -20° C to 60° C (-4° F to 140° F)
• Efficiency: 94%
• Weight: 55 lb (24.9 kg)
• Dimensions: 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm)
• UL Certified: Yes
• Phase: Single
• Topology: Low Frequency
• Input Battery Voltage Range: 36-64

Options

• Magnum (Basic remote)
• Magnum (Advanced remote)
• Magnum (Router)
• Magnum (Networked Auto Generator Start)
• Magnum (Stand-alone Auto Generator Start)
• Magnum (Battery Monitoring Kit)
• Magnum MagWeb (Web Interface)
