The ME-BMK/ME-BMK-NS is a single battery bank amp-hour meter that monitors and provides important information about the condition of the battery. This information will let you know how much energy you have available, and let you plan your electrical usage to ensure the battery is not being over-discharged.
The ME-BMK is easy to install and is designed to be networked with a Magnum Energy inverter/charger using a remote (ME-RC50 or ME-ARC50) or router (ME-RTR) to display information about your battery bank.

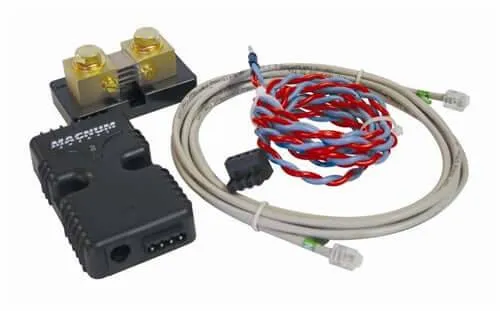

Kit includes: Manual, sense module, twisted pair wire, and communication cable
Downloads:
Specifications
- DC volts: 7 to 70 (±0.5%) auto voltage detection
- DC amps: ±0.1 to 999 (±1.0%)
- Battery SOC %: 0 to 100% (1% increments)
- Power draw: < .6 watts
- Amp hours in/out: ±32,768 amp hours (1 AH increments)
- rAH out (resettable amp hours removed): 0 to 65,353 amp hours, resettable (0.1 AH increments)
- tAH out (total amp hours removed): 0 to 65,535,000 amp hours (0.1 k or 100 AH increments)
- Minimum/maximim DCV Display: 7 to 70 VDC, resettable
Kit includes
Manual, sense module, DC shunt, twisted pair wire, and communication cable
Sense wire : Twisted pair -blue & orange, 5′ length, 18 AWG wire
Communication cable : 4-conductor, 10’ twisted pair, telephone standard
Remote requirements : Use with an ME-RC with firmware revision of 2.0 or higher or an ME-ARC (all revisions)
