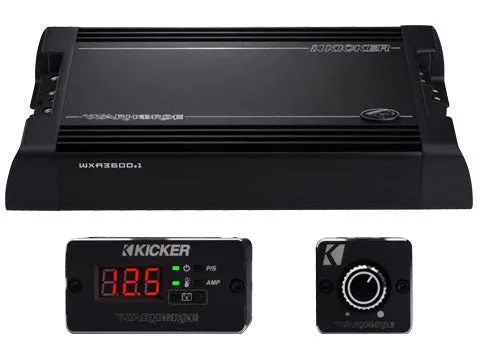

Name: Kicker Warhorse 49WXA36001 3600W Mono-Block Car Audio Amplifier/Amp WXA3600.1
SKU: 220743

Product Details ＋

IN STOCK! ORDER NOW AND SHIPS BY NEXT DAY!

The Warhorse WXA3600.1 was engineered completely in-house by KICKER Research and Development for ultra-high SPL applications.

Not your Average Amp

Features extreme reliability under intense bass power and overall use
Engineered completely in-house by KICKER R&D
Full-bridge Class-D design
Quad micro-controller-regulated cooling fans
Capable of daisy-chaining remote power across multiple amps
Competition mode switch to avoid potentiometer creep, fix crossover setting, and gain-match multiple amps
Includes premium remote bass-level control with a magnetic mount
Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status
Fully compatible with most factory or aftermarket source units (with FIT ™ differential inputs)
WARHORSE Install Scenarios:

Specifications
MODEL	WXA3600.1
WXA3600.1
WARHORSE 3600.1 white paper with full tech graph data

WARHORSE 3600.1 Dimensions

*RMS Power (watts/ch) 1 Ohm Mono (@ 14.4v, <1%THD)	3600x1

*RMS Power (watts/ch) 2 Ohm Mono (@ 14.4v, <1%THD)	2500x1

*RMS Power (watts/ch) 4 Ohm Mono (@ 14.4v, <1%THD)	1400x1

**Dynamic Power (watts)	5000

Frequency Response (Hz)	10-200

Signal-to-Noise Ratio (dB; A-weighted, re: rated power)	>90

Signal-to-Noise Ratio (dB; ref: 1W output)	>70

Input Sensitivity	low level 125mV-5V
	high level 1V-40V

Selectable Electronic Crossover	Variable Low-pass 50-200Hz, 24dB/octave

Subsonic Filter	Defeatable @ 15Hz, 24dB/octave

Competition Mode

Dimensions (in, cm)	H – 2-9/16, 6.5
	W – 9-1/8, 23.2
	L – 15-3/8, 39.1
