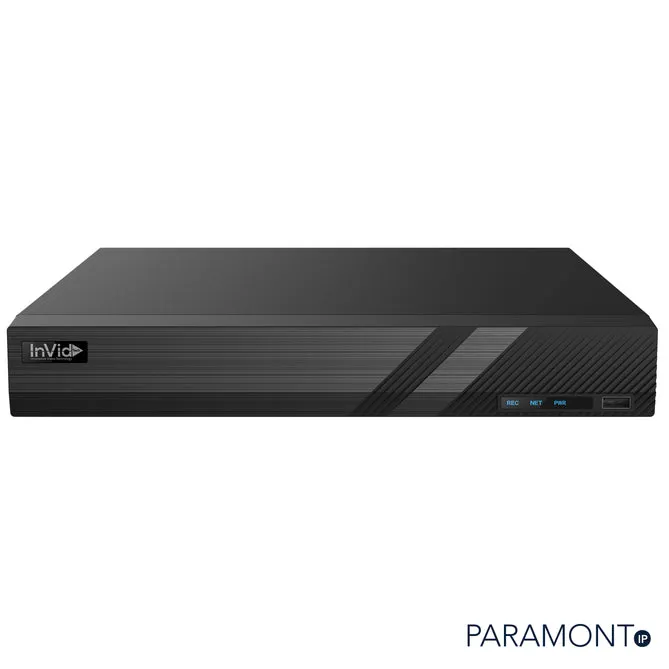

4 Ch NVR with 4 Plug & Play Ports, 40 Mbps, 1 HD Bay, 4K
Features
- Up to 8 Megapixel Resolution Recording
- 40 Mbps Bit Rate Input
- Supports up to 4 channel Simultaneous playback
- Smart Analytic Support
- Local HDMI main monitor output with 4K support
- Local VGA main monitor output up to 1080p
- True P2P Connectivity with QR Code Connect
- Multiple video search options including Smart Search for quick retrieval of footage.
- H.265S/ H.265 / H.265/ H.264
- 1 Hard Drive Bay
- Free Central Management Software (CMS)
- Free iOS & Android Apps for Smart Phones & Tablets
- Free MAC Client
System |
PN1B-4X4NH |
|
OS |
Embedded Linux |
Video |
|
|
Network Input |
4 CH IPC input |
|
Network Input Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Output |
HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 |
|
Compression |
H.265S /H.265 / H.265 / H.264 |
Audio |
|
|
Network Input |
4 CH IPC audio input |
|
2-way Audio |
RCA × 1 |
|
Local Output |
RCA × 1 |
|
Compression |
G.711(U/A) |
Record |
|
|
Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Frame Rate |
NTSC:30fps; PAL:25fps |
Playback |
|
|
Simultaneous Playback |
Max. 4 CH |
|
Search |
Time slice / time / event / tag / smart search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
Decoding Capability |
|
|
Live View/ Playback |
1CH 8MP; |
Alarm |
|
|
Mode |
Manual, sensor, motion, exception, smart events |
|
Input |
Supports IPC alarm input |
|
Output |
Supports IPC alarm output |
|
Triggering |
Record, snap, preset, e-mail, etc. |
Other Functions |
|
|
Plate Recognition |
Yes |
|
Fisheye Support |
No |
Video Structure Analysis |
|
|
Human/Vehicle Classification |
Yes |
Network |
|
|
Interface |
RJ 45 × 1 (10/100/1000Mbps) |
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc. |
|
Incoming/ Outgoing Bandwidth |
40/40 (Mbps) |
|
Client Connection |
Max. 10 users access |
Mobile Device |
|
|
OS |
iOS, Andriod |
Storage |
|
|
HDD Interface |
SATA3.0 × 1, Up to 18TB |
Backup |
|
|
Local Backup |
USB, USB To HDD (1TB Max) |
|
Network Backup |
Yes |
Port |
|
|
USB |
USB 2.0 × 2 |
|
Remote Controller |
Included |
PoE |
|
|
PoE Ports |
100M RJ45 × 4 |
|
Standards |
IEEE802.3AF/AT |
|
Output Power |
≤ 48W |
Others |
|
|
Power Supply |
DC 48V/1.25A |
|
Consumption |
≤ 10W ( without HDD ) |
|
Dimensions ( W × D × H ) |
11.8 x 9.8 x 1.7 In (300 × 249 × 45 mm) |
|
Working Environment |
14°F ~122°F (-10 ~ 50 ℃)10% ~ 90% humidity |
|
Certificate |
CE, FCC, ETL: 5025761 |
|
Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE |
