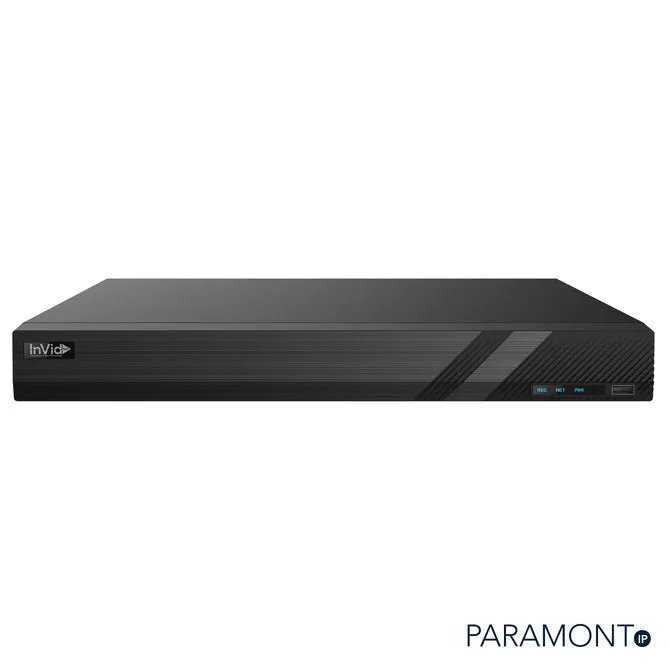

16 Ch NVR with 16 Plug & Play Ports, 96 Mbps, 2 HD Bays, 4K
Features
- Up to 8 Megapixel Resolution Recording
- 96 Mbps Bit Rate Input
- Supports up to 16 channel simultaneous playback
- Smart Analytic Support
- Local HDMI main monitor output with 4K support
- Local VGA main monitor output up to 1080p
- True P2P Connectivity with QR Code Connect
- Multiple video search options including Smart Search for quick retrieval of footage.
- H.265S/ H.265 / H.265/ H.264
- 2 Hard Drive Bays
- Free Central Management Software (CMS)
- Free iOS & Android Apps for Smart Phones & Tablets
- Free MAC Client
System |
PN1A-16X16-2NH |
|
OS |
Embedded Linux |
Video |
|
|
Network Input |
16 CH IPC input |
|
Network Input Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Output |
HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 |
|
Compression |
H.265S / H.265 /H.265 /H.264 |
Audio |
|
|
Network Input |
16 CH IPC audio input |
|
2-way Audio |
RCA × 1 |
|
Local Output |
RCA × 1 |
|
Compression |
G.711(U/A) |
Record |
|
|
Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF |
|
Frame Rate |
N:30fps; P:25fps |
Playback |
|
|
Simultaneous Playback |
Max. 16 CH |
|
Search |
Time slice / time / event / tag search/ smart search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
Decoding Capability |
|
|
Live View / Playback |
1CH 8MP; 4CH 1080P |
Alarm |
|
|
Mode |
Manual, sensor, motion, exception, smart events |
|
Input |
Supports IPC alarm input |
|
Output |
Supports IPC alarm output |
|
Triggering |
Record, snap, preset, e-mail, etc. |
Other Functions |
|
|
Plate Recognition |
Yes |
|
Fisheye Support |
No |
Video Structure Analysis |
|
|
Human/Vehicle Classification |
Yes |
Network |
|
|
Interface |
RJ 45 1000Mbps × 1 |
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc. |
|
Incoming/Outgoing Bandwidth |
96Mbps/96Mbps |
|
Client Connection |
Max.10 users access |
Mobile Device |
|
|
OS |
iOS, Andriod |
Storage |
|
|
HDD Interface |
SATA3.0 × 2, max 18TB per HDD |
Backup |
|
|
Local Backup |
USB, USB to HDD (1TB Max) |
|
Network Backup |
Yes |
Port |
|
|
USB |
USB 2.0 × 2 |
|
Remote Controller |
Included |
PoE |
|
|
PoE Ports |
RJ 45 100 Mbps × 16 |
|
Standards |
IEEE802.3AF/AT |
|
Output Power |
≤ 150W |
Others |
|
|
Power Supply |
DC 48V/3.75A |
|
Consumption |
≤ 10W ( without HDD ) |
|
Dimensions ( W × D × H ) |
14.9 x 10.5 x 1.7 In (380 × 268 × 45 mm ) |
|
Working Environment |
14°F ~122°F (-10 ~ 50 ℃)10% ~ 90% humidity |
|
Certificate |
CE, FCC, ETL: 5025761 |
|
Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE |
