Product Details
＋

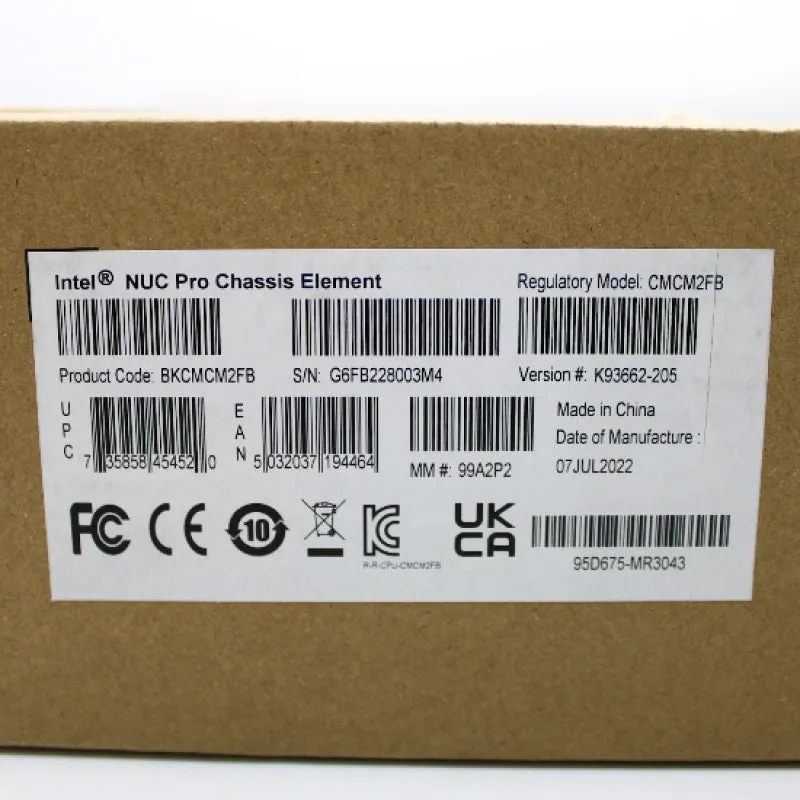

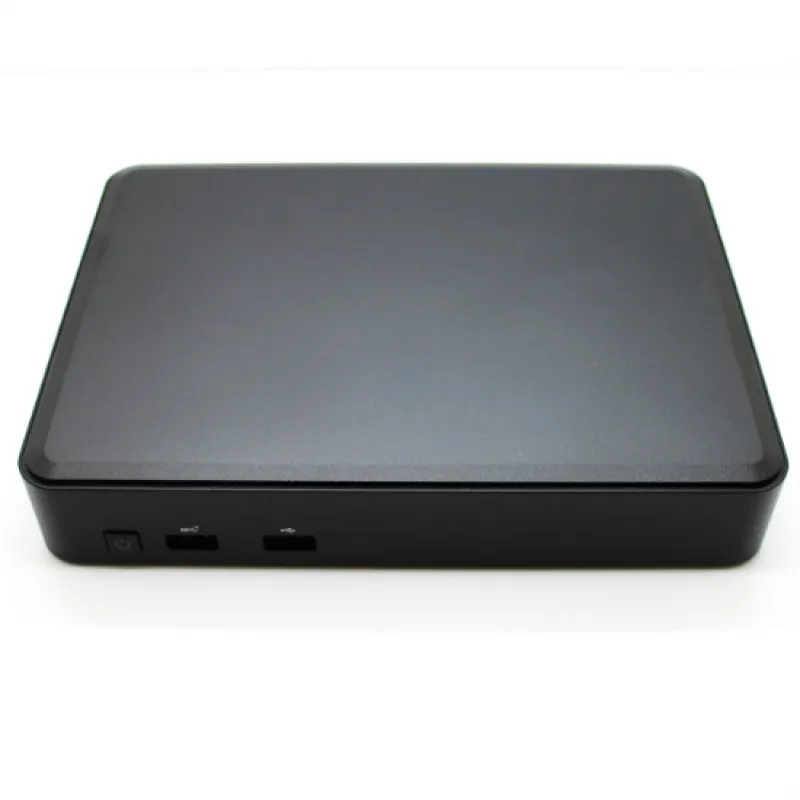

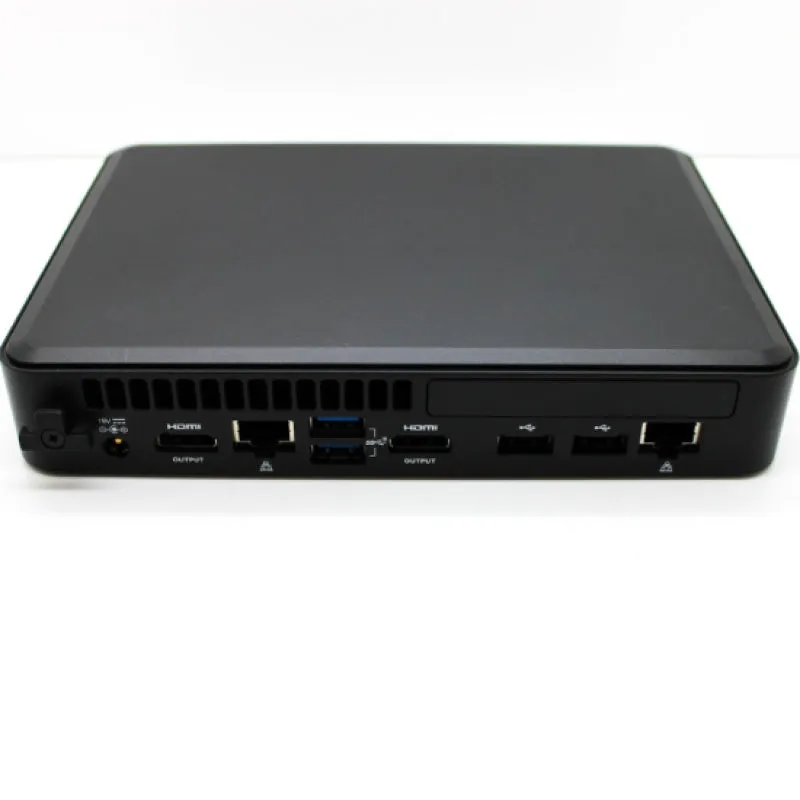

This is an Intel CMCM2FB NUC Pro Chassis Element BKCMCM2FB 99A2P2. It comes as pictured and does not include any additional parts or accessories.
Specifications:
Chassis Size
200mm x 144.4mm x 35mm
Graphics Outputs
Integrated graphics support with Intel® HD Graphics Technology
Two HDMI 2.0a
Built in CEC for all HDMI ports
High-Bandwidth Digital Content Protection support for content protection
HDCP 1.4 and 2.2 supported via HDMI
Resolutions and refresh rates supported
Up to 4K @ 60Hz
Up to 1080p @ 120Hz
1080p 60fps HDMI Input (for CMCM2FBAV capture card use only)
1080p 60fps HDMI Pass-Thru (for CMCM2FBAV capture card use only)
Audio
Intel® High Definition (Intel® HD) Audio via HDMI
1 Audio Stereo Input (for CMCM2FBAV capture card use only)
1 Audio Stereo Output (for CMCM2FBAV capture card use only)
Storage
One M.2 22x80 Key M slot for PCIe x4 NVMe or SATA SSDs
One M.2 22x80 Key M slot for PCIe x4 NVMe or PCIe add in devices
Wireless LAN
Intel® NUC Compute Element supplies the solution, antennas provided
Wired LAN
Intel® Ethernet Connection I219-LM (Support for Intel® vPro™ Technology when using a vPro™ enabled NUC Compute Element)
Intel® Ethernet Controller I211-AT
USB 2.0 Ports
3 (1 Front Panel, 2 Back Panel)
USB 3.x1 Ports
3 (1 Front Panel, 2 Back Panel)
Operating Systems
Support (64-bit only)
Windows* 10 Home
Windows 10 Pro
Windows 10 Enterprise
Windows 10 Education
Windows 10 IoT Enterprise
Some Linux* operating systems may be compatible. Check with the specific Linux
distribution to make sure that support is available for this platform.
Connector Supported
Lotes APCI0468-P001A01 Edge Mount Connector
