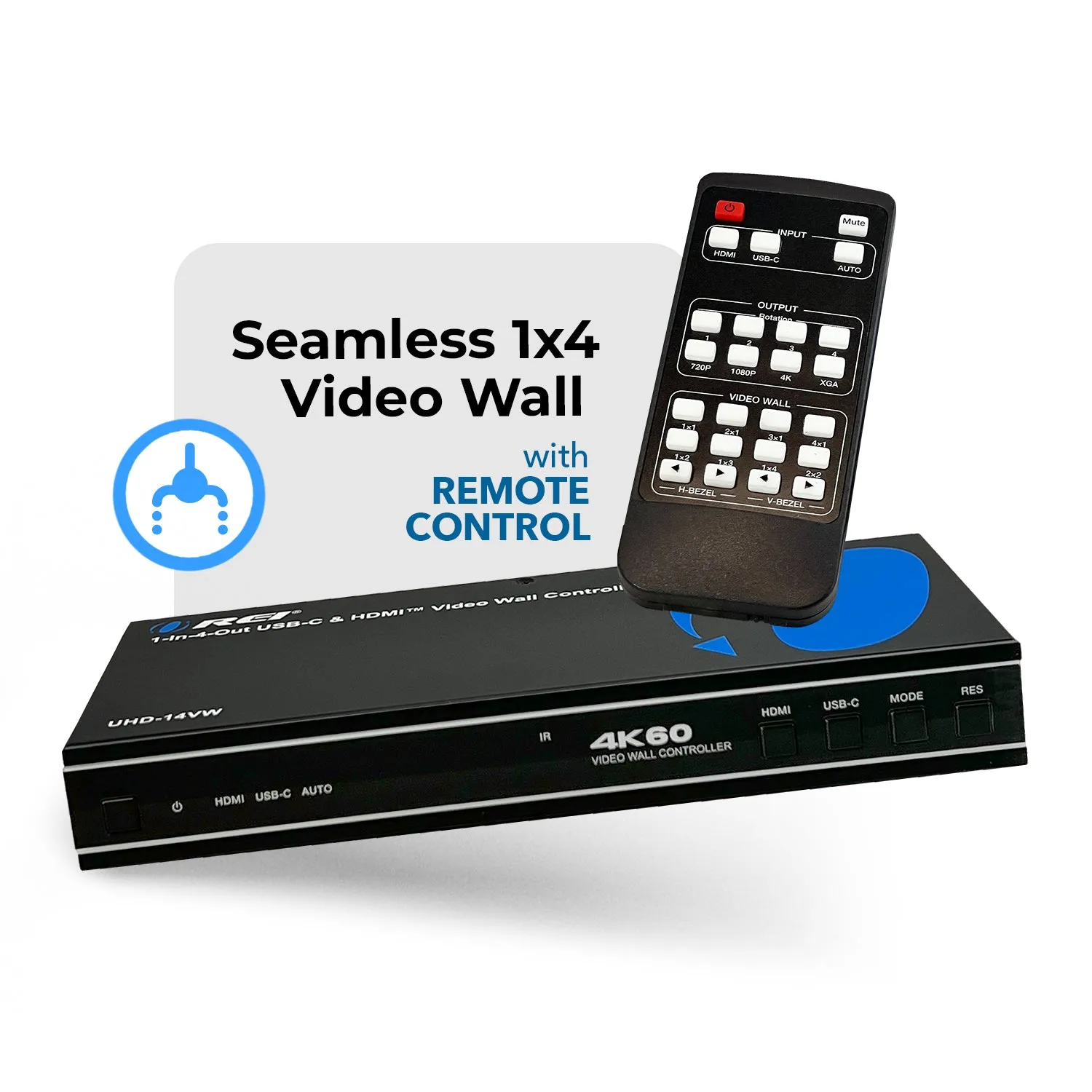

UHD-14VW: HDMI 2x2 Video Wall Controller with UBS-C input
Key Features:
-
HDMI 2.0, HDCP 2.2 & DP 1.2a compliant
-
USB-C Input for wider compatibility
-
Video resolutions up to 4K@60Hz
-
Audio extraction through Optical and L/R outputs
-
8 different Video wall modes
-
Features 180-degree image rotation
-
Bezel adjustment and EDID management
-
Control via included remote, RS-232, or front panel
-
Plug & Play setup

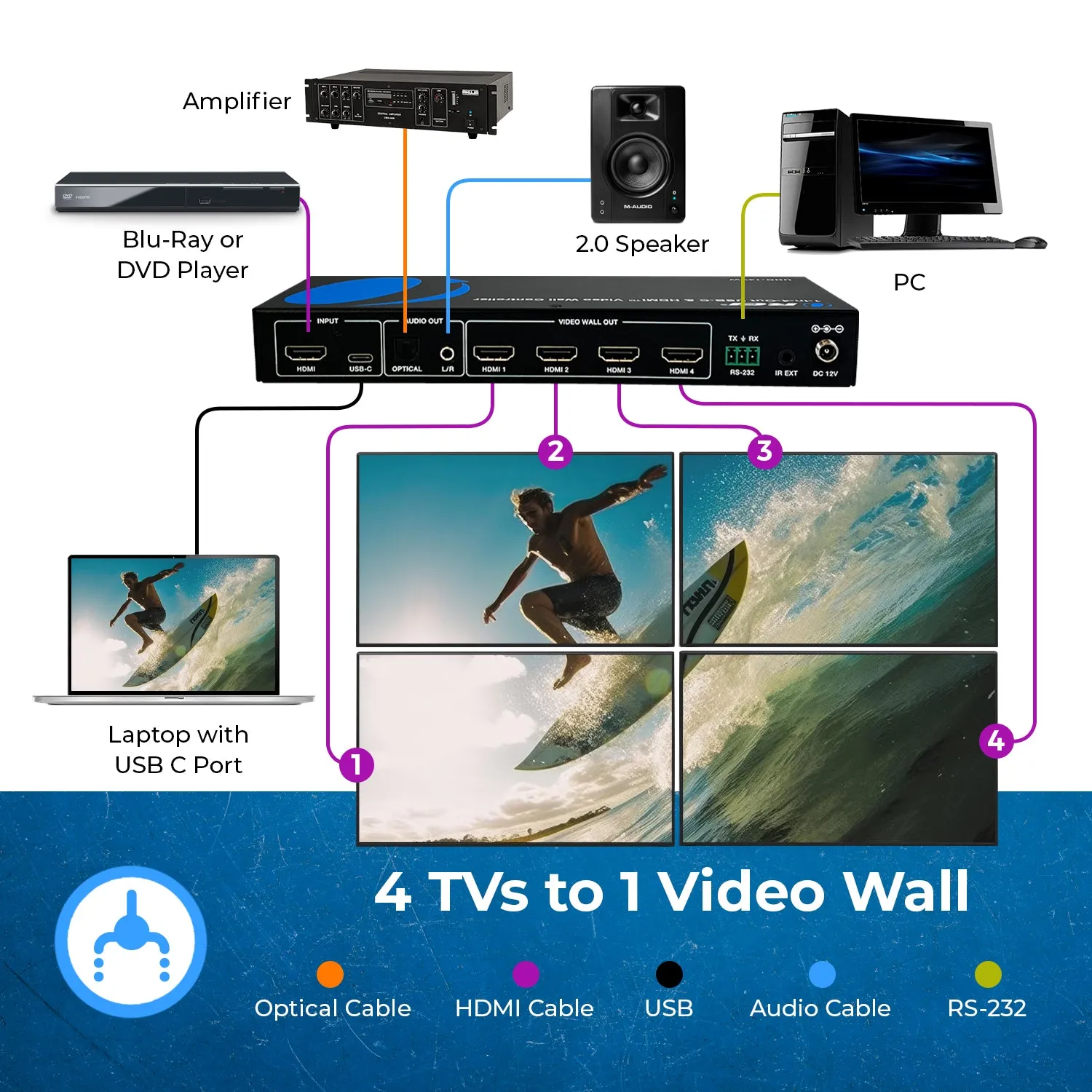

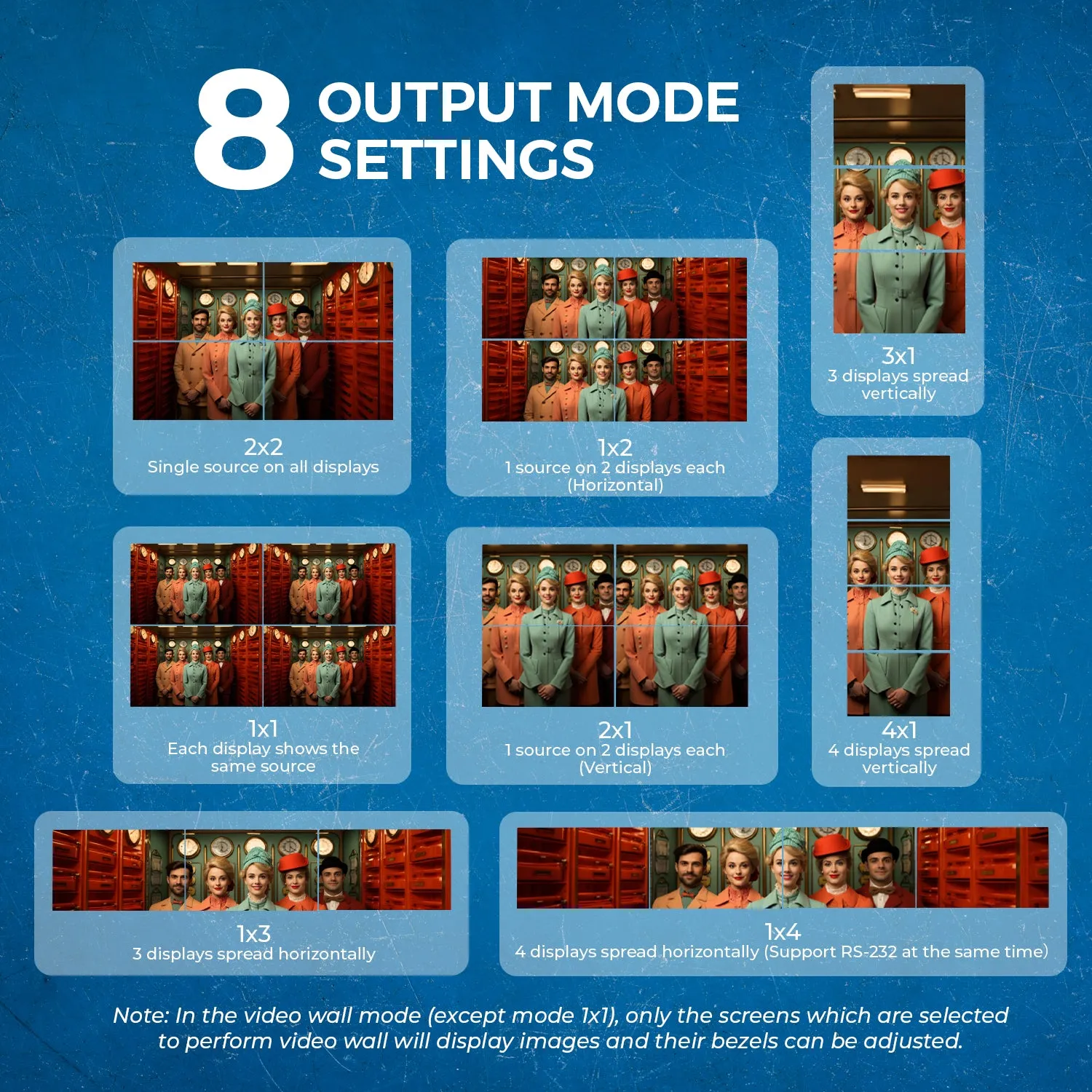

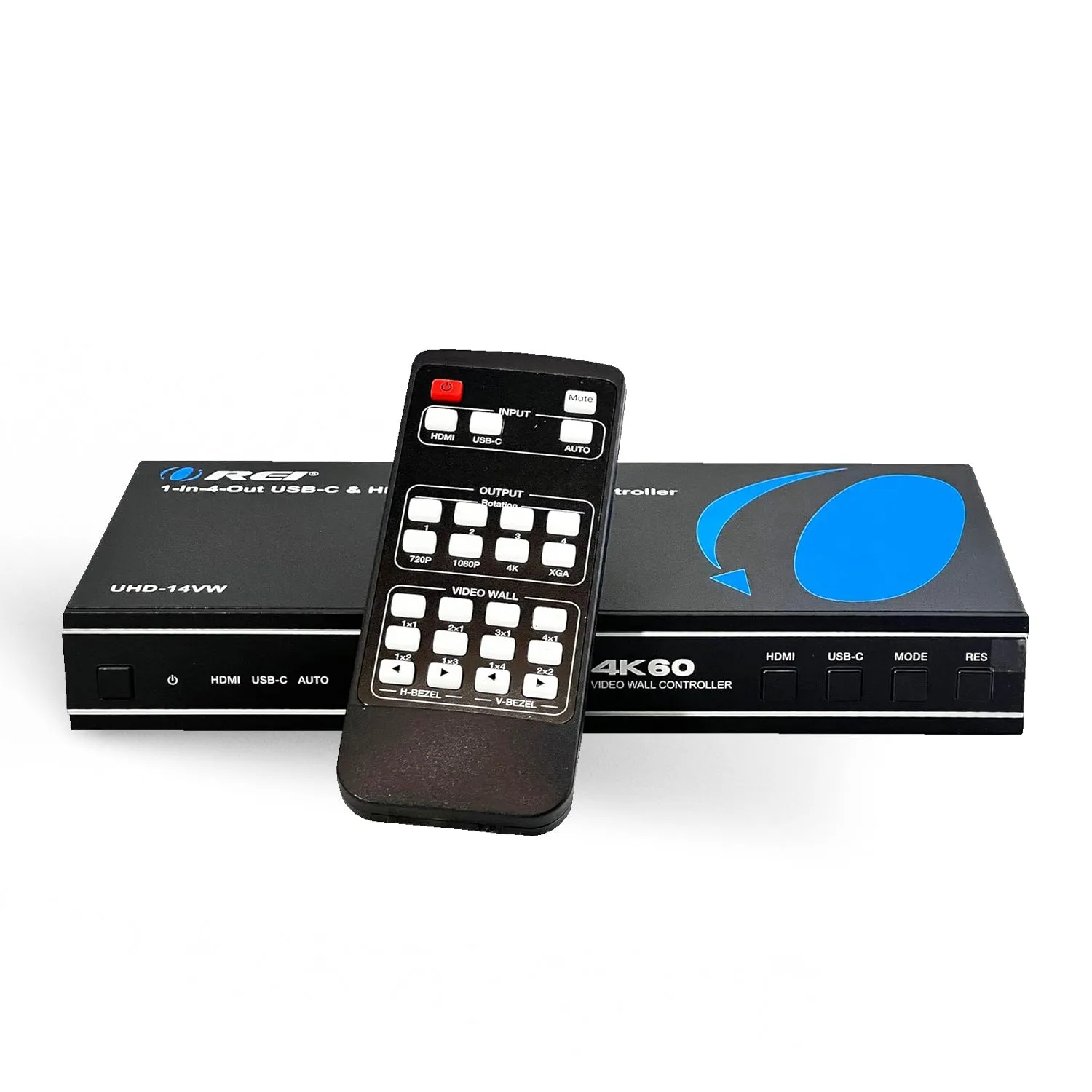

The UHD-14VW 1-In-4-Out Video Wall Controller is designed to take a single input and distribute it across 4 displays. The device features an HDMI and a USB-C input to connect to your media source. It supports resolutions up to 4K@60Hz 4:4:4. The device can take a media source and spread it across 4 displays creating a 2x2 Video wall. The device also features various other video wall modes such as 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, and 1x4. It also includes an Optical and a 3.5MM output for audio extraction. It can be controlled easily via the buttons on the front, the included remote or RS-232 commands.
[shortdes]
-
1x4 Video wall controller
-
Resolutions up to 4K@60Hz
-
Features 180-degree rotation, bezel management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
|
1 × USB [Type C, 24-pin female] |
|
OUTPUT:
|
4 × HDMI [Type A, 19-pin female] |
|
|
1 × S/PDIF [Optical Audio Jack] |
|
|
1 × L/R OUT [3.5mm, Stereo Mini-jack] |
|
| CONTROL: |
1 × RS-232 [3pin phoenix connector] |
|
|
1 × IR EXT [3.5mm, Stereo Mini-jack] |
|
PACKAGE CONTENTS
| 1x UHD-14VW |
| 1x IR Remote |
| 1x IR Receiver Cable |
| 1x RS-232 3-pin Phoenix connector |
| 4x Screw (KM3*4) |
| 2x Mounting Brackets |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18 Gbps |
| Video Resolutions: |
Up to 4K@60Hz 4:4:4 |
ADDITIONAL FEATURES
| CEC: |
No |
| ARC: |
No |
| USB KVM: |
No |
| PoC/PoE: |
No |
| IR Control: |
Yes |
| Downmix: |
No |
| Downscale: |
No |
| Over IP: |
No |
| HDBaseT: |
No |
| RS-232: |
Yes |

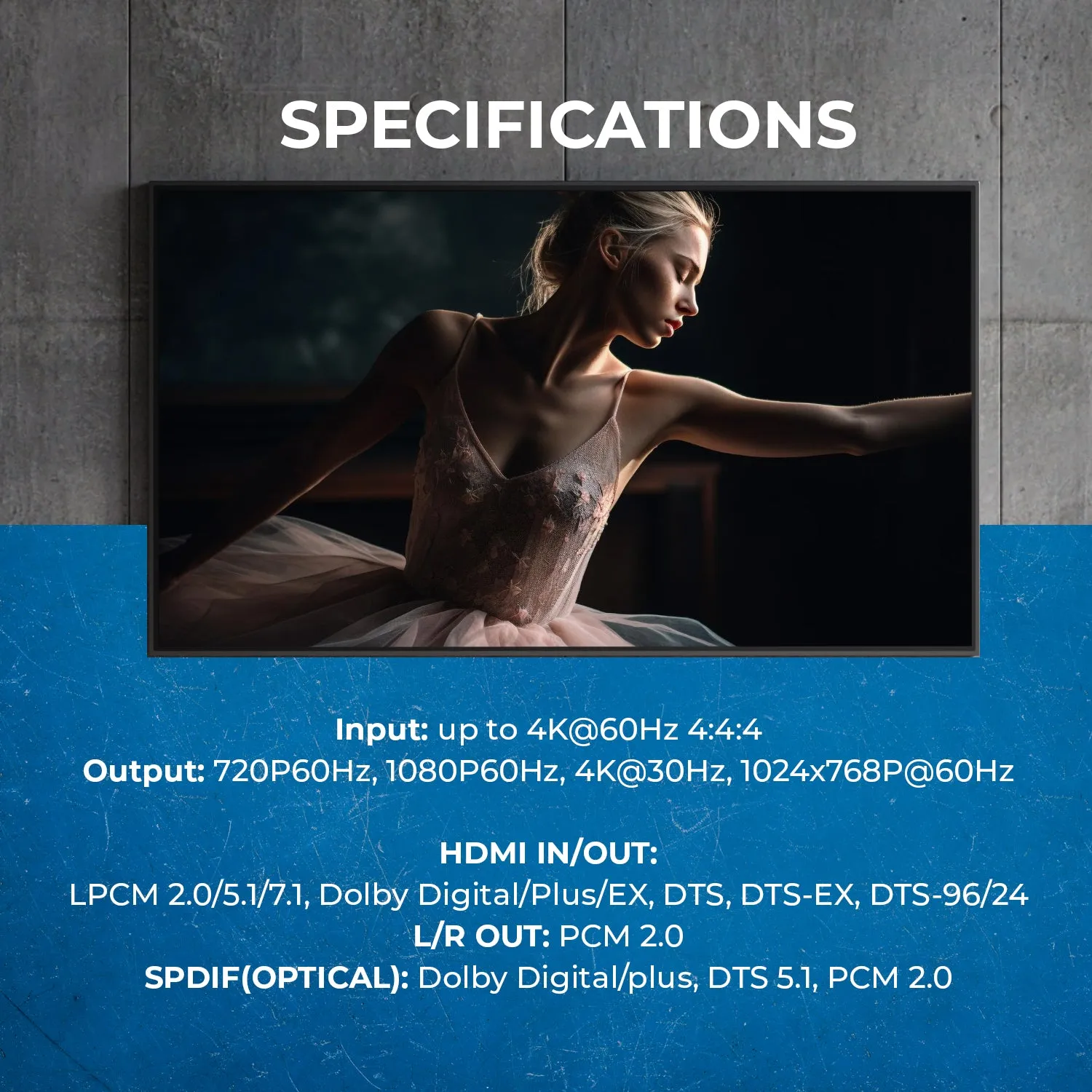

AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24
|
| Optical Audio Formats: |
Dolby Digital/plus, DTS 5.1, PCM 2.0
|
| Analog Audio Formats: |
PCM 2.0
|
COMPLIANCES
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
5.5W (Max) |
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 12V/1A |
|

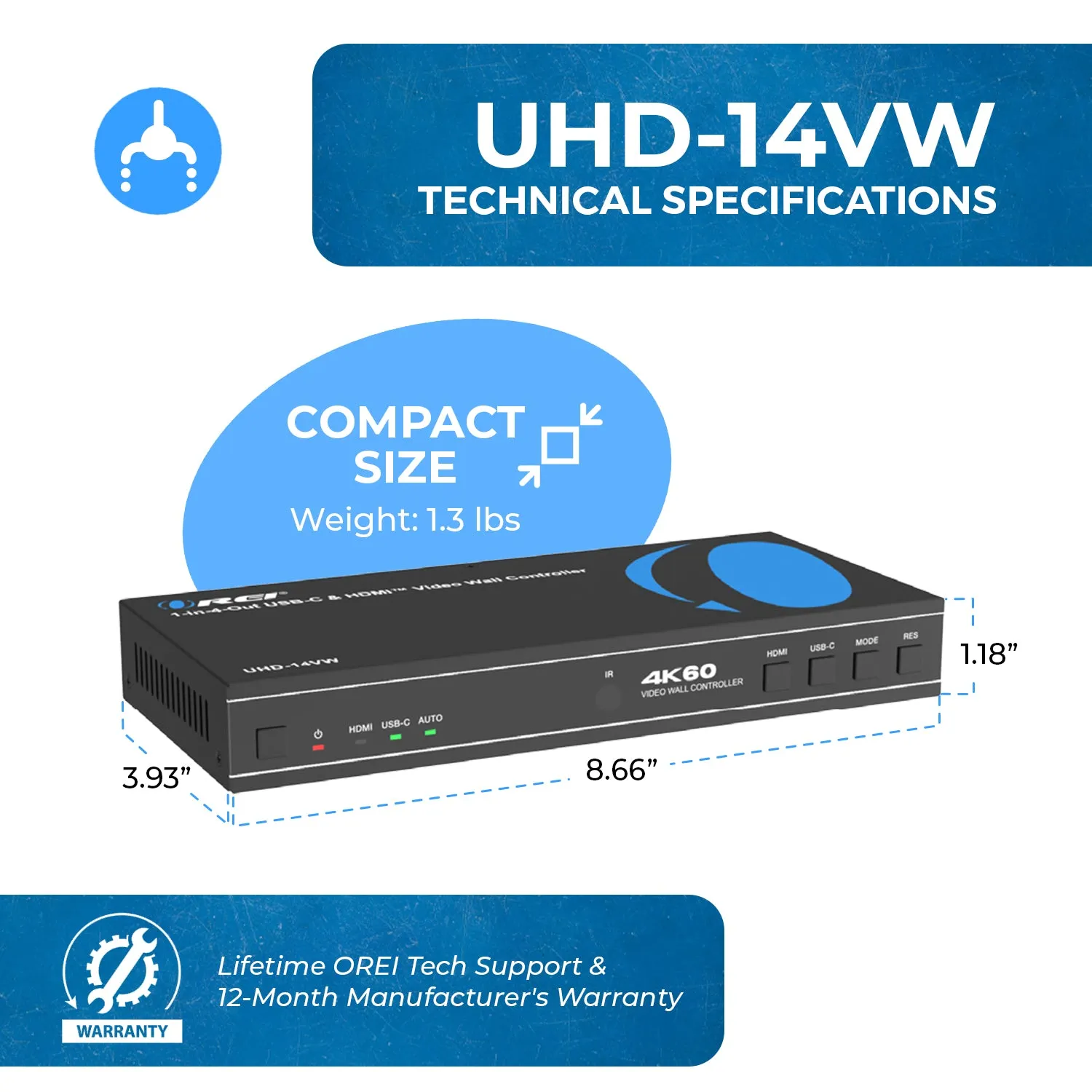

DIMENSIONS & WEIGHT
| Length:
|
220mm / 8.66in |
|
| Width: |
100mm / 3.94in |
|
| Height:
|
30mm / 1.18in |
|
| Weight:
|
590g / 1.3lbs |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
