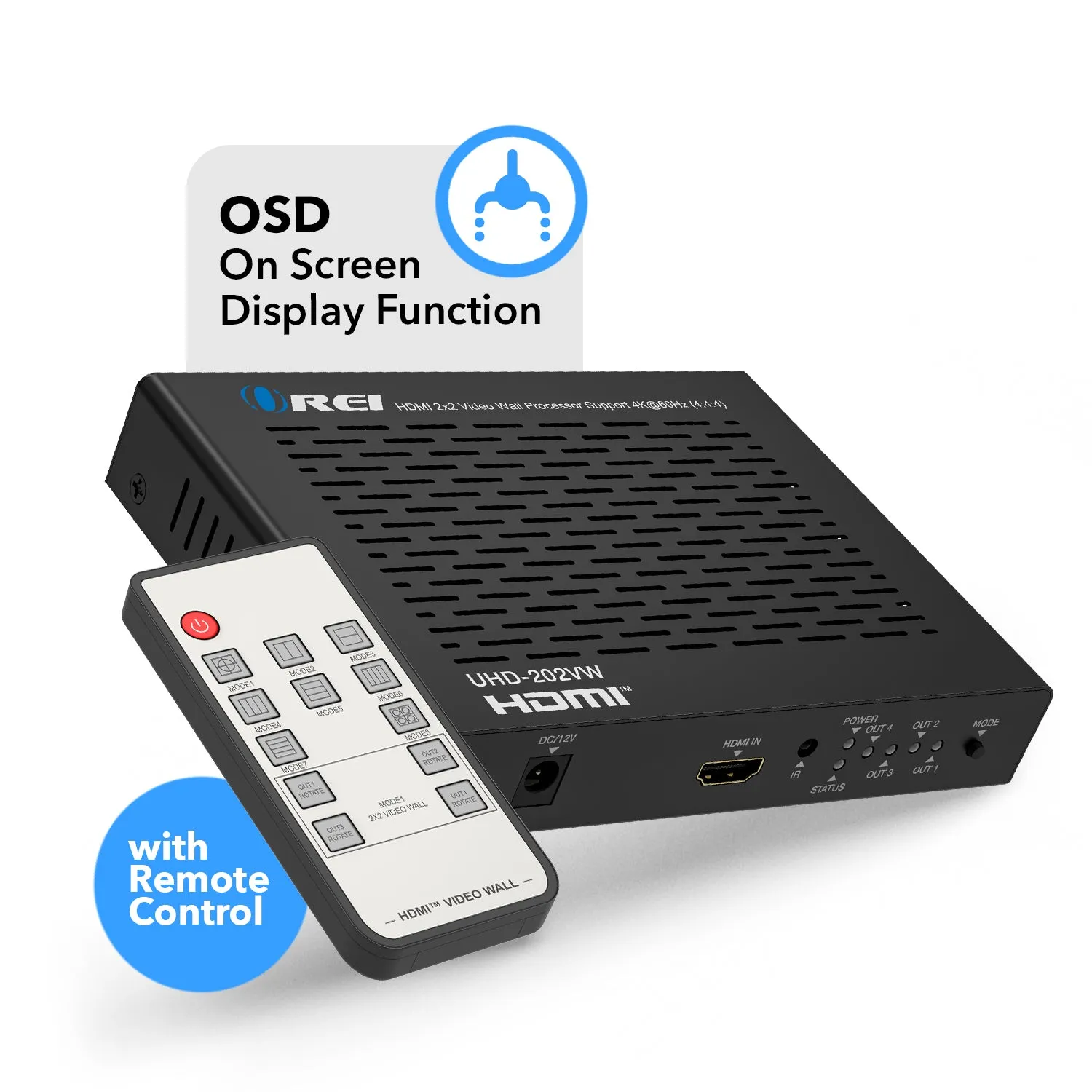

UHD-202VW: HDMI 2x2 Video Wall Controller 4K@60Hz
Key Features:
- HDMI 2.0 and HDCP 2.2 compliant
- Input video resolutions up to 4K@60Hz
- Output video resolutions up to 1080P@60Hz
- 18Gbps video bandwidth

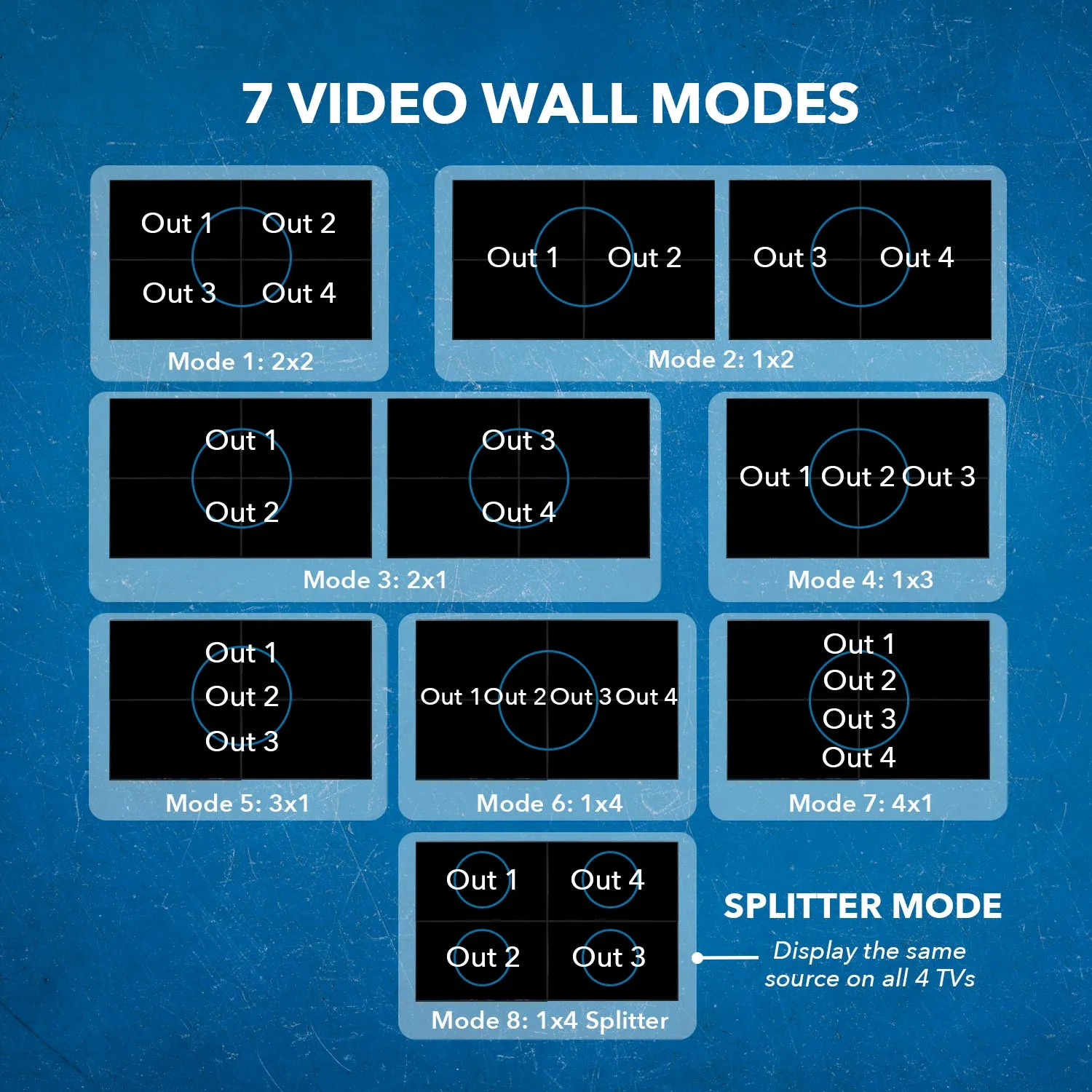

- Various display modes: 2x2, 1x2, 1x3, or 1x4
- Bezel adjustment, 180-degree rotation, and OSD
- Power-off memory function to recall the last setup

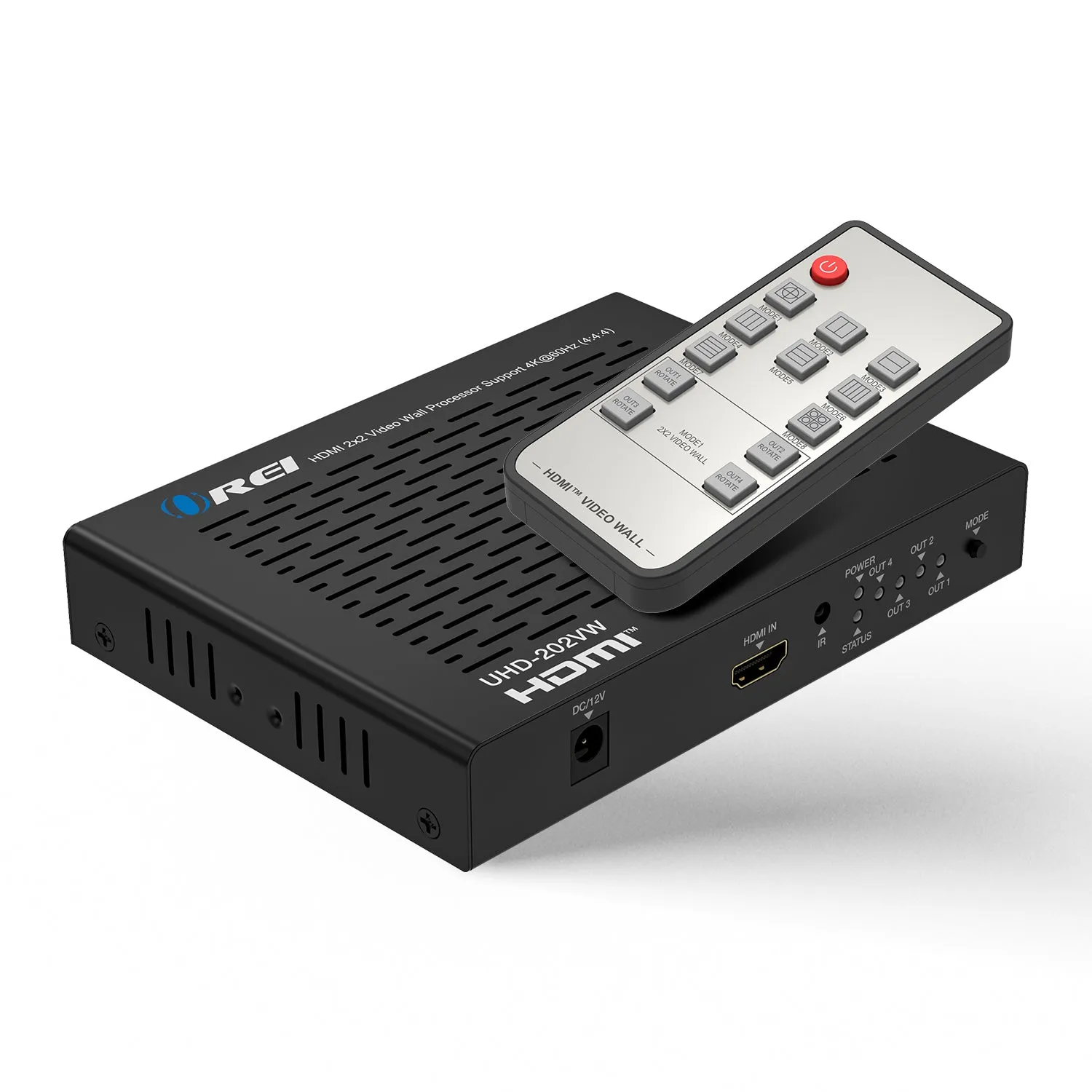

- Control via the included remote or mode button

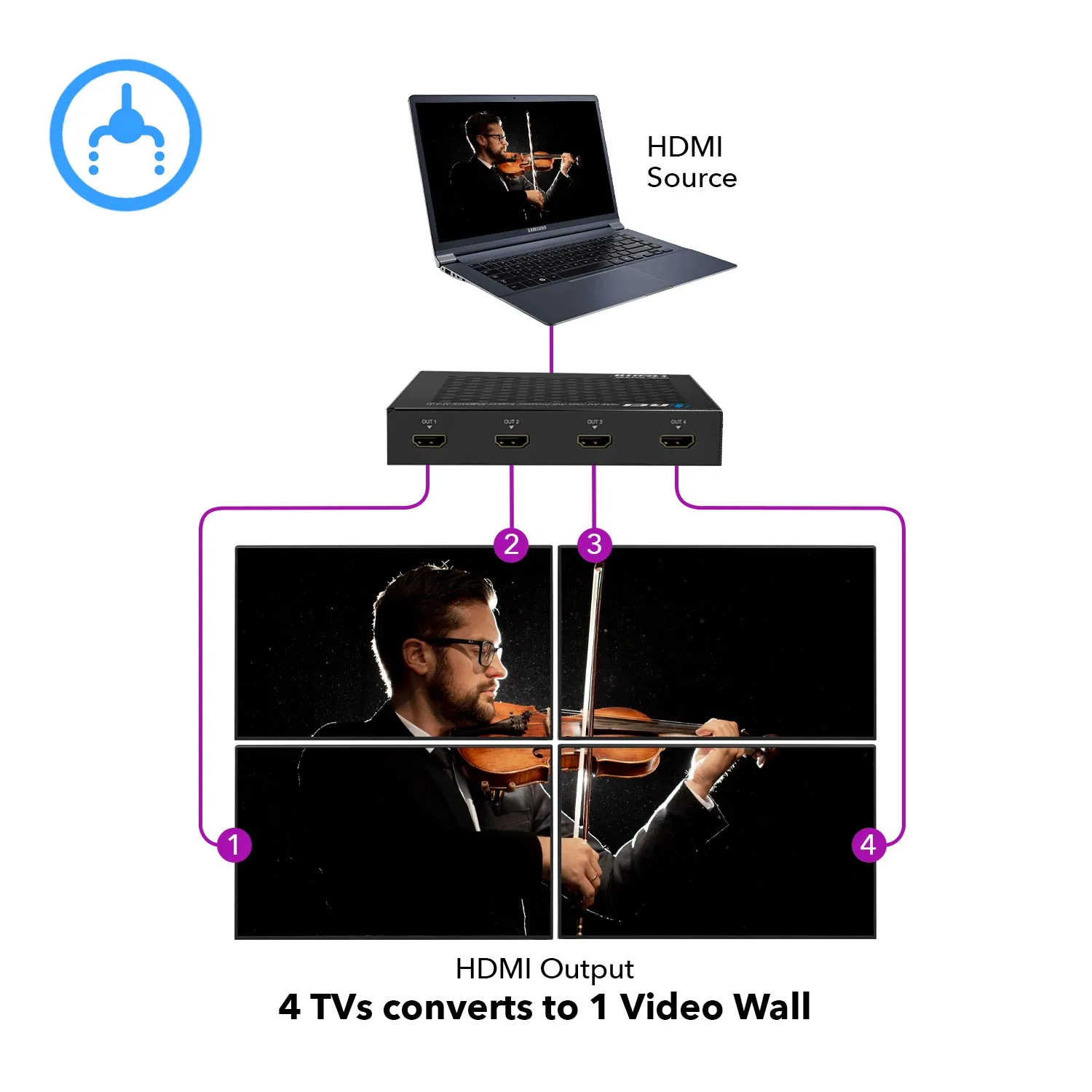

The UHD-202VW video wall controller is an awesome solution featuring 1 inputs, and 4 outputs. It adheres to HDMI 2.0 and HDCP 2.2 standards, accommodating resolutions of up to 4K@60Hz for input and 1080p@60Hz for output. Offering diverse video wall modes, including the 2x2 mode, it allows for seamless bezel adjustment and provides a unique 180-degree rotation feature for the top two displays in 2x2 video wall mode. It can be controlled through the remote or the Mode button.
[shortdes]
- HDMI Video wall controller
- Video resolutions up to 4K@60Hz
- Features 180-degree rotation, bezel management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: |
1 × HDMI [Type A, 19-pin female] |
|

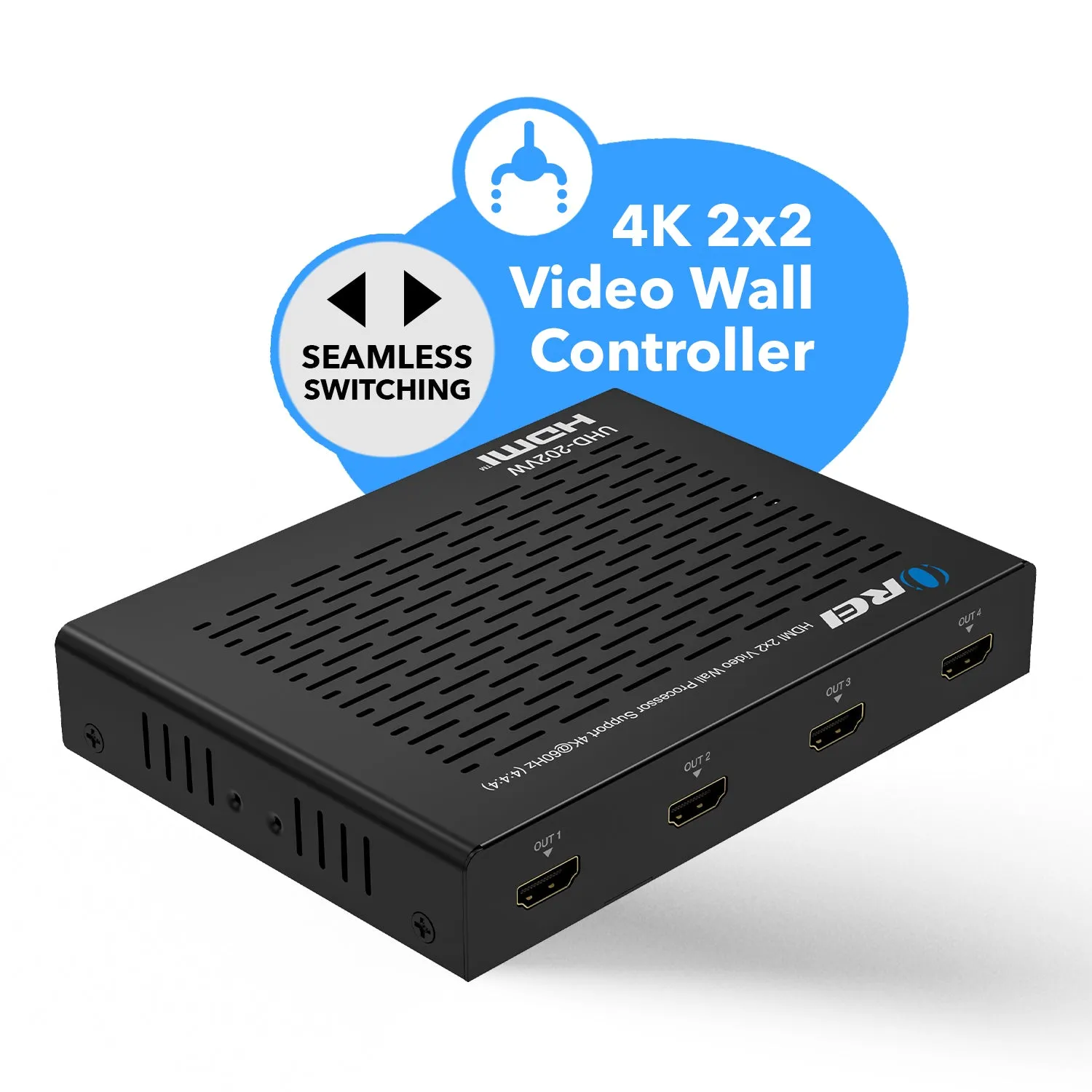

| OUTPUT: |
4 × HDMI [Type A, 19-pin female] |
|
PACKAGE CONTENTS
| 1x UHD-202VW |
| 1x Remote control |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/ 2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18 Gbps |
| Video Resolutions: |
Up to 1080P@60Hz |
ADDITIONAL FEATURES
| CEC: |
No |
| ARC: |
No |
| USB KVM: |
No |
| PoC/PoE: |
No |
| IR Control: |
Yes |
| Downmix: |
No |
| Downscale: |
No |
| Over IP: |
No |
| HDBaseT: |
No |
| RS-232: |
No |
LOOP-OUT / LOCAL PORTS
| Has loop out port: |
No |
| Number of Loop out ports: |
0 |
AUDIO SUPPORT
COMPLIANCES
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
12W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 12V/2A |
|

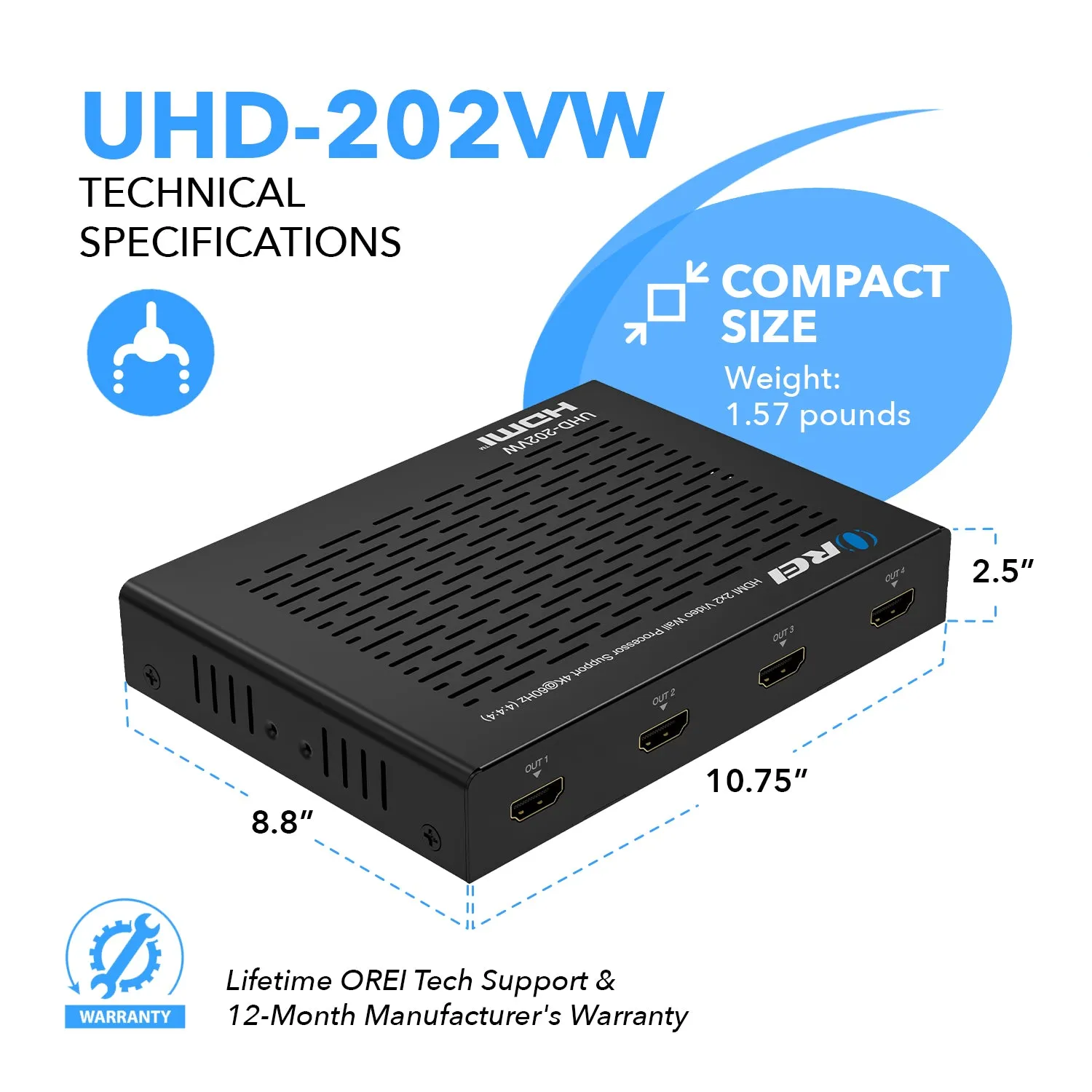

DIMENSIONS & WEIGHT
| Length:
|
151mm / 5.95in |
|
| Width: |
111mm / 4.37in |
|
| Height:
|
26.5mm / 1.04in |
|
| Weight:
|
395g / 13.93Oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
