CPU

AMD Socket AM5, supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors

Chipset

AMD X870E

Memory

Supports DDR5 memory modules: DDR5 8200(OC) to 4400 MT/s; 4 x DDR5 DIMM sockets, up to 256GB (64GB per DIMM), dual-channel architecture; non-ECC un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory; supports AMD EXPO™ and XMP memory modules

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics and ASMedia USB4® Controller: 2 x USB4® USB Type-C® (3840x2160@240Hz); 1 x HDMI (4096x2160@60Hz, HDMI 2.1); 1 x front HDMI (1920x1080@30Hz, HDMI 1.4); support for up to quad-display

Audio

Realtek® ALC1220 CODEC, high-definition audio, supports 2/4/5.1/7.1-channel configurations, DSD audio, and S/PDIF out

LAN

Realtek® 2.5GbE LAN chip

Wireless Communication

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) and Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1); supports Wi-Fi 6E (2.4/5/6 GHz), Bluetooth 5.4, and 11be 160MHz wireless standard

Expansion Slots

- 1 x PCIe x16 slot (PCIEX16) with CPU integration, supports AMD Ryzen™ 9000/7000 (PCIe 5.0) and Ryzen™ 8000 (PCIe 4.0) processors
- 2 x PCIe x16 slots via Chipset (PCIe 4.0 and PCIe 3.0)

Storage Interface

- 4 x M.2 connectors (CPU-integrated and chipset-integrated, supporting PCIe 5.0 and PCIe 4.0 SSDs)
- 4 x SATA 6Gb/s connectors with RAID 0, 1, 5, 10 support for NVMe and SATA

USB

- 2 x USB4® USB Type-C®
- Multiple USB 3.2 Gen 2 and Gen 1, and USB 2.0/1.1 ports (internal and back panel)

Internal I/O Connectors

24-pin ATX main power, 2 x 8-pin ATX 12V, CPU fan headers, system fan headers, RGB LED headers, M.2 connectors, SATA connectors, front panel headers, USB headers

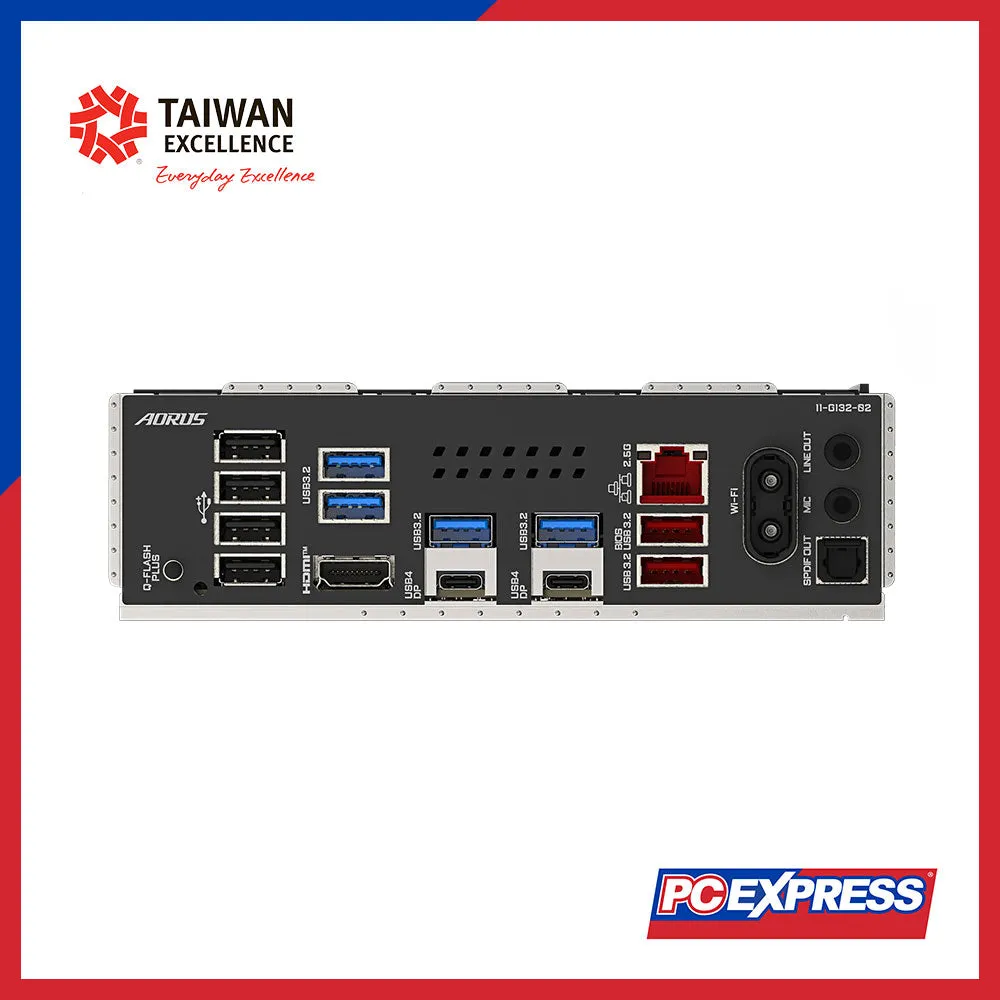

Back Panel Connectors

USB ports, HDMI, RJ-45 port, USB4® USB Type-C® ports, antenna connectors, audio jacks, Q-Flash Plus button

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage, temperature, fan speed detection, water cooling flow rate, noise detection

BIOS

1 x 256 Mbit flash, AMI UEFI BIOS

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton® Internet Security (OEM), LAN bandwidth management software

Operating System

Supports Windows 11 64-bit

Form Factor

ATX; 30.5cm x 24.4cm
