Product Details
＋

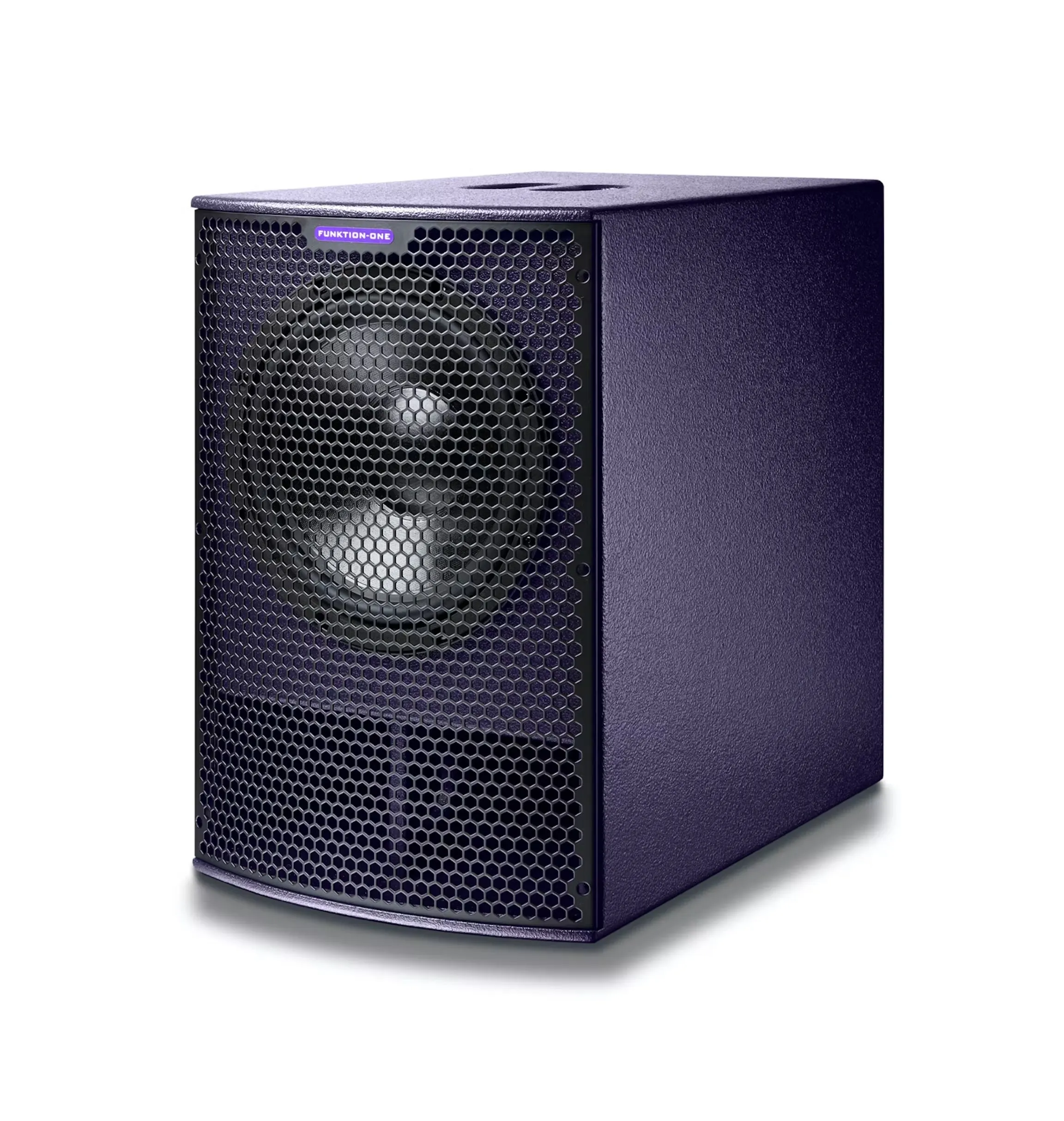

Utilising the same design principles as the SB8, the larger SB10 provides higher output and deeper bass. Perfect for applications where a conventionally sized subwoofer is too large and obtrusive, such as bars, restaurants, retail and galleries. The compact size of the SB10 also makes it suitable for domestic applications, such as a dynamic and precise LFE channel in a home theatre system or as bass extension for the F5.2 or F81.2 in a 2.1 listening or monitoring system.

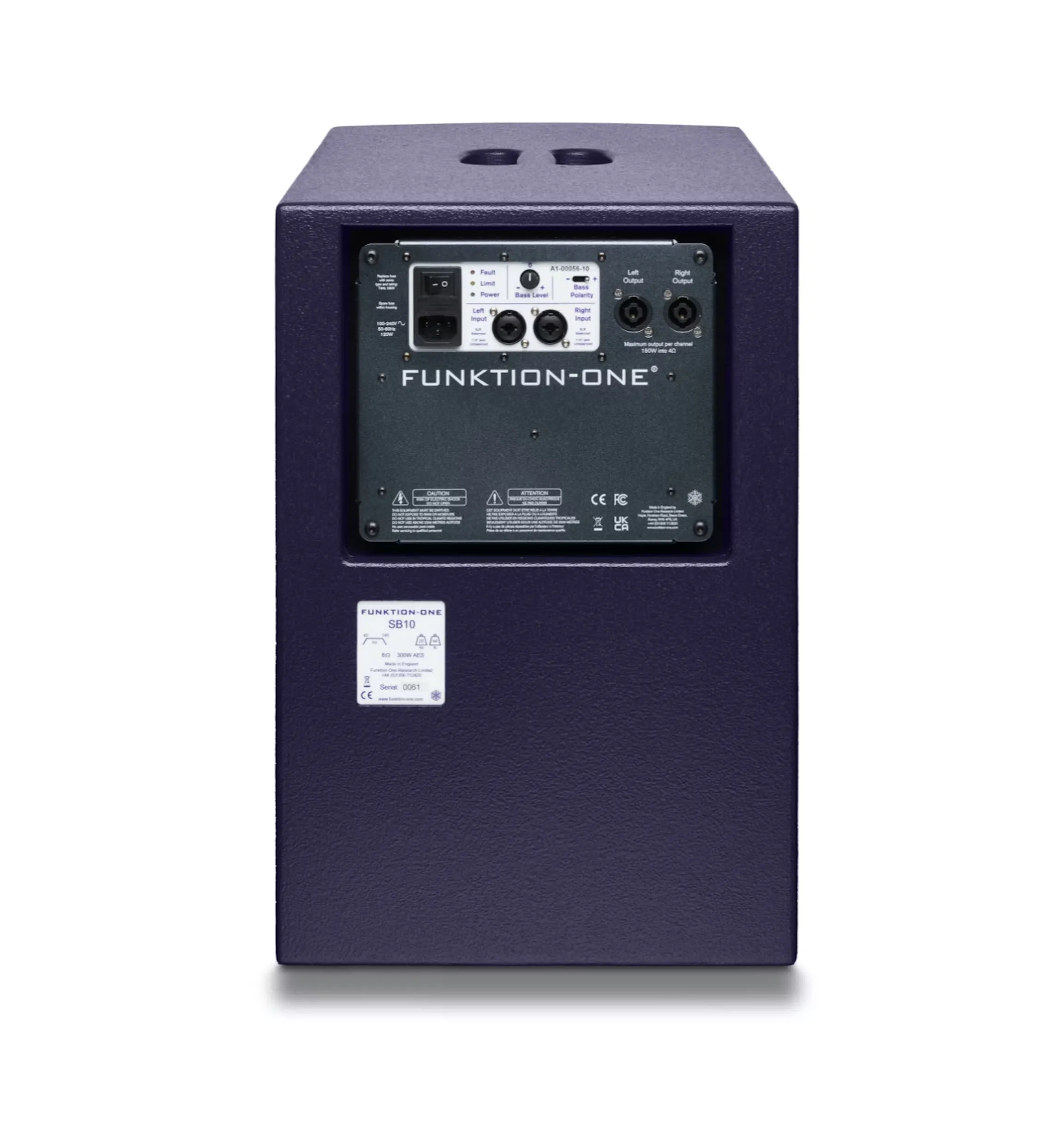

The SB10A version features a three channel amplifier with satellite outputs, fully analogue signal path, and universal (100-240V) power supply.
PERFORMANCE FEATURES
Compact and powerful bass speaker. Passive and self-powered options.
- Self-powered version available (SB10A) with satellite outputs for 2x F81.2
- Bespoke high sensitivity 10” bass driver
- Powerful and convincing bass in a very small package
- No EQ or controller required, only crossover filters
TECHNICAL SPECIFICATION
| DRIVER | 10” |
| OPERATING BAND | 40Hz - 130Hz |
| SENSITIVITY AT 1M | 98dB at 2.8V |
| POWER (AES) |
300W
|
| NOMINAL IMPEDANCE | 8Ω |
| USABLE BANDWIDTH (-3DB) | 45Hz - 300Hz |
| WEIGHT | 19kg (42lbs) |
| NOMINAL DISPERSION | N/A |
| CONNECTORS | 2 x Neutrik NL4 |
