Description

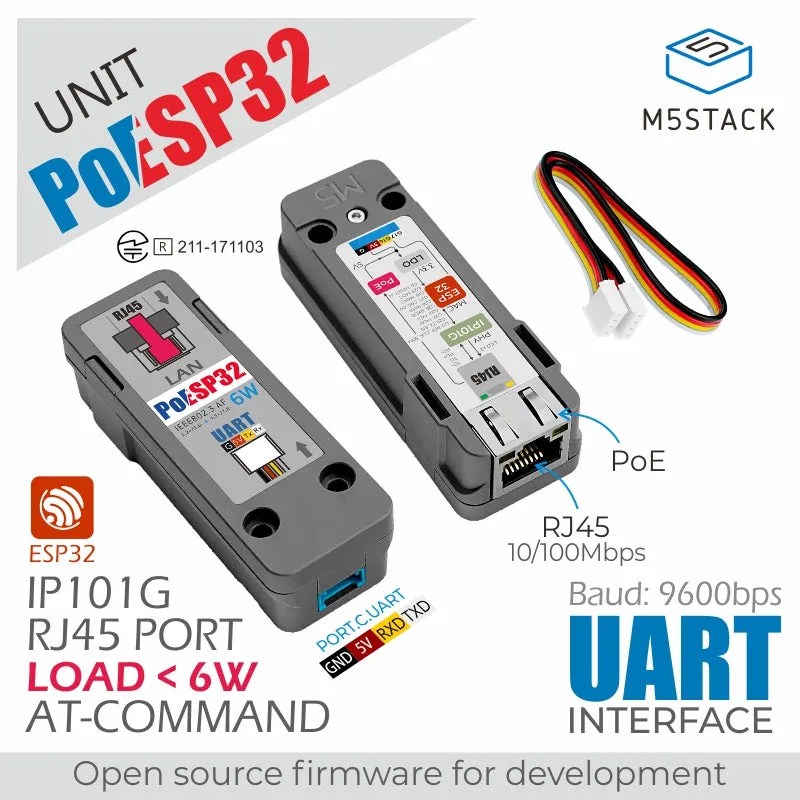

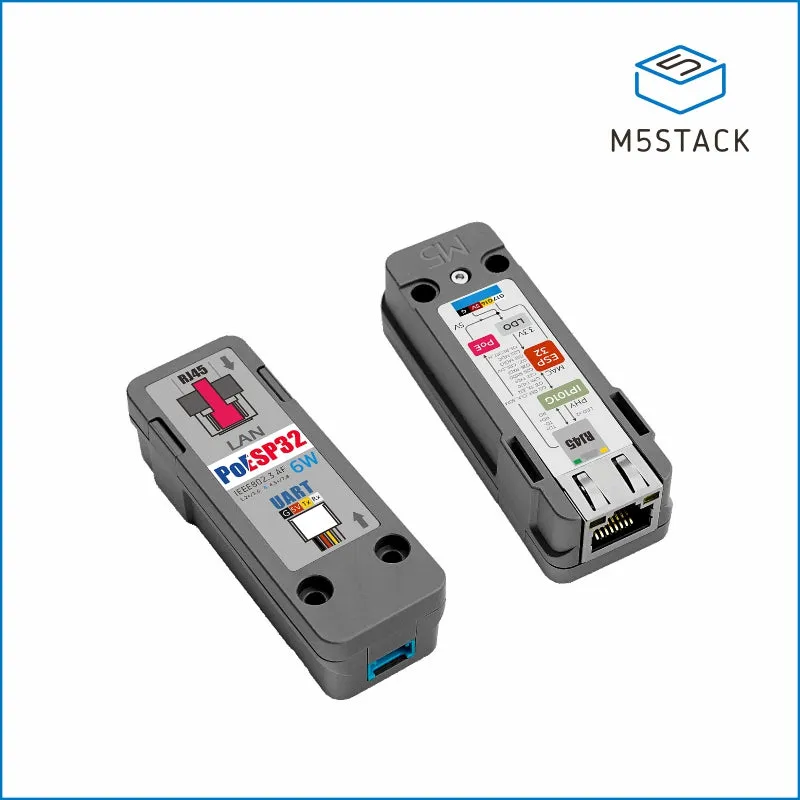

PoESP32 Unit is an Ethernet module that integrates the microcontroller and supports Power over Ethernet (PoE) functionality. It combines the capabilities of the ESP32, a versatile microcontroller with built-in Wi-Fi and Bluetooth, with the IP101G physical layer transceiver.

PoESP32 Unit comes with default firmware using the ESP-AT command set. This firmware enables support for TCP, MQTT, and HTTP protocols, allowing for easy communication and data transmission over the Ethernet connection. By using simple AT commands through the serial port, the module can connect to a server and achieve remote control and data transmission functions.

One of the key features of PoESP32 Unit is its support for Power over Ethernet. This means that it can receive power through the Ethernet cable, eliminating the need for a separate power supply. This simplifies wiring and reduces labor costs, as there is no need to run additional power lines to the module.

Additionally, PoESP32 Unit is designed with secondary development in mind. It provides the necessary interfaces and capabilities for customization and expansion, allowing developers to tailor the module to their specific requirements.

Product Features

Embedded ESP32 main controller
PHY solution:
- Transceiver model IP101G
- IEEE 802.3/802.3u standard
Ethernet Interface.
- PoE standard: PoE IEEE802.3 AF / Support maximum load power 6W

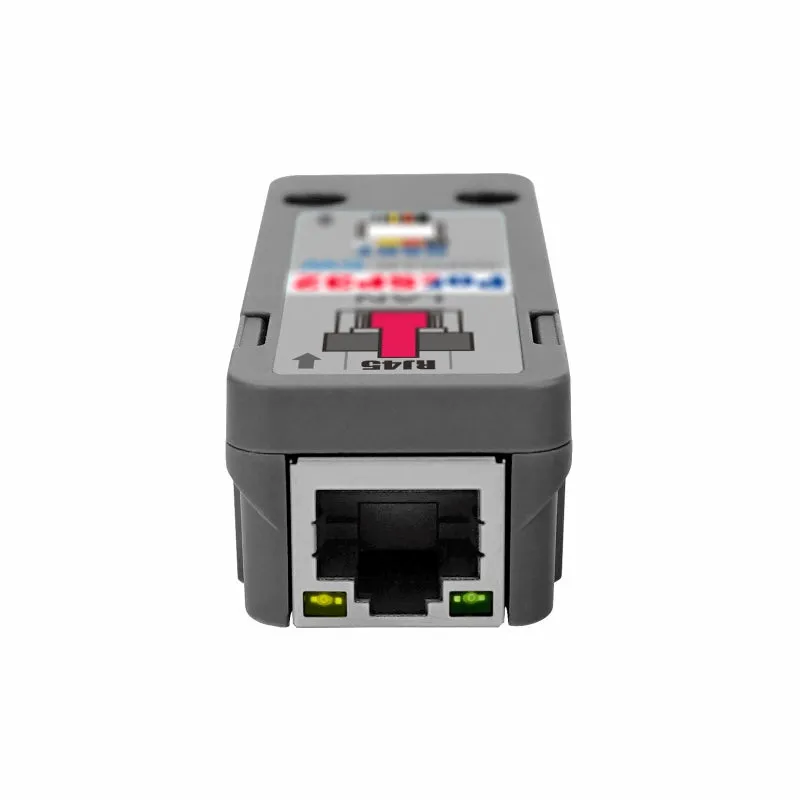

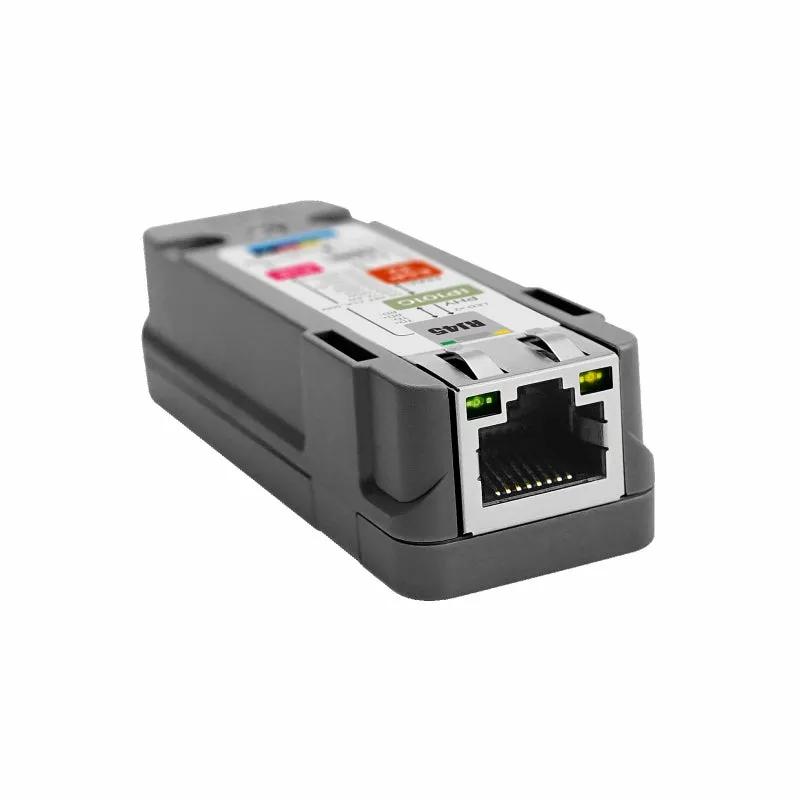

- RJ45 network port 10/100Mbps
Communication / download interface:
- Default firmware is ESP-AT / Support secondary development to implement TCP Client/HTTP/CoAP and other protocols
- Programmable / support secondary development, reserve program download interface
Power supply.

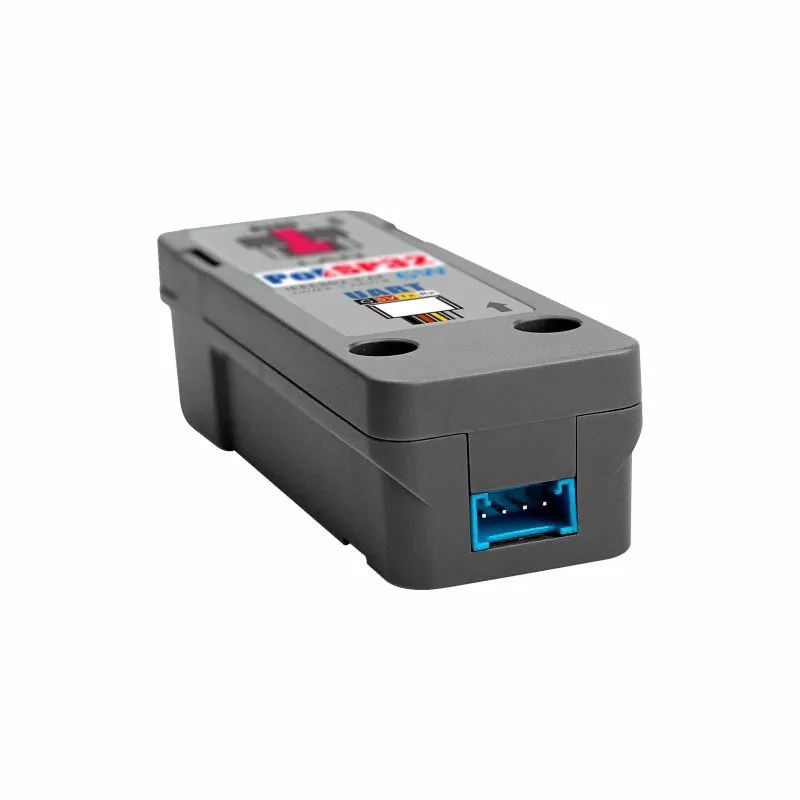

- HY2.0-4P interface 5V DC power supply
- PoE power supply (PoE IEEE802.3 AF)
Development method.
- AT command, UART: 9600bps default
- Development Platform: UIFlow(coming soon), Arduino, ESP-IDF

Included

1x UNIT PoESP32
1x HY2.0-4P Cable (20cm)
1x Instruction manual

Applications

Ethernet Controller
TCP Client data passthrough

Specification

Specifications	Parameters
ESP32-WROOM-32U	240MHz dual core, 600 DMIPS, 520KB SRAM (without integrated 3D antenna, does not support WiFi&BLE wireless function)
Flash	4MB
PHY	IP101G: IEEE 802.3/802.3u

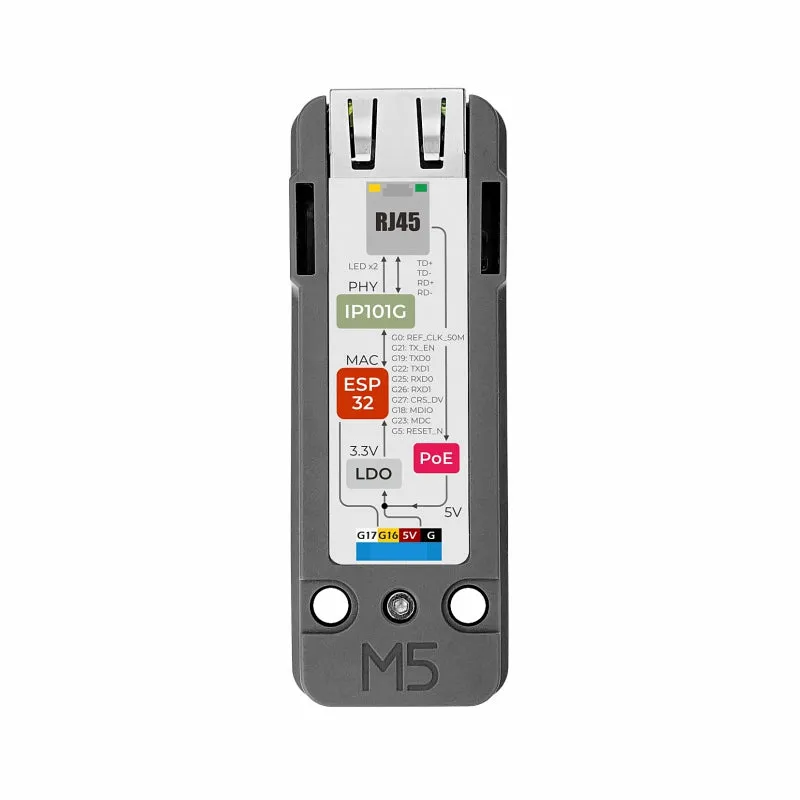

MAC-PHY Interface Type	RMII
PoE Specifications	PoE IEEE802.3 AF Specifications / Maximum Power 6W / Voltage DC 37-57V
Ethernet Interface Specifications	RJ45 10/100Mbps
Reserved interface	1x HY2.0-4P interface, 1x program download interface
Communication interface	UART 9600bps 8N1 AT command control
Communication logic level	3.3V
Net Weight	26.2g
Gross Weight	32.8g

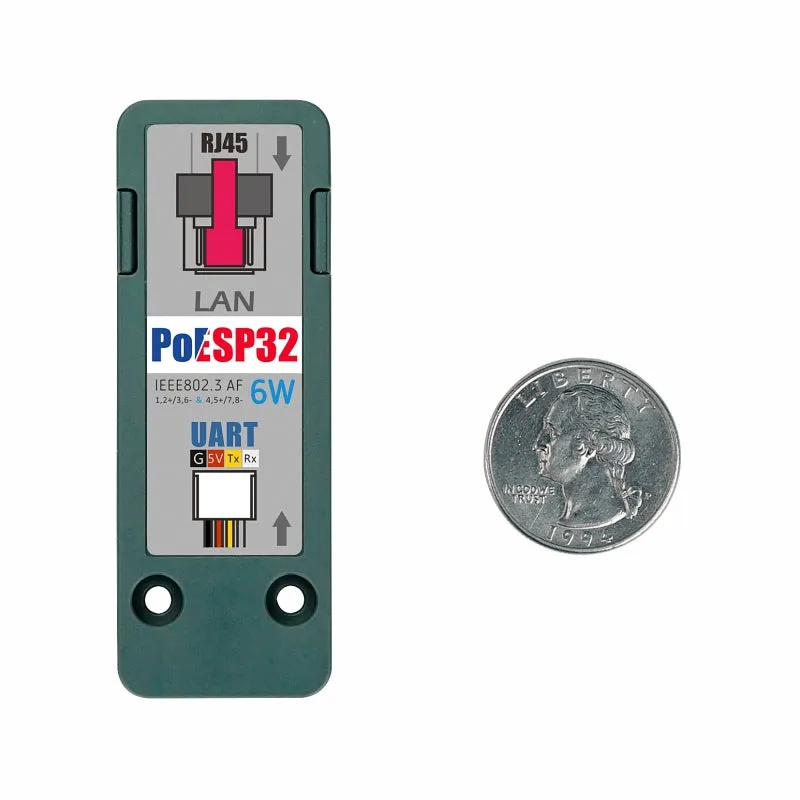

Product size	72 * 26 * 19.2mm
Packing Size	75 * 36 * 20.5mm
