SPECIFICATIONS
Brand Name: IFLIGHT
Compatible Drone Brand: GoPro
Origin: Mainland China
Size: 8inch
Weight: 3.5kg
Model Number: Centurion X8 HD
Package: Yes

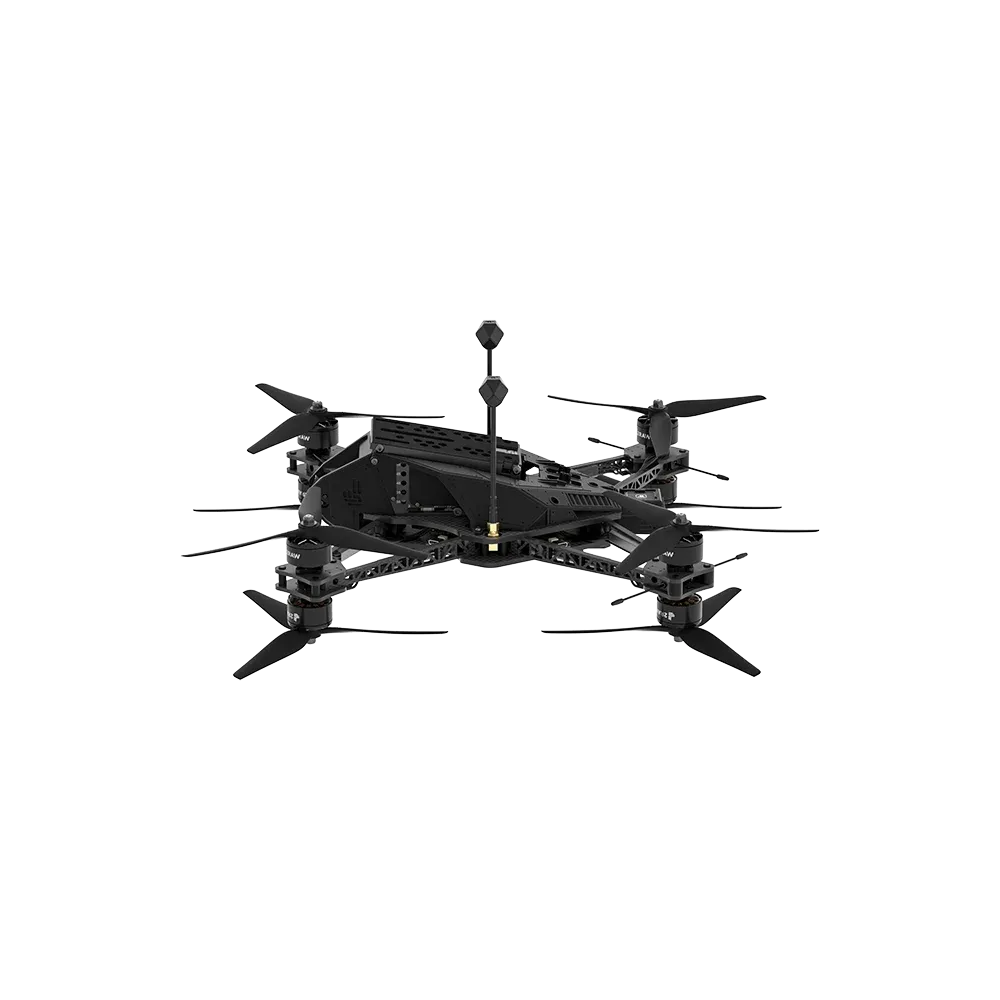

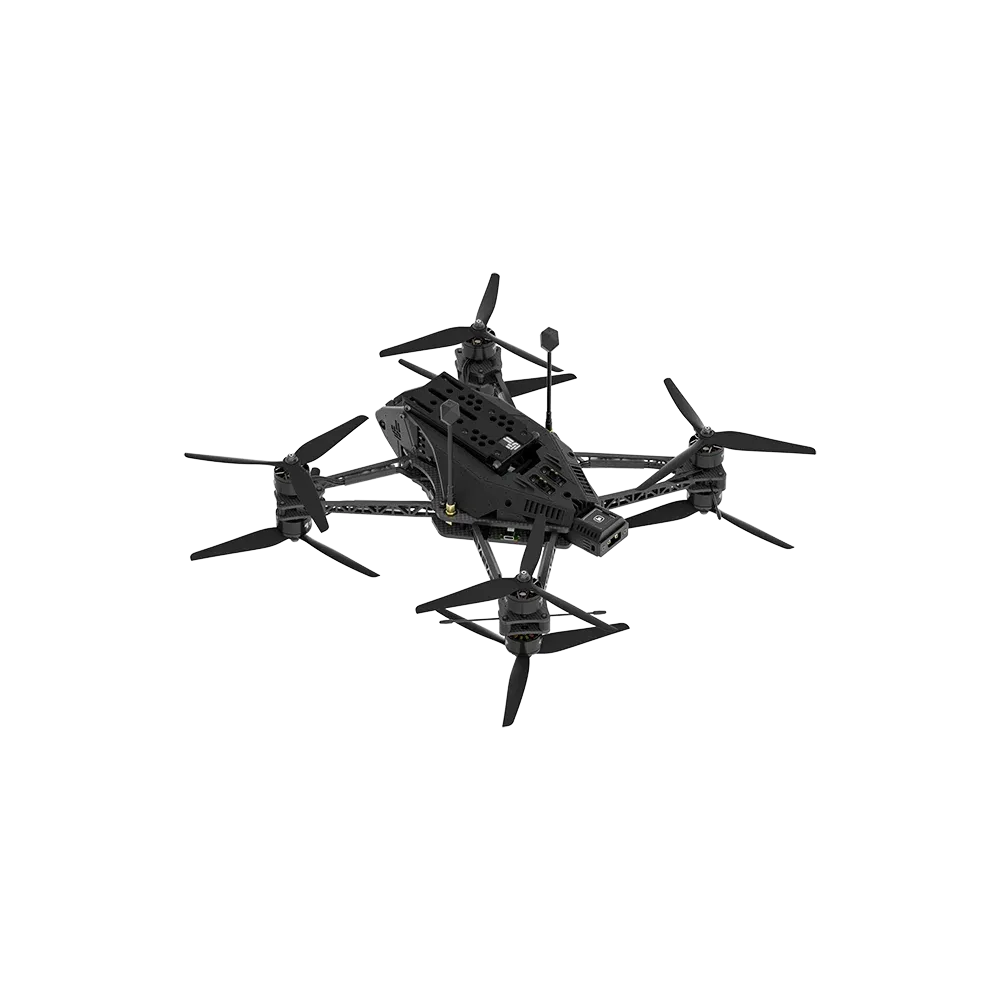

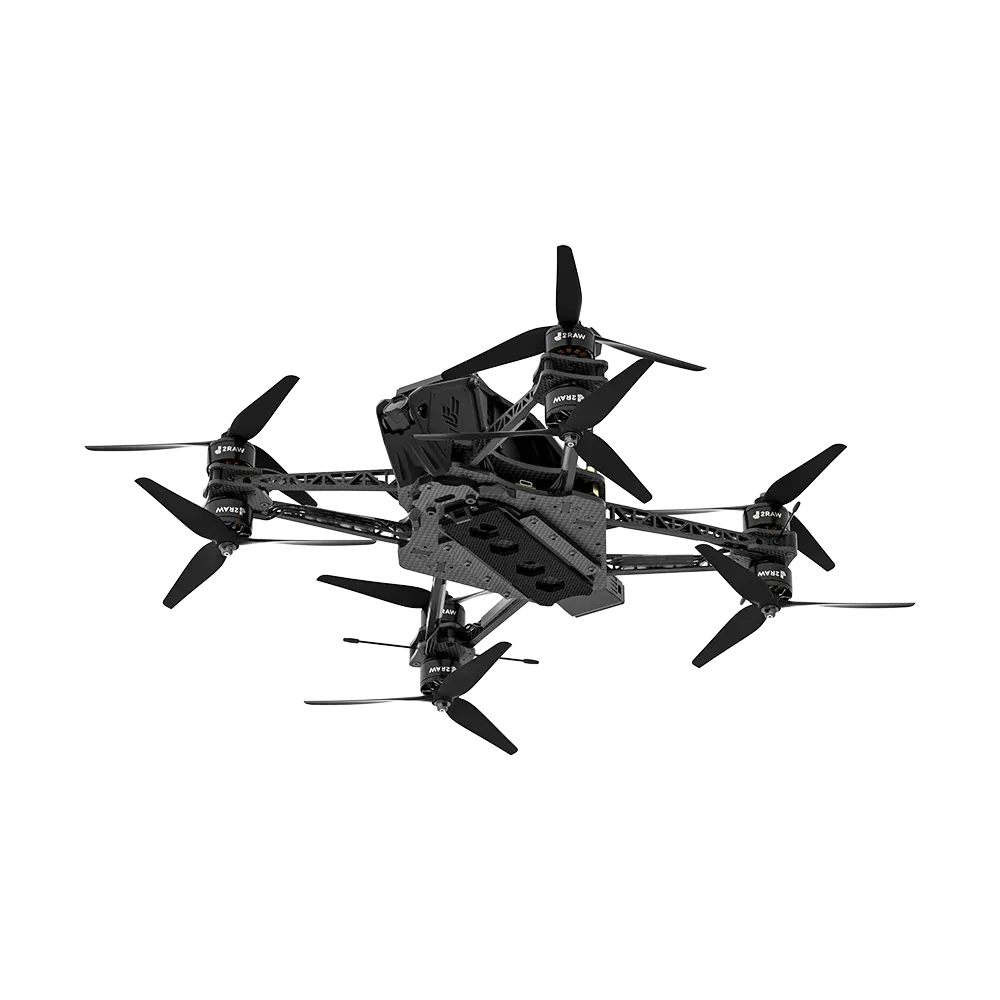

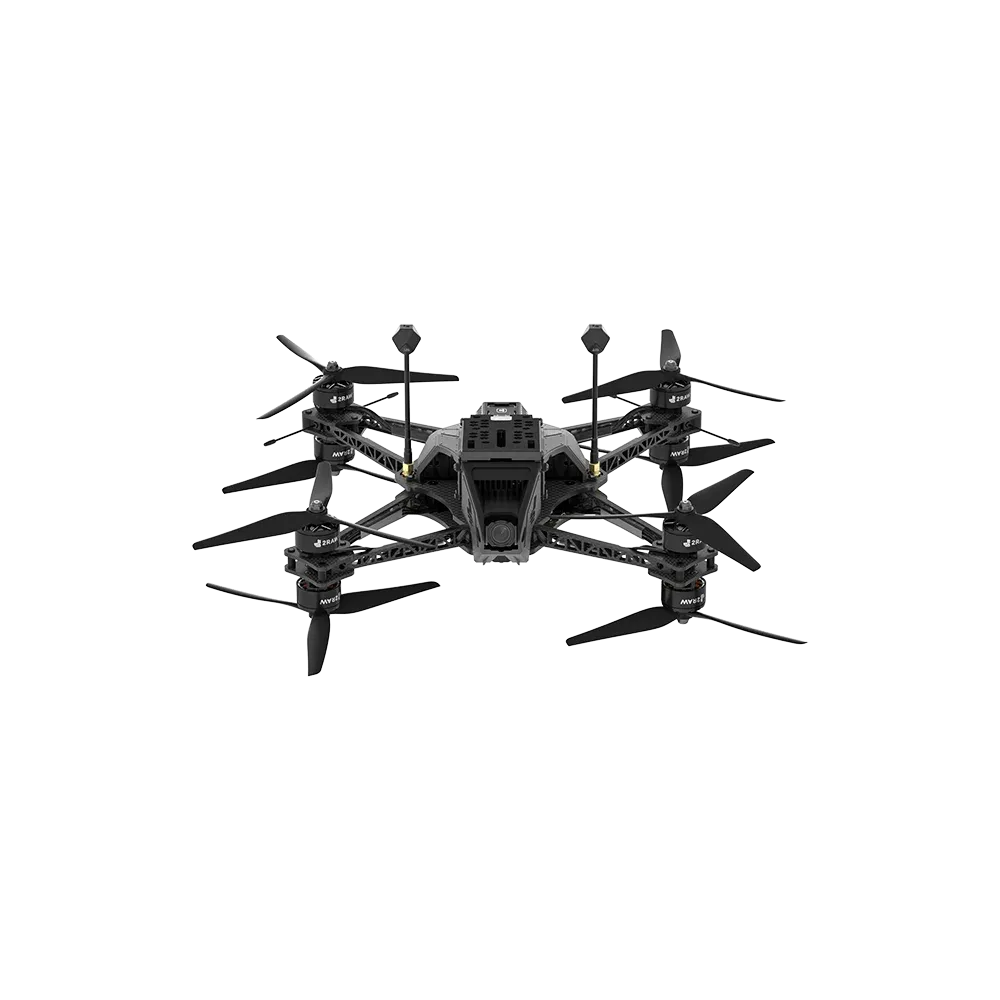

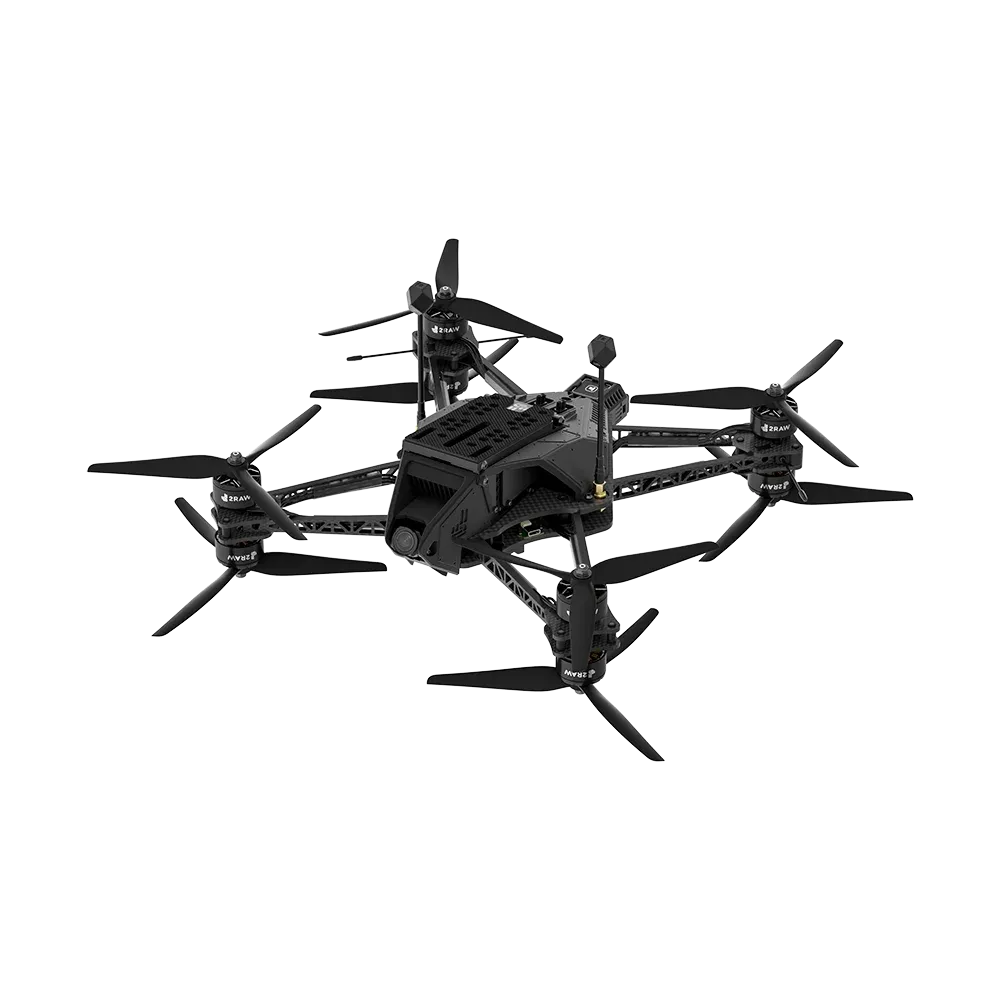

Centurion - The cinelifter by 2RAW and iFlight
Centurion is the first cinelifter to be equipped with tailor made electronics, from motors to a unique Thunder 8 in 1 ESC with exceptional filtering, combine this with the ultra powerful processing of the 2RAW Thunder H7 Flight controller allows for an unrivaled performance from a 6s craft. Centurion is also equipped with the latest generation of GPS chips with a larger than normal antenna allowing for you to receive more satellites faster and with more precision.
HIGHLIGHTS:
Advanced Truss Arms
The A-frame designed combine with the trusses ensure great stiffness while keeping the weight down delivering exceptional results
Innovative Camera Mount
Centurions' unique camera mount is unique to other mounts on the market, with 10-50 degree viewing angles. The mount is formed from 7075 aero grade aluminum, raised up to remove props from view, but most importantly it is supported on both the horizontal and vertical axis to reduce payload resonances. As the camera angle increases for more speed so does the amount of support the mount provides.
AeroShell
The aeroshell doesn't only make Centurion look unique but was engineered with the help of PHD students to control the airflow around the body and within the drone. Air comes in via the intakes to cool the ESC and is pushed out via rear exhausts. As the speed of the drone increases the aeroshell acts as an air divider, preventing air from hitting the flat top plate. The shell also helps to prevent dirt from getting into the electronics
Thermal Cooling
The shell is designed to allow air to flow directly across your electronics keeping them call at all times, Further to this the O3 Air Unit has a Aluminium heatsink and fan installed on top of it to prevent overheating even in the hottest of deserts, for peace of mind.
Quick Release Battery System
The Centurion is equipped with a seamless quick release battery system for maximum efficiency when in stressful filming environments. Unlike other crafts on the market, it utilizes battery straps and carbon plates, not tying your batteries down to individual craft. The battery swap system allows you to change the battery in a matter of seconds letting you get back up in the air faster.
Specifications:
Product Name: Centurion 8 O3 6S HD
FC: 2RAW H743 Flight Controller
ESC: 2RAW 80A 8-IN-1 ESC
Video Transmission: DJI O3 Air Unit
Frame: 384mm wheelbase
Motor: XING2 2812 1150KV motors
Prop: GEMFAN 8060 propellers
Weight: 1612g (Without Battery)
Dimensions (L×W×H)：272×272×96mm
Max Speed: 160km/h
Maximum Takeoff Altitude: 7000m
Max Hover Time: Approx. 6mins with 6S Lipo 5600mAh battery
Max Cruising Time: Approx. 5mins with 6S Lipo 5600mAh battery
Max Wind Speed Resistance: Level 8
Operating Temperature Range: -10° to 40° C
Antennas: Dual Antennas
GNSS: GPS SBAS Galileo QZSS Glonass
Video Transmission
Product Name: DJI O3 Air Unit
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency：2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
