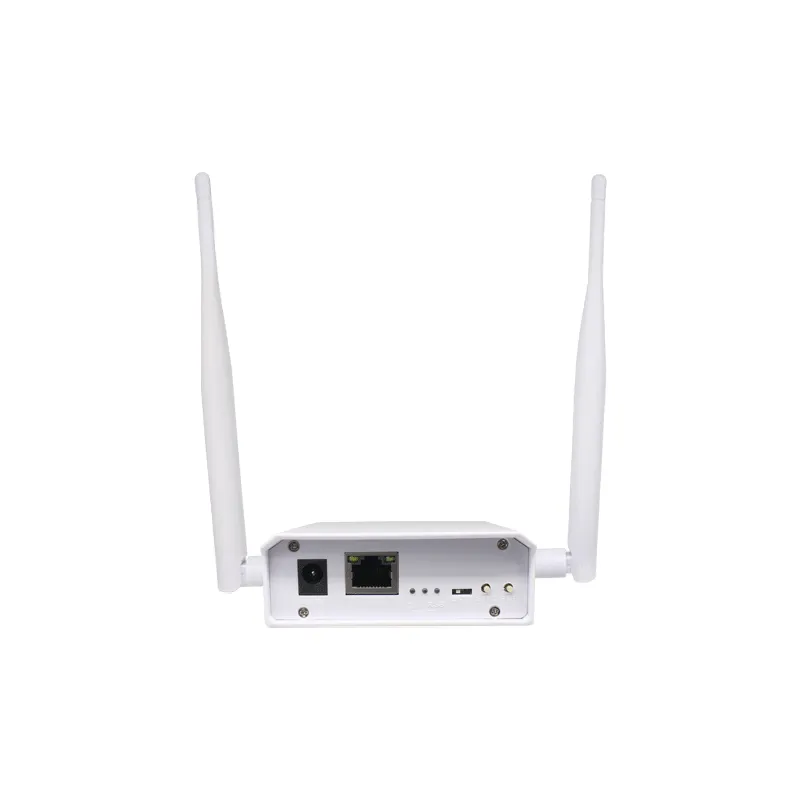

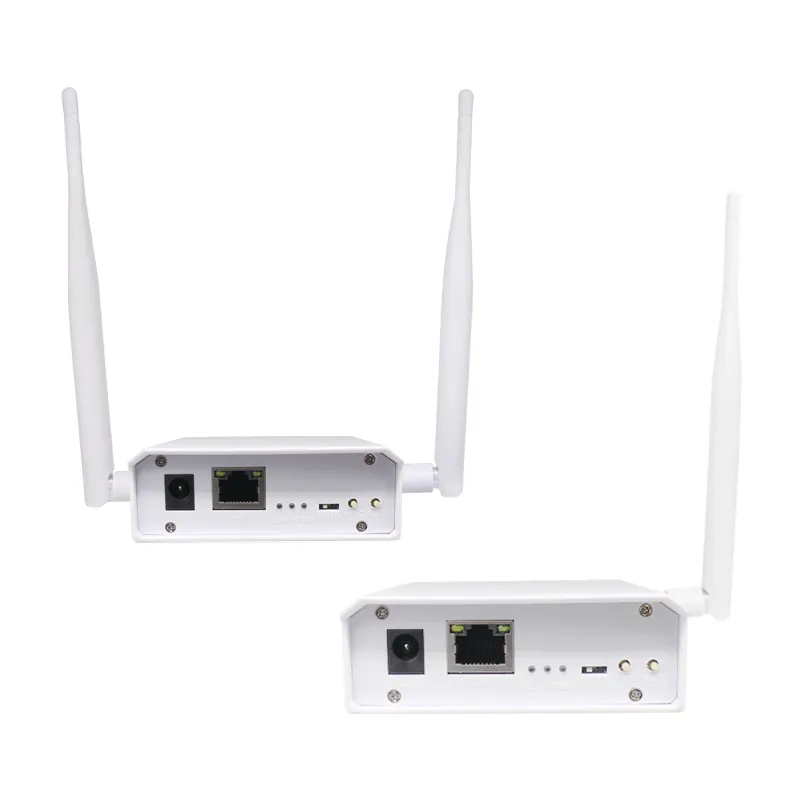

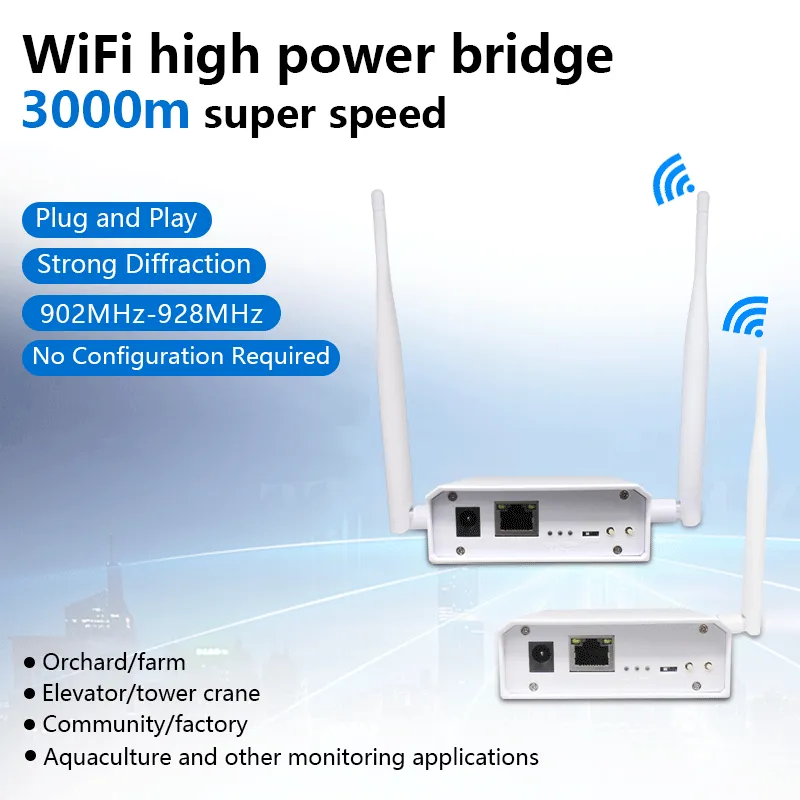

WiFi HaLow Wireless Bridge Extender Enhanced Edition

frequency setting instructions

Notice：We provide 1 frequencies USA: 902-928MHz  We will send the wifi Halow Bridge with the corresponding frequency according to the country/region where the customer orders. If you have special frequencies, please contact us

Category	Parameter	Description
Wireless performance	Communication protocol	IEEE 802.11ah
	Frequency range	902MHz-928MHz
	Communication bandwidth	8MHz
	Data rate	Maximum 16Mbps
	Receiver sensitivity	1M PPDU MCS=10-105dbm 8M PPDU MCS=0 -95dbm 8M PPDU MCS=7 -81db

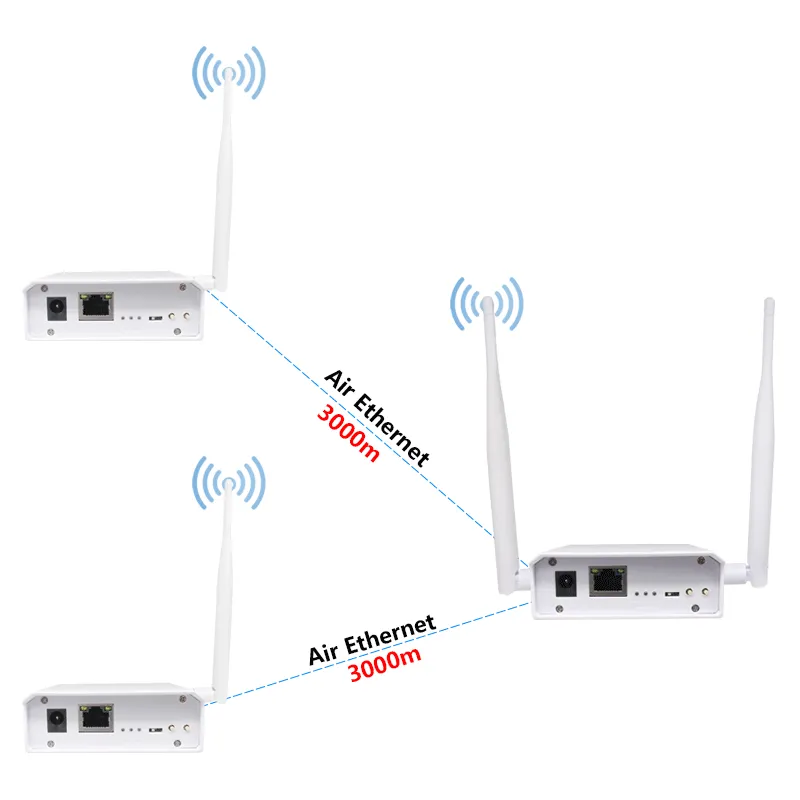

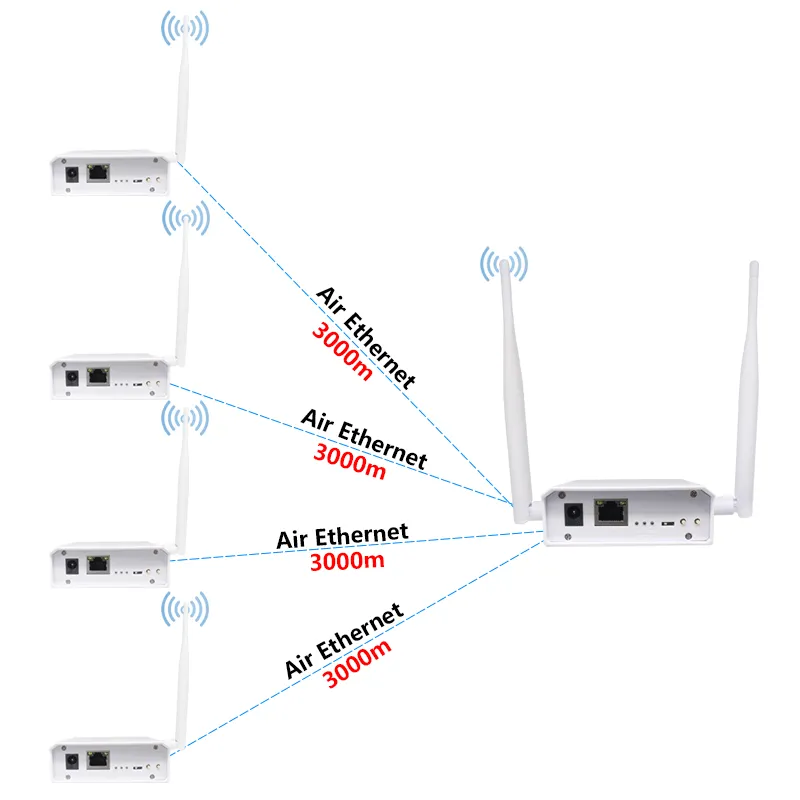

	Number ofnetwork nodes	supported Up to 31 access points
	Transmit power	33dBm 2W
	Debugging method	BPSK,QPSK,QAM16 or QAM64

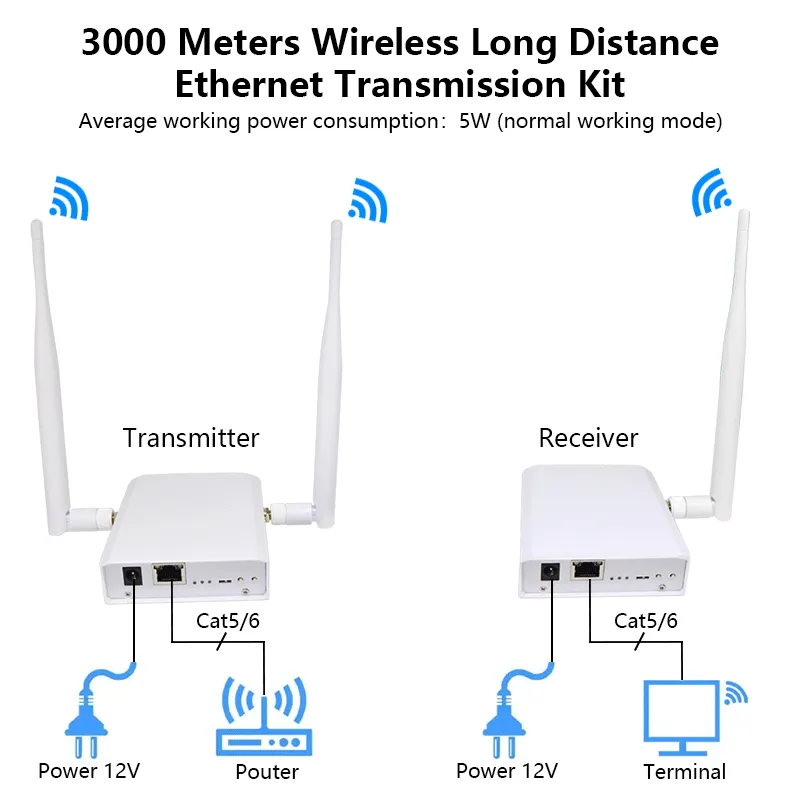

	Transmission distance	3km line of sight (5Mbps rate) 300m non-line of sight
	Security specification	WPA2-PSK
	Encryption method	AES
Hardware	Network port	10/100Mbps
	Power supply	DC12V/1A
	LED light indication	Power indicator Mode indicator Connection indicator
	Antenna interface	SMA external thread inner hole
Electrical performance	Inputvoltage	12V1A
	Maximum current	0.6A/12V(full time slot constant transmission)
	Average power consumption	5W(normal working mode)
	Operating temperature	-20℃~70℃
	Storage temperature	-30℃~80℃
	Operating humidity	10%~90%
	Storage humidity	5%~95%
Antenna	Specifications	External 2db omnidirectional antenna
	Length	19cm

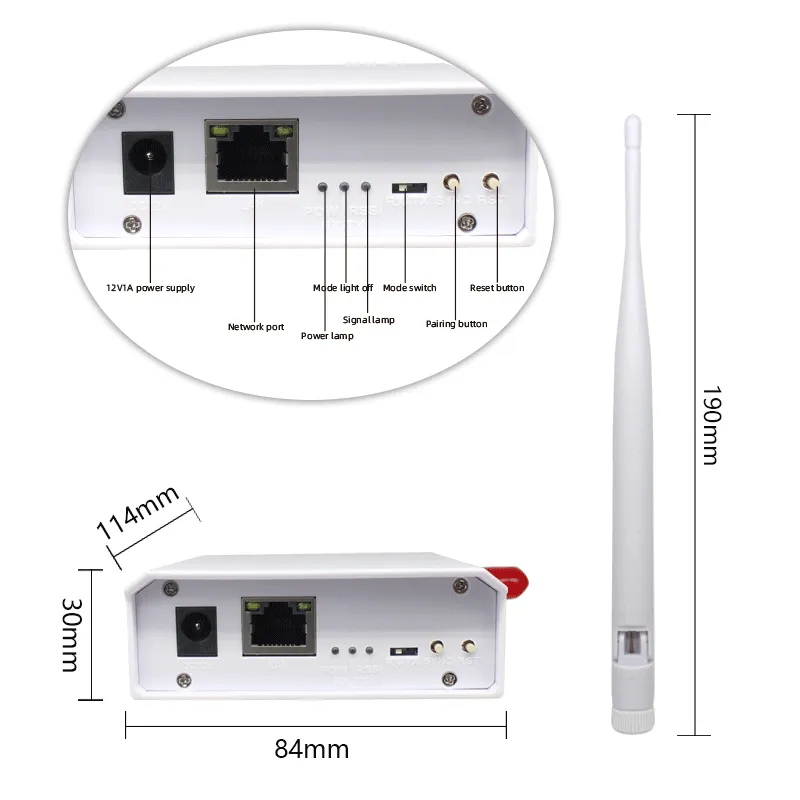

Size	Product size	114x84x30mm(excluding antenna)
	Product size	105g

Anjielo WiFi HaLow Wireless Bridge Extender Enhanced Edition for 3km Long Distance Powerful High Gain 2.4&IEEE 802.11ah Antenna Wifi Range Transmission Faster Speed and Stronger Penetration
