Name: 4Ch Weatherproof Dvr Wphd4A
SKU: 588739

Product Details ＋

4CH WEATHERPROOF DVR WPHD4A

NEMA rated outdoor enclosure with fan and thermostat
Full featured H.264 compression DVR for extended record time and faster network transmission
6-outlet power strip for 24V devices like heated housings or PTZ’s
The mounting brackets allow for flush or pole mounting
2.4 Ghz wireless bridge for transmitting distances up to 1.5 miles over wireless LAN

OVERVIEW

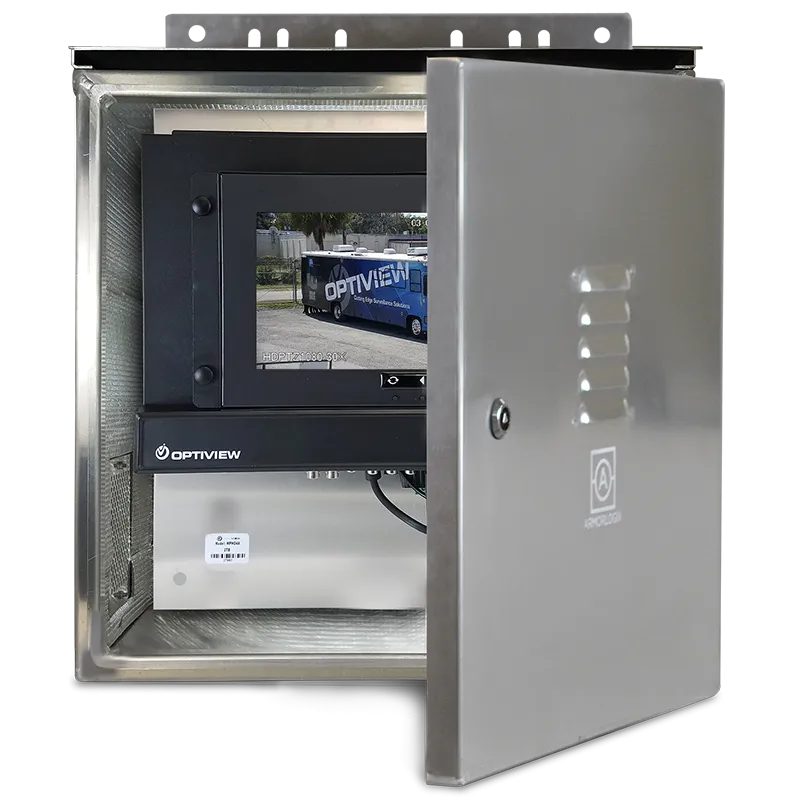

4 Channel, self-contained HD weatherproof DVR packaged inside AL191912N3 for remote site recording. Package includes PWR98A power supply, LED monitor, 4ch HD DVR from Optiview with 4TB storage, and universal mounting brackets for wall or pole mounting.

SPECIFICATIONS

Material		5052 Aluminum
Color		Silver/Metallic
Power Supply		9ch 12VDC, 8amp
Voltage		120V AC (Power Strip)
Mounting Plate Material		Aluminum
Mounting Plate Dimensions		17" × 16" (431.8mm × 406.4mm)
Weight (Enclosure Only)		41 lbs
Outside Dimensions		19" × 19" × 12" (482.6mm × 482.6mm × 304.8mm)
Cable Feed		1.2" Cable Conduit Connector
Ratings		NEMA Type 3
