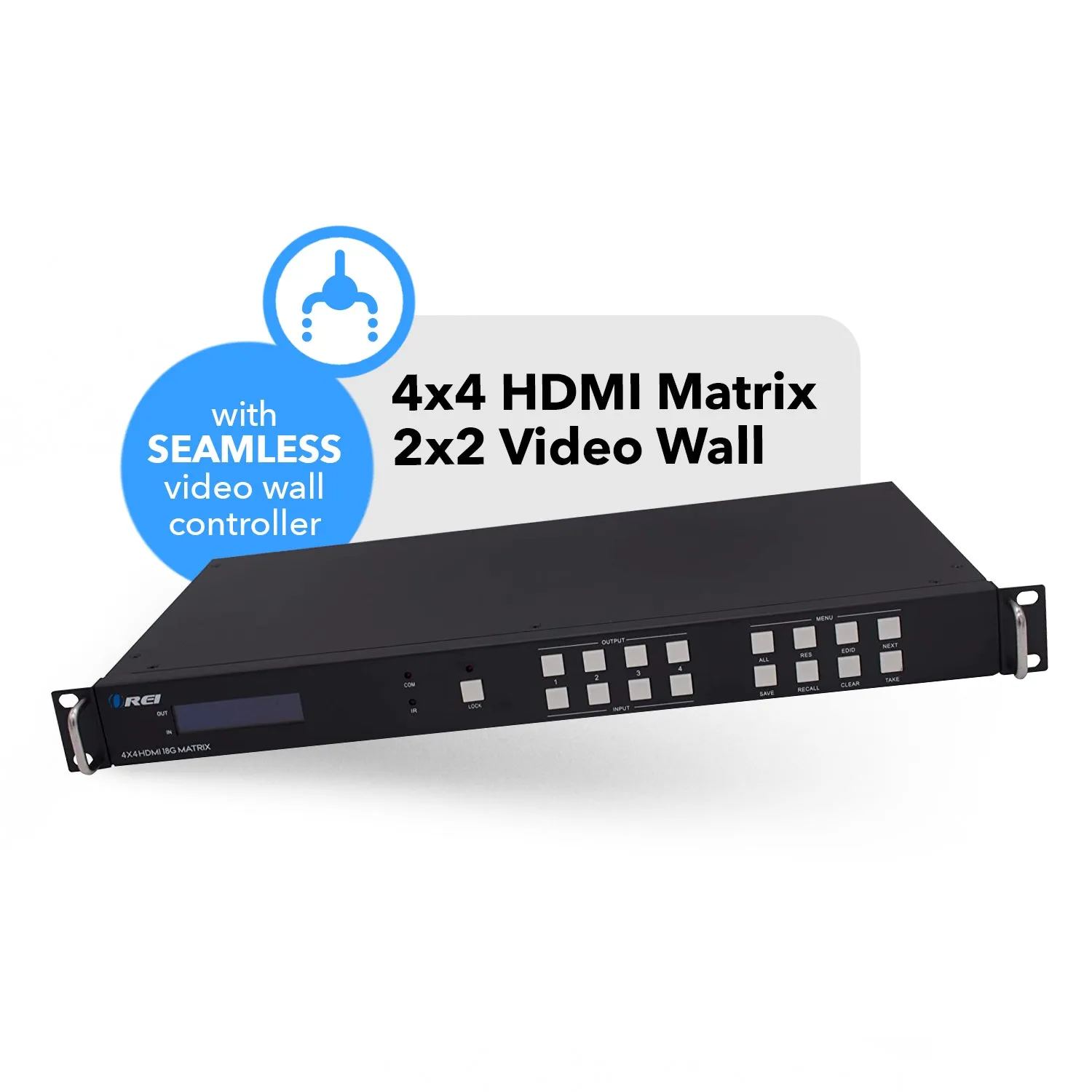

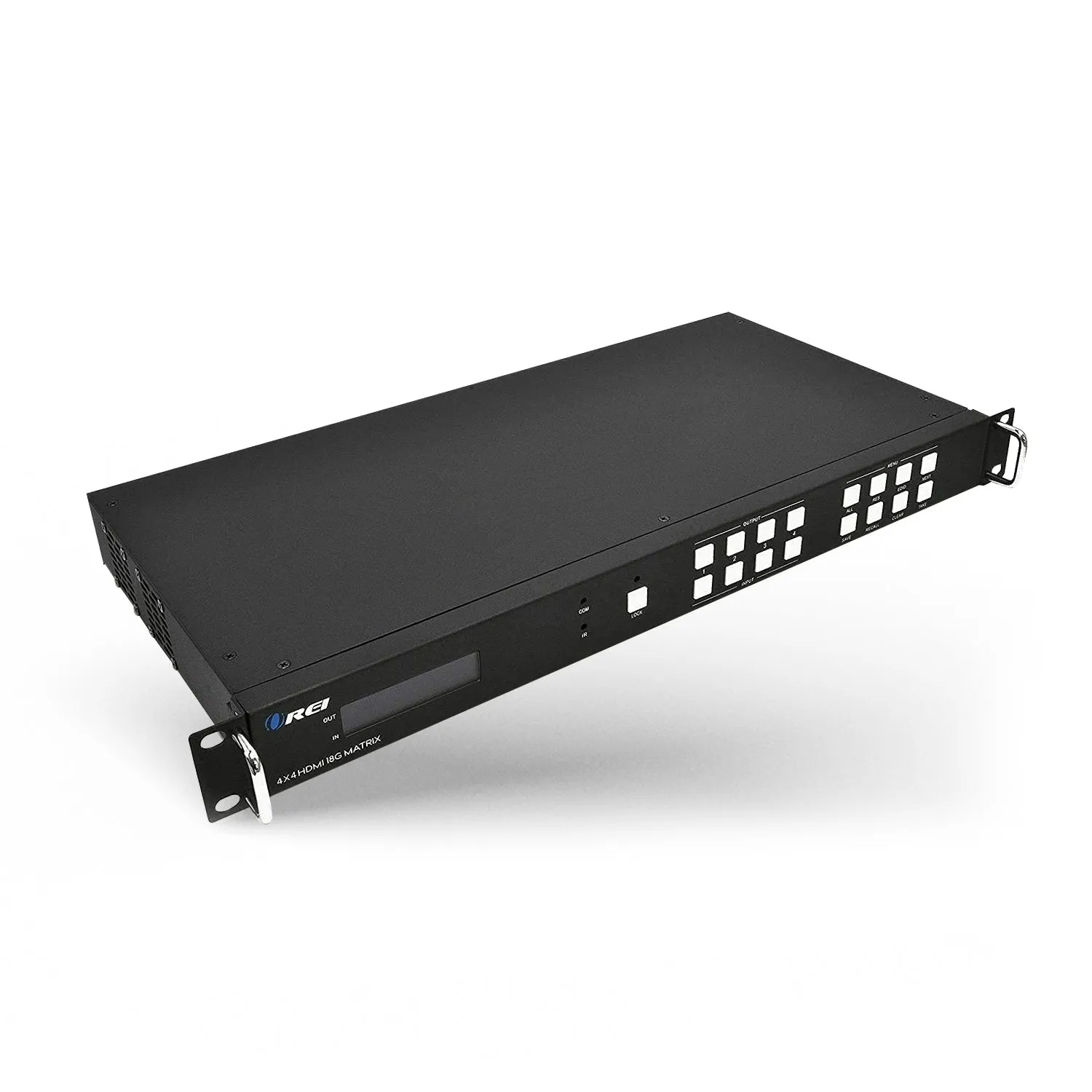

UHD-404VW: 4x4 Matrix with Video Wall controller
Key Features:
- HDMI 2.0 and HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2k@60Hz
- 18Gbps video bandwidth
- Various display modes: 2x2, 1x2, 1x3, or 1x4
- Bezel adjustment and 180-degree rotation
- IR and Audio matrixing
- RS-232 & TCP/IP control
- Scene saving and recalling up to 8 scenes

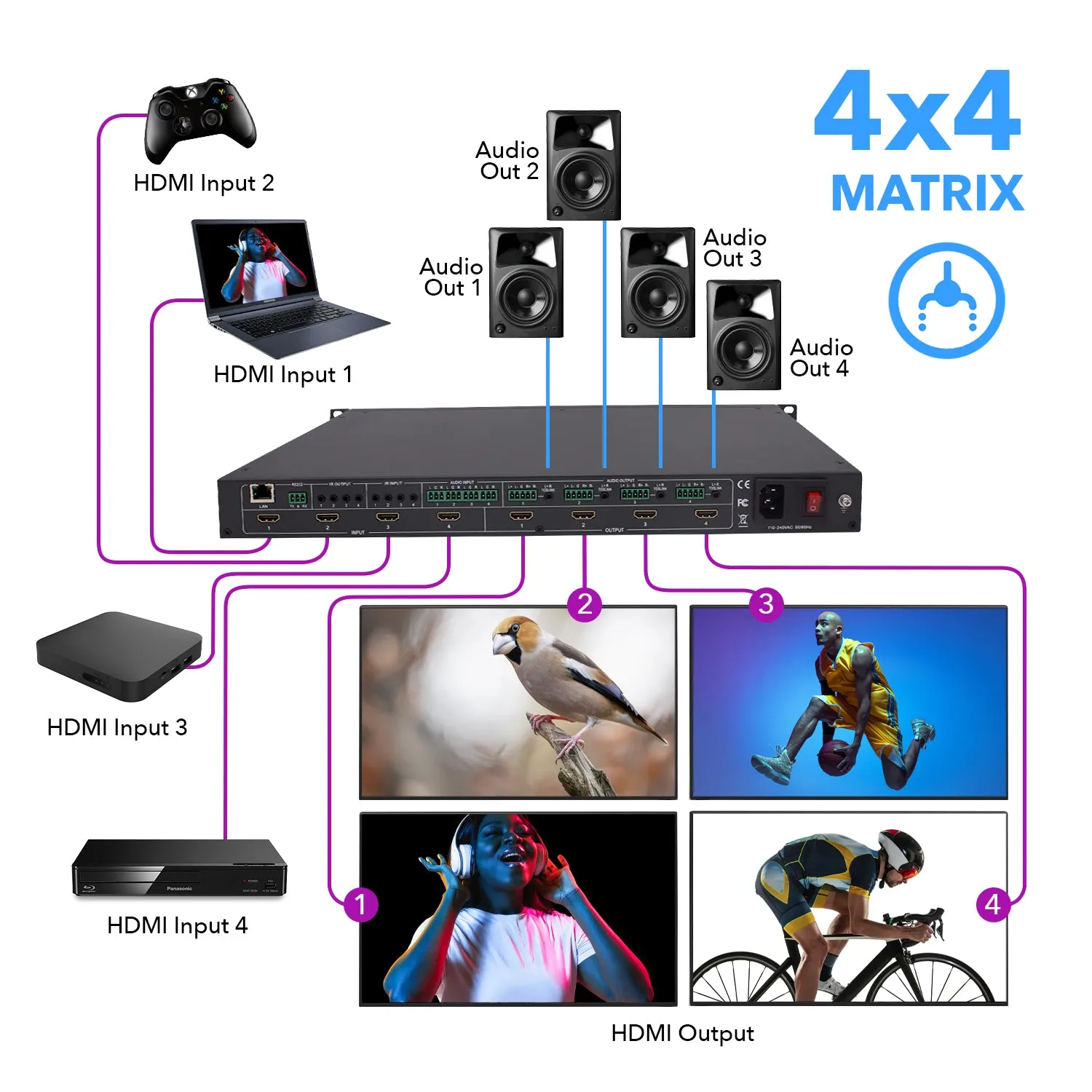

The UHD-404VW stands as a 4x4 Matrix with an embedded video wall feature. It supports video resolutions up to 4K@60hz and 2k@60Hz complies with HDMI 2.0 & HDCP 2.2 standards, boasting an 18Gbps video bandwidth. Doubling as both a conventional 4x4 matrix and a video wall controller, it incorporates IR and audio matrixing. Efficient control is ensured through RS-232 or TCP/IP connections using the provided software or WebGUI. Enjoy additional perks like 180-degree rotation for the top two displays in 2x2 mode and bezel adjustment. Perfectly suited for concerts, events, and a variety of commercial or home setups.
[shortdes]
-

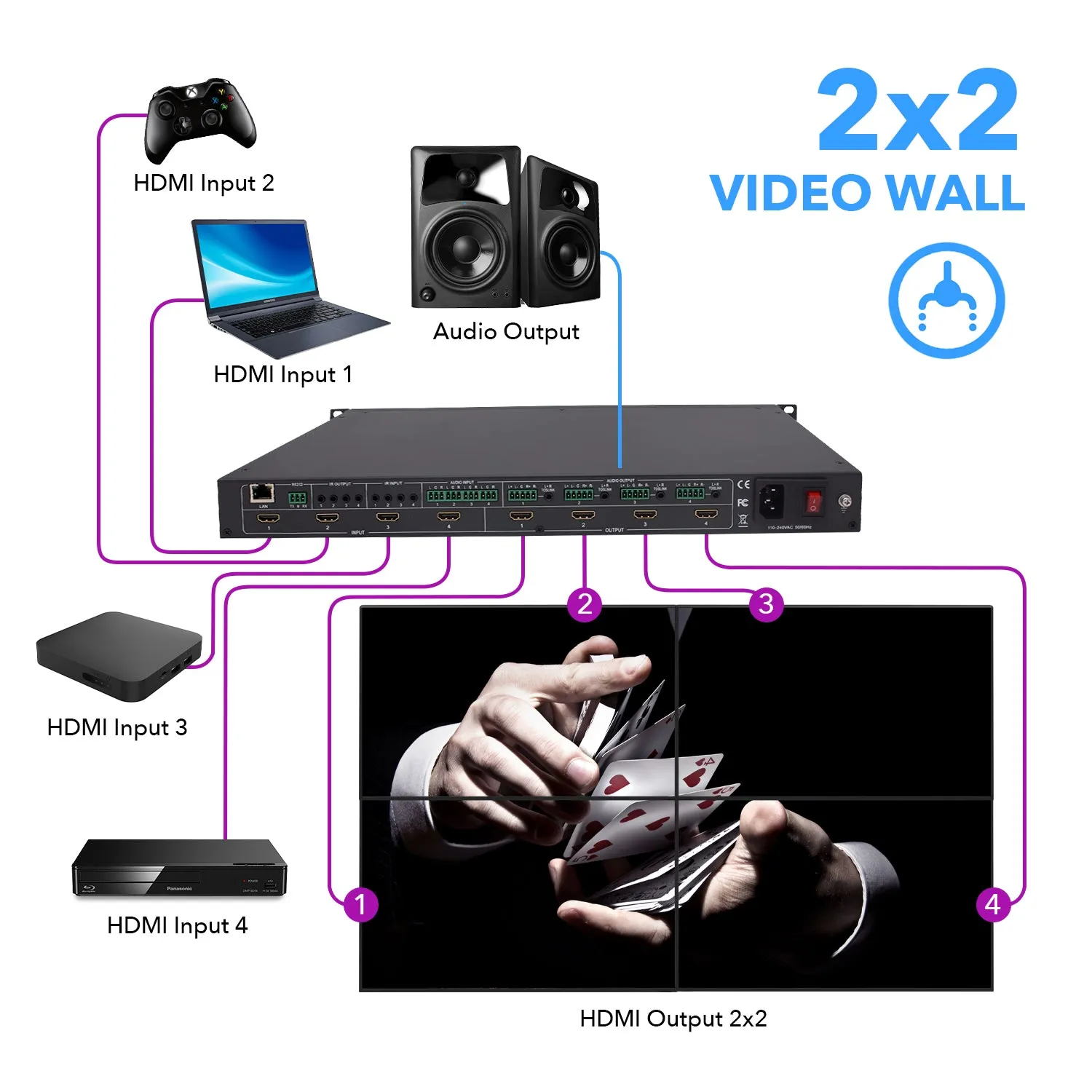

2x2 Video wall controller
-
Video resolutions up to 4K@60Hz and 2k@60Hz
-
IR matrixing and audio matrixing
[/shortdes]
[tab]

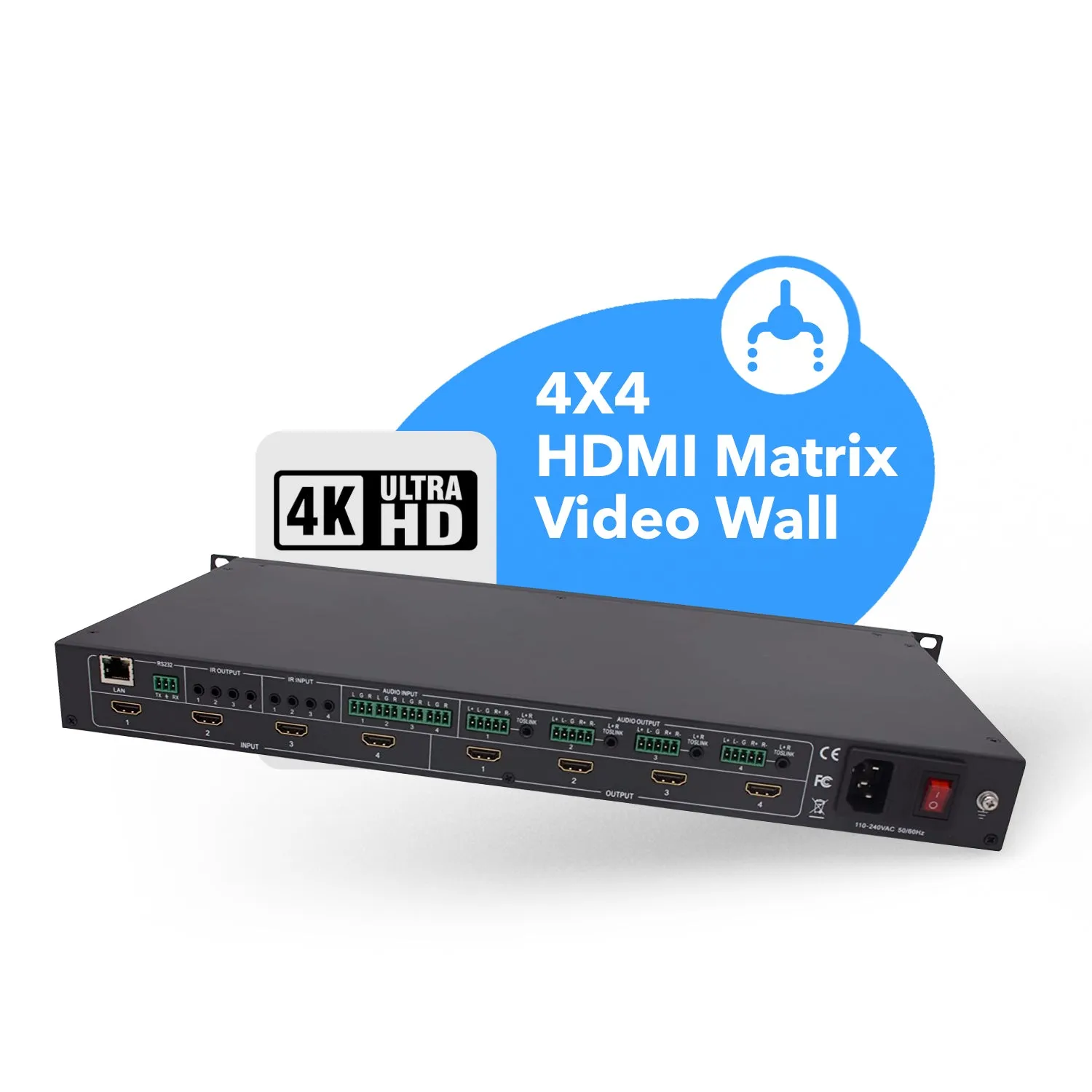

CONNECTIVITY
| INPUT: |
4 × HDMI [Type A, 19-pin female] |
|
|
4 × L/R [3-pin phoenix] |
|
| OUTPUT: |
4 × HDMI [Type A, 19-pin female] |
|
|
4 × L/R [5-pin phoenix] |
|
|
4 × L/R Toslink [mini Toslink] |
|
| CONTROL: |
1 x LAN [RJ45, 8-pin, female] |
|
|
4 × IR IN [3.5mm Stereo Mini-jack] |
|
|
4 × IR OUT [3.5mm Stereo Mini-jack] |
|
|
1 × RS-232 [3-pin Phoenix connector] |
|
PACKAGE CONTENTS
| 1x UHD-404VW |
| 4x IR Receiver Cable |
| 4x IR Blaster Cable |
| 1x Remote |
| 1x 3-Pin Phoenix connector |
| 1x AC Power cord |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/ 2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18 Gbps |
| Video Resolutions: |
Up to 4K@60Hz, 2k@60Hz |
ADDITIONAL FEATURES
| CEC: |
Yes |
| ARC: |
No |
| USB KVM: |
No |
| PoC/PoE: |
No |
| IR Control: |
Yes |
| Downmix: |
No |
| Downscale: |
No |
| Over IP: |
No |
| HDBaseT: |
No |
| RS-232: |
Yes |
LOOP-OUT / LOCAL PORTS
| Has loop out port: |
No |
| Number of Loop out ports: |
0 |
AUDIO SUPPORT
| HDMI Audio Formats: |
PCM 2.0
|
| 3.5mm Analog Audio Formats: |
PCM 2.0 |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
60W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
DIMENSIONS & WEIGHT
| Length:
|
430mm / 16.93in |
|
| Width: |
220mm / 8.66in |
|
| Height:
|
44mm / 1.73in |
|
| Weight:
|
5kg / 11.02lbs |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
